Ender 3 S1 EZABL Z Endstop Cable Connection

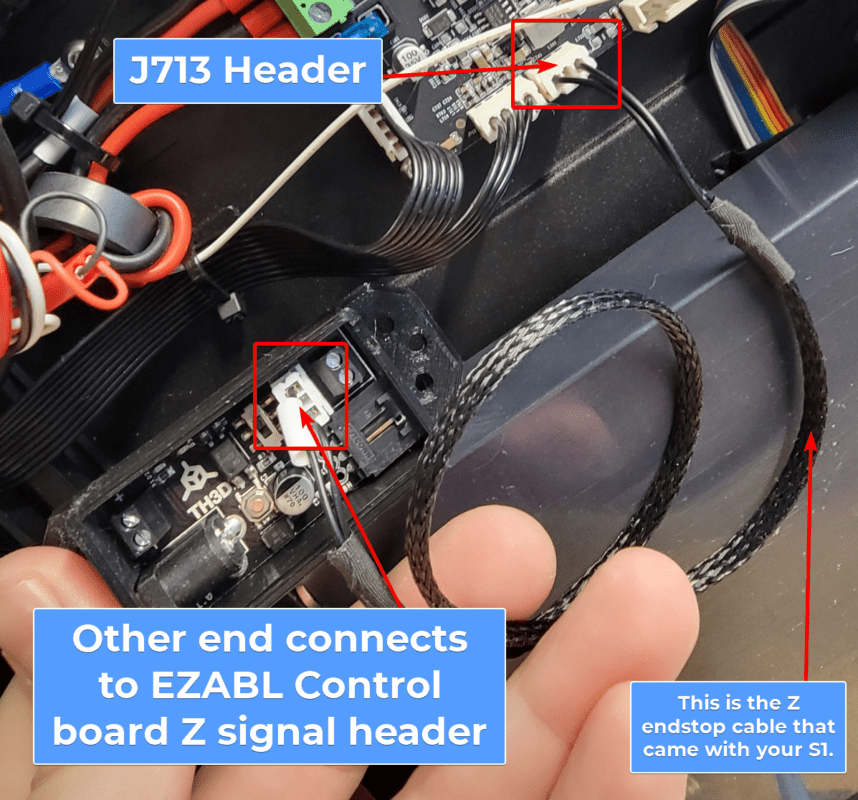

Since the Ender 3 S1 does not come with a Z endstop preinstalled you will need to connect the included Z endstop cable that came with your Ender 3 S1 from the J713 header on the control board to the EZABL control board as shown in the pictures below.
