EZABL SKR V2 Connection

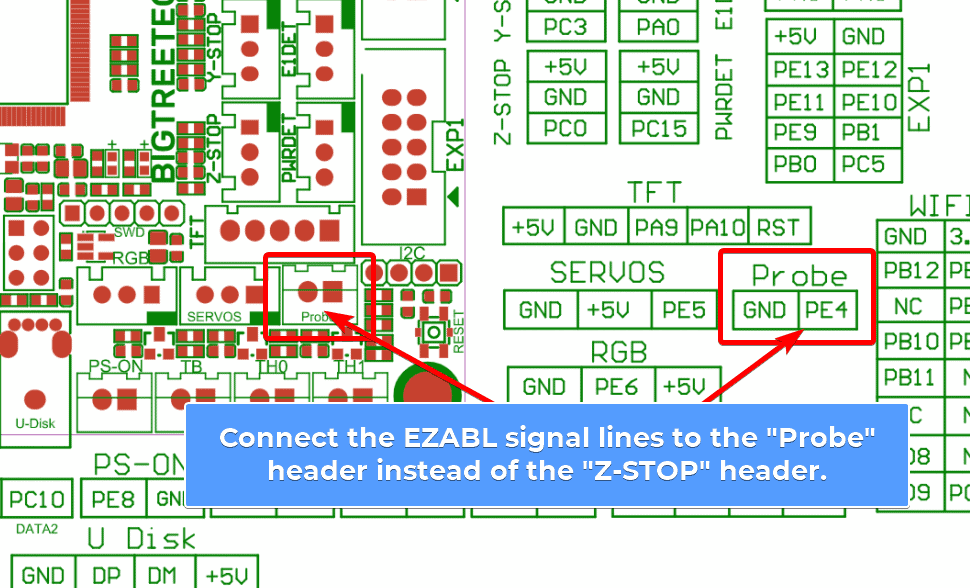

Because of how BTT has their endstop filtering done on their boards it can make the EZABL not function correctly when connected to the Z endstop. You should use the “Probe” port instead of the “Z-STOP” port for connecting to the EZABL signal side.
