EZNeo – BTT Octopus Pro Board Setup
What you will need
- The EZNeo Strip
Plug it in!
The Octopus Pro boards have a dedicated NeoPixel header. This pin is pre-setup in Marlin 2.0 and uses pin PB0.

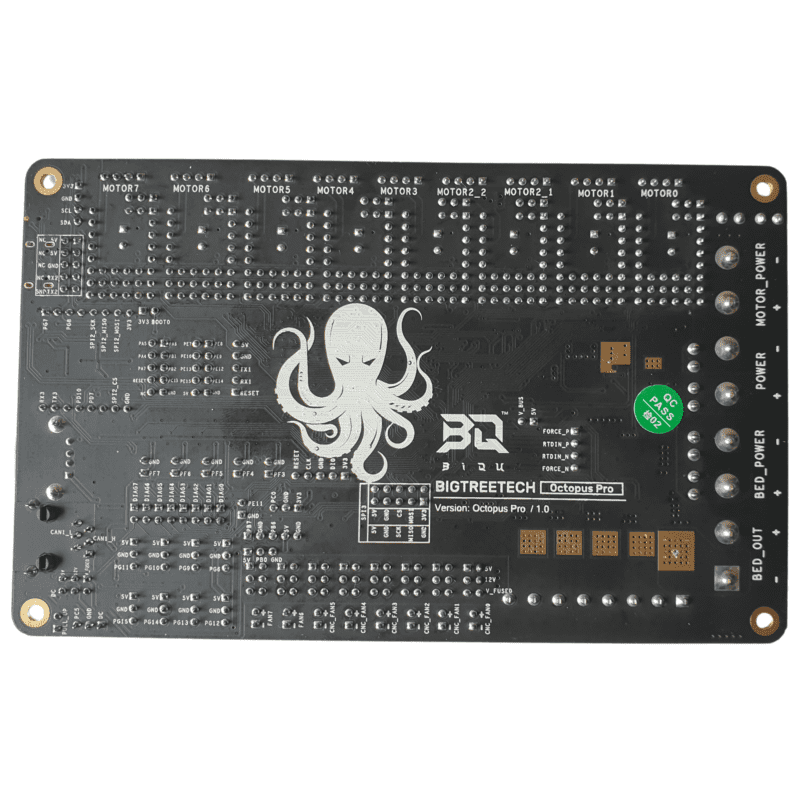

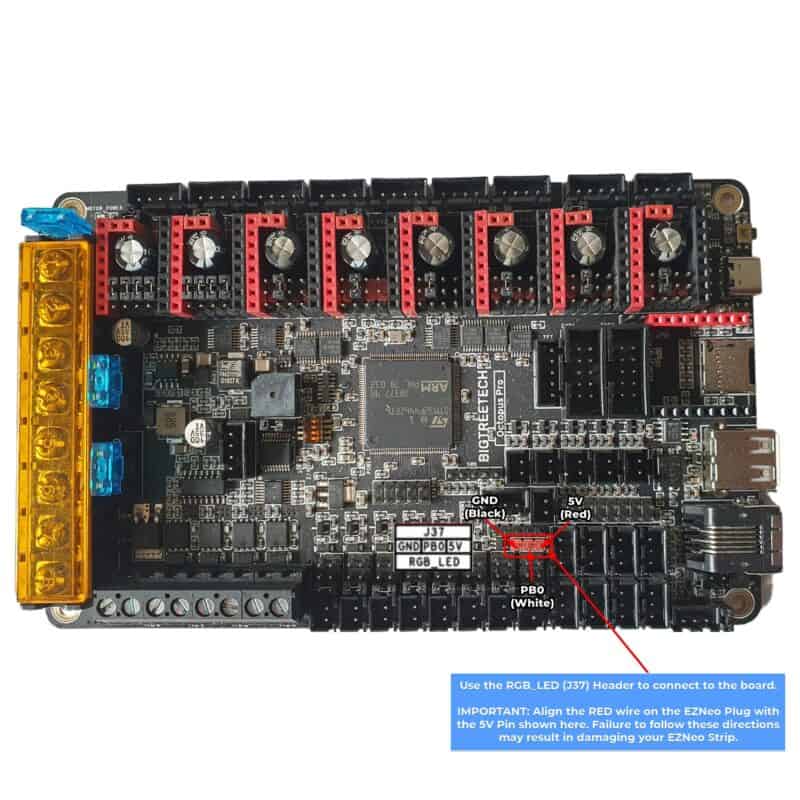

Just simply plug in the EZNeo cable to the RGB header on the board shown below in the pinout diagram and the other end of the cable into the EZNeo strip.
The official Octopus Pro Manual is located on their GitHub here: BIGTREETECH-OCTOPUS-Pro/BTT_Octopus_pro_EN.pdf at master · bigtreetech/BIGTREETECH-OCTOPUS-Pro (github.com)
The Octopus Pro uses pin PB0 for their NEOPIXEL_PIN when using the RGB header as shown above. TH3D does not provide firmware for the Octopus Pro boards, refer to BTT official firmware or Marlin for firmware for those boards.
Vanilla Marlin SetupIf you are using a standard build of Marlin (aka "Vanilla" Marlin), follow the directions below to set the correct options to use the strips with your Marlin build. These directions are based on Marlin 184.108.40.206. Older/newer versions of Marlin may have different values than shown below.
Configuration.h SettingsIn Configuration.h make the following changes:
- Uncomment the NEOPIXEL_LED line
- Set the NEOPIXEL_TYPE to NEO_GRB
- Set the NEOPIXEL_PIN line to whatever IO pin you are using to control the strip.
- Change the NEOPIXEL_PIXELS value to 15
- Uncomment the NEOPIXEL_STARTUP_TEST line
Configuration_adv.h SettingsIn Configuration_adv.h make the following changes:
- Uncomment the LED_CONTROL_MENU line
