EZNeo – SKR E3 Mini V1.0 Board Setup

What you will need

  1. The EZNeo Strip
  2. A 5V Power Adapter
  3. Jumper Wires
  4. Soldering Iron & Solder

It is not recommended to pull 5V power from the 5V pins on this board. Their 5V rails are known for being unstable and will not provide clean power to the EZNeos. A separate power adapter is a must.


Powering the EZNeo with a 5V Power Adapter

If your control board does not have the capacity and/or headers (1.0A @ 5V) to power the strip directly, you can power them with a simple step-down module. We carry 1.5A step downs that have wires pre-soldered and pre-set to 5V for quick and easy installation. The only soldering required for our 5V adapter is the connection between the 5V output and the jumper wires to plug into the EZNeo 3 Pin plug for power. Jumper wires are included with our 5V adapter linked below. They will require you to solder to the step down to attach the power input and output wires.

IO Pin Wiring

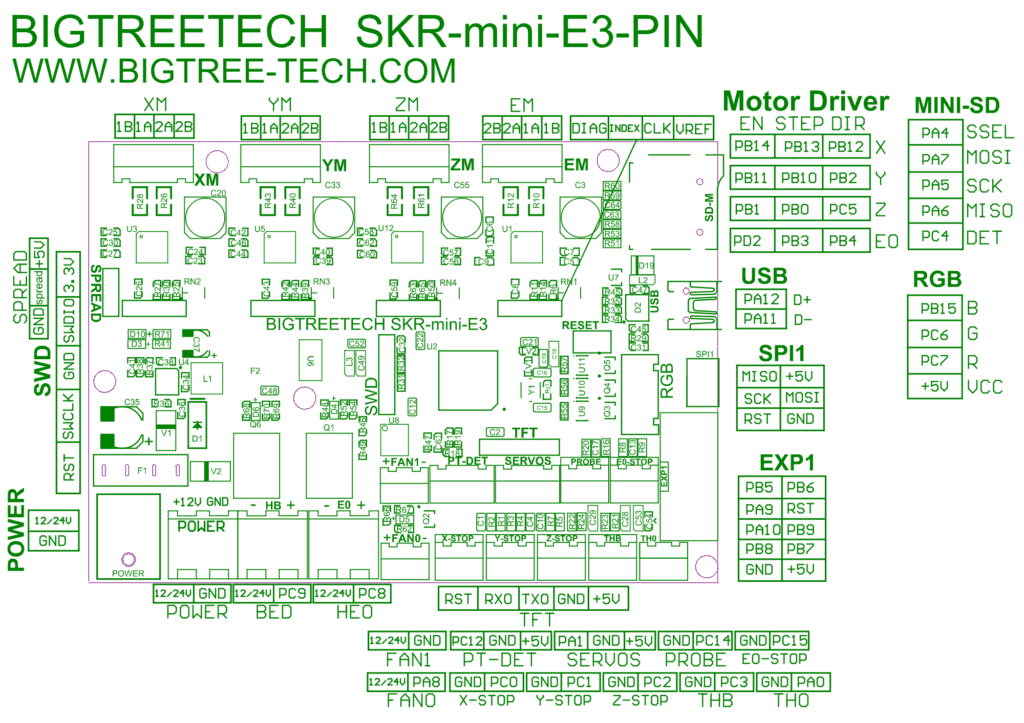

The SKR E3 Mini V1.0 boards have many IO pins that are available to use. You can use any of the free IO pins to control the EZNeo strips. Below is a picture showing the pin locations and their corresponding pin numbers.

Whatever pin you connect to will be the one you specify in the firmware. Nothing else can be using these pins, so choose one that is not used.

Source: BIGTREETECH-SKR-mini-E3/SKR-mini-E3-PIN.pdf at master · bigtreetech/BIGTREETECH-SKR-mini-E3 (github.com)

Firmware Setup

Unified 2 Firmware

If you are using our Unified 2 firmware, there are preset settings in the Configuration.h file to support the EZNeo strip. All you need to do is uncomment the line for the EZNeo strip you are using, uncomment the NEOPIXEL_PIN line, and enter in the pin number you are using.


Vanilla Marlin Setup

If you are using a standard build of Marlin (aka "Vanilla" Marlin), follow the directions below to set the correct options to use the strips with your Marlin build. These directions are based on Marlin 2.0.9.1. Older/newer versions of Marlin may have different values than shown below.

Configuration.h Settings

In Configuration.h make the following changes:
  • Uncomment the NEOPIXEL_LED line
  • Set the NEOPIXEL_TYPE to NEO_GRB
  • Set the NEOPIXEL_PIN line to whatever IO pin you are using to control the strip.
  • Change the NEOPIXEL_PIXELS value to 15
  • Uncomment the NEOPIXEL_STARTUP_TEST line

Configuration_adv.h Settings

In Configuration_adv.h make the following changes:
  • Uncomment the LED_CONTROL_MENU line
These settings will enable all the Marlin RGB LED control options. You can change the LED colors from your printer LCD menu or through Gcode commands (M150)
