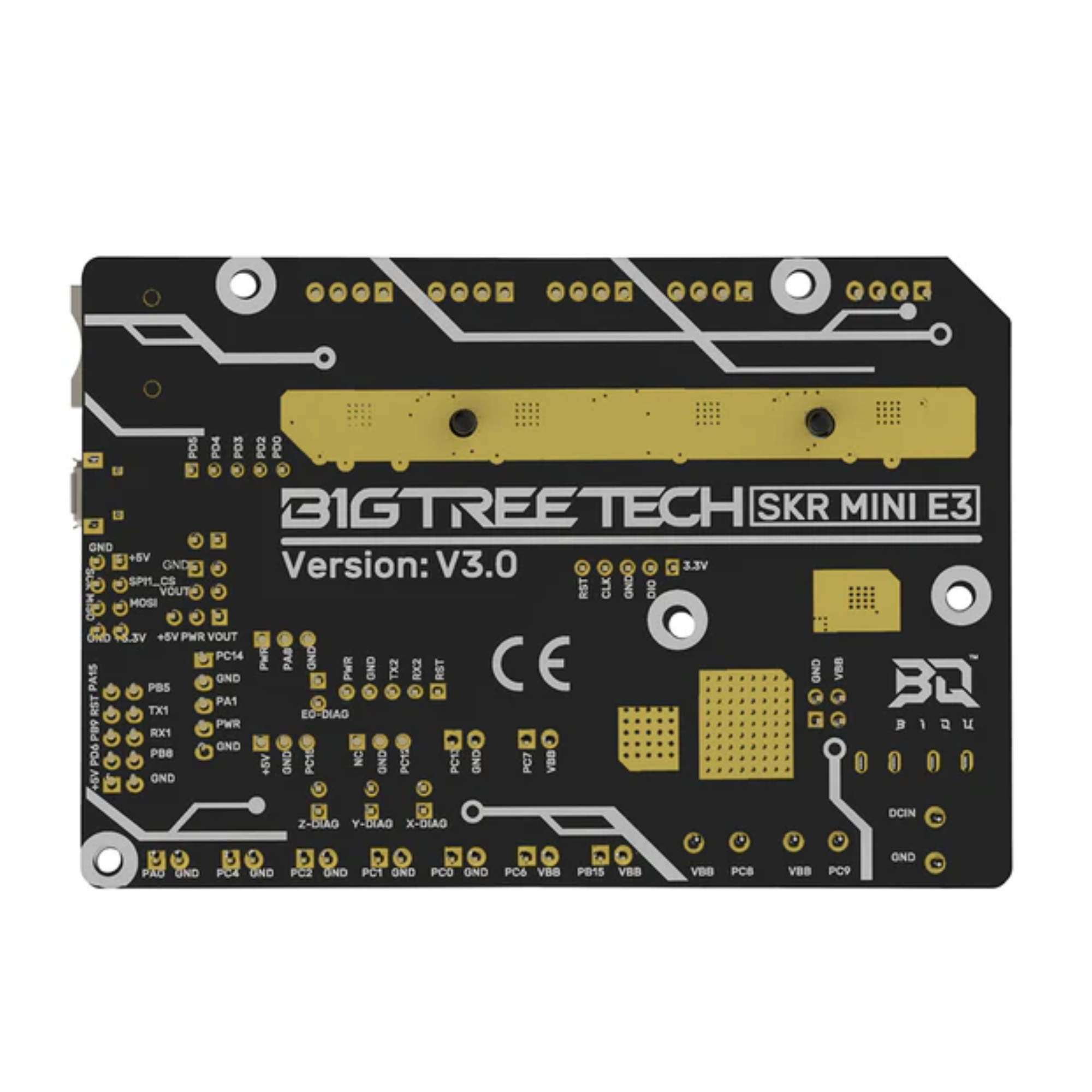

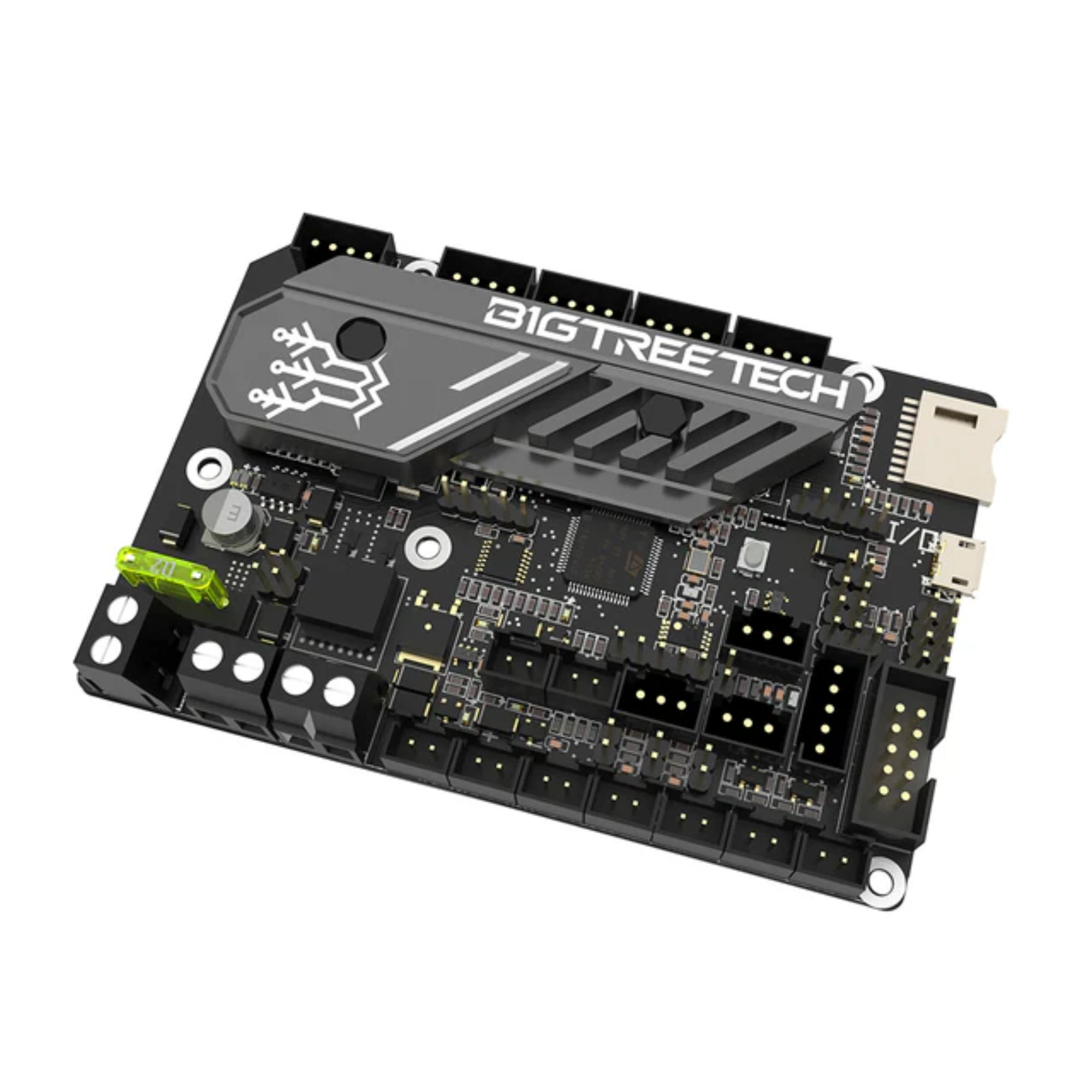

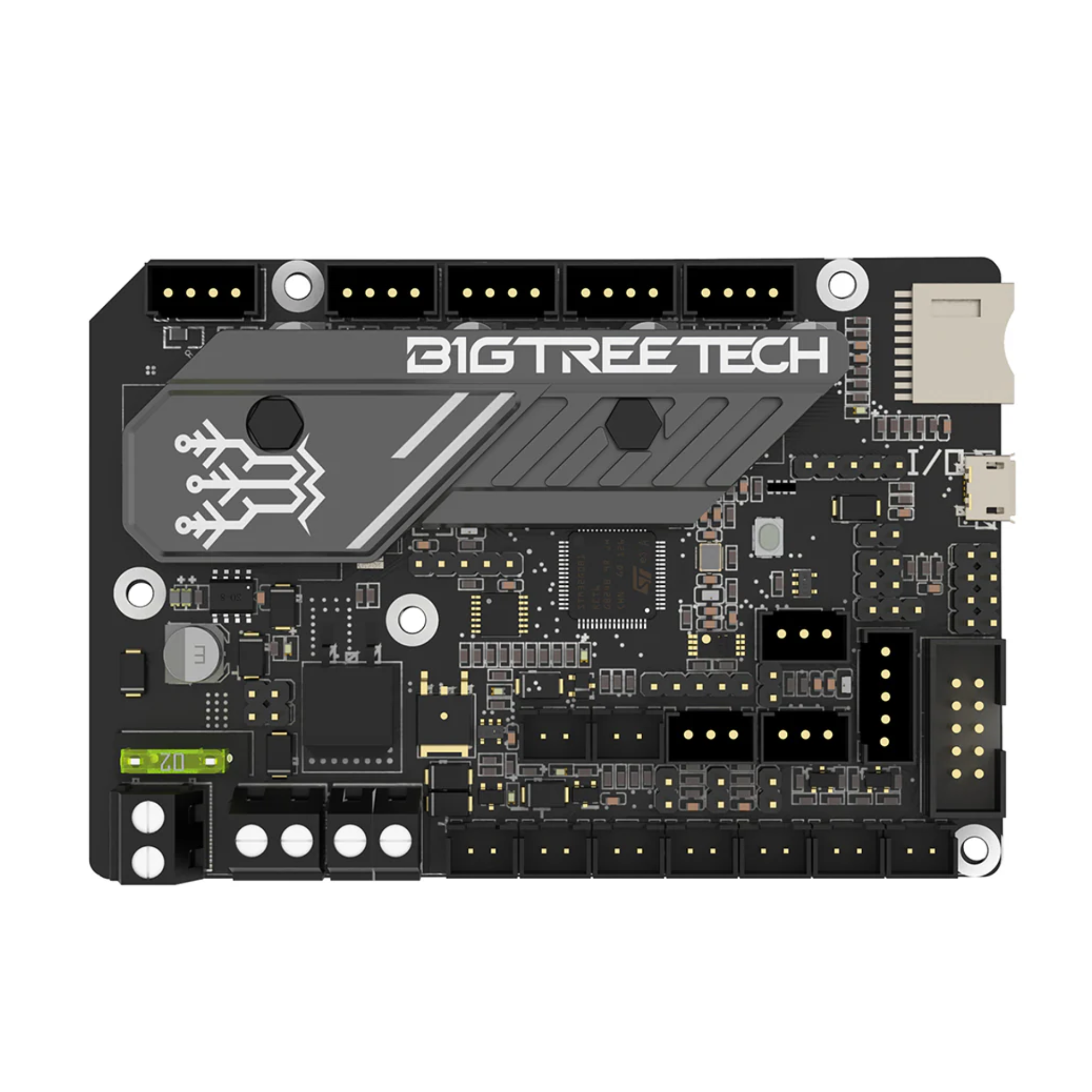

BIGTREETECH SKR MINI E3 V3.0 32 Bit Control Board for Ender 3/Ender 3 Pro/Ender 5/Ender 5 Plus/CR-10 – STM32 512K Memory

Genuine STM32 CPU, Silent Trinamic TMC2209 Stepper Drivers, 512K Memory, Includes a bootloader. All BTT boards we stock are the latest with improved QC from the factory.

What does this board do? This is a budget silent board from BigTreeTech. It is a good low-cost alternative to our EZBoard. This board is supported in our Unified 2 firmware multiple 3D printer models (see below). If a printer is not specifically listed below, it is not officially supported by our firmware. We do offer custom firmware setup services as a paid addon (contact our support for details).

Features/Details

• Genuine BigTreeTech SKR E3 Mini V3.0 board with Trinamic TMC2209 Drivers with UART Control
• Guaranteed Genuine STM32 CPU – With manufacturers swapping out STM32 CPUs in favor of knock-off chips, we are opening and checking EVERY board before shipment to ensure it has a genuine STM32 CPU on it as well as what memory size they have.
• 64mhz CPU Speed & 512K Flash Memory with EEPROM support
• This board has a bootloader that allows updating the firmware from the MicroSD card

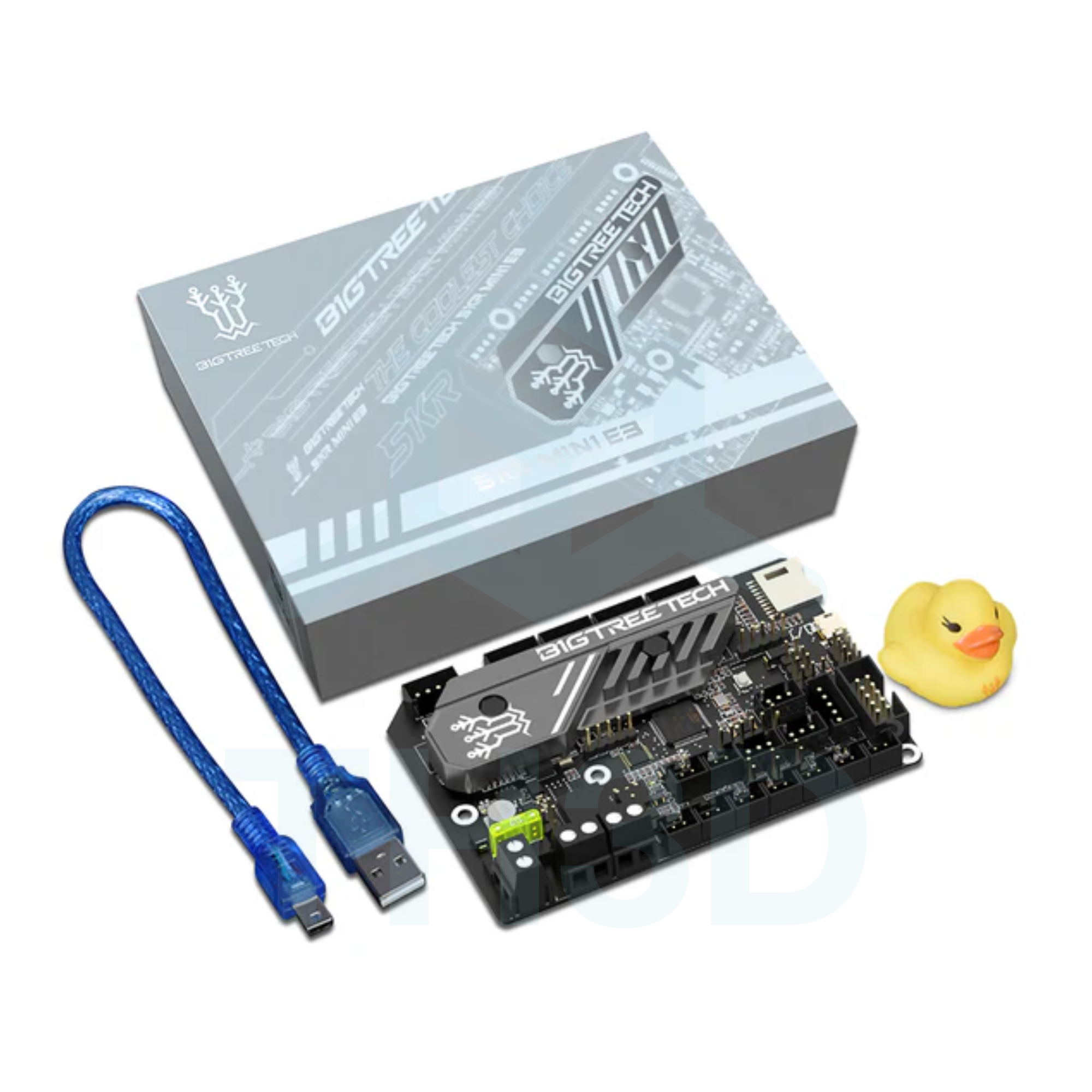

• Uses MicroUSB Cable to Connect (included)
• Works with the below printers:
  • CR-10
  • CR-10S
  • CR-10 Mini
  • CR-10S Mini
  • CR-10 S4
  • CR-10S S4
  • CR-10 S5
  • CR-10S S5
  • Ender 3/3 Pro
  • Ender 3 NEO
  • Ender 3 V2
  • Ender 3 V2 NEO
  • Ender 3 MAX
  • Ender 3 MAX NEO
  • Ender 5/5 Pro
    • Ender 5 machines will likely need our LCD EMI filter board due to how Creality designed this board.
  • Ender 5 Plus – LCD Kit Required and Dual Cable LCD Adapter Board Required
• Unified 2 Firmware included FREE via digital download – Ships with Testing Firmware, you will need to flash it for your machine with a SD card and a Computer + Updates for 3 Months

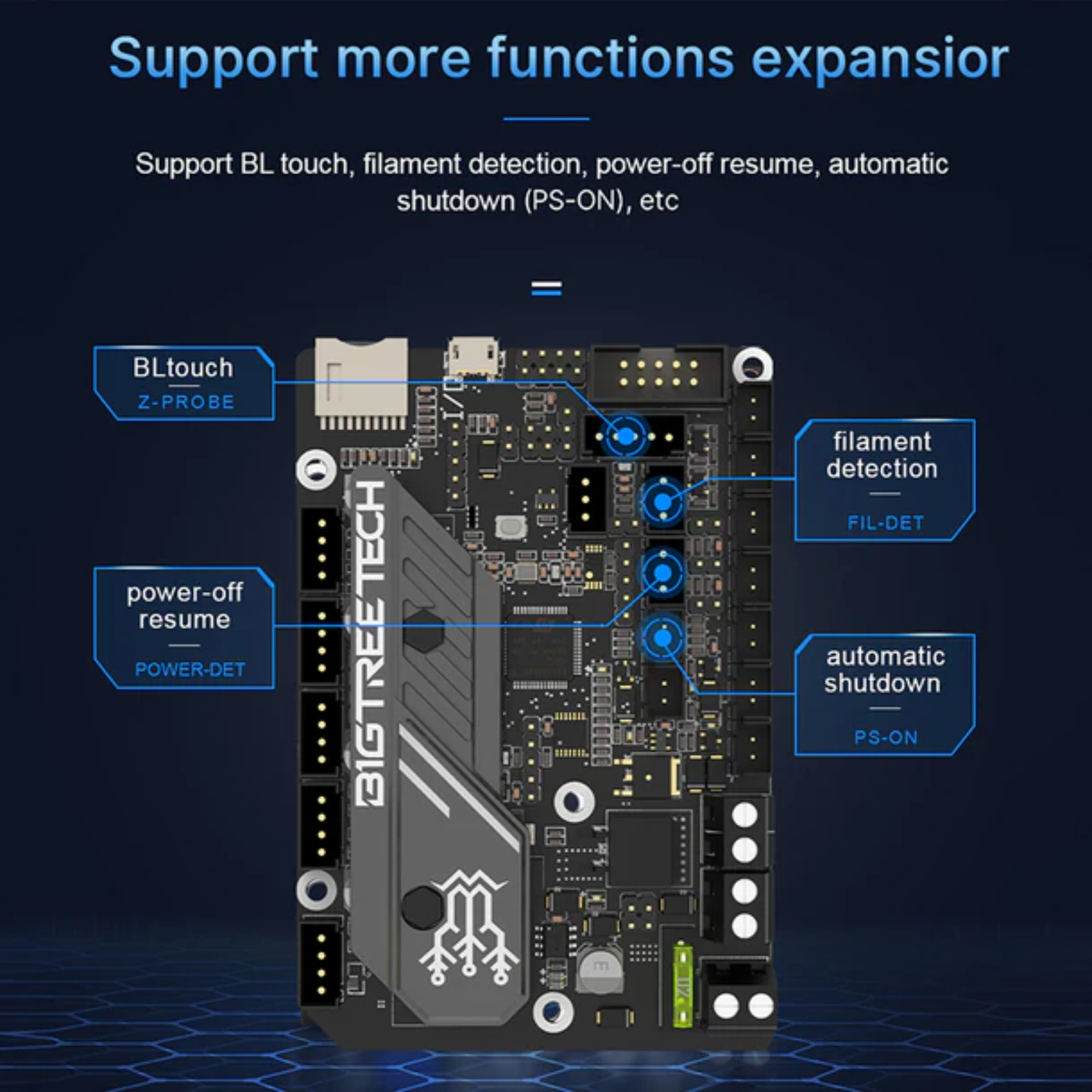

• Compatible with EZABL, EZOut Filament Sensor Kits, and BL Touch Probes
• VREF is set digitally with firmware via UART Control (firmware is presetup to the optimal values based on printer model you flash to the board)
• For printers with the Color LCD + Knob make sure you have an LCD that is able to be updated. See our Creality Color LCD page here for details.

CR-10 Model Support Notes (Read this BEFORE buying for a CR-10 Series)CR-10 (Regular, Mini, S4 S5)

• MOSFET needed for the bed if your machine does not already have one (addon above)

CR-10S (Regular, Mini, S4 S5)

• Needs Creality Dual Cable LCD Adapter Board if you do not have the EXP3 header on your LCD.
• If you have the EXP3 header on your LCD use 1 cable to connect from the EXP3 to our board and you will then not need the dual adapter board.
• MOSFET needed for the bed if your machine does not already have one (Found here)
• Does NOT work with Touch Screen Models

Important Information

• Make sure to have an active cooling fan over the board to keep it cool. The Trinamic drivers run warmer than boards with the “standard” (aka 4988 series) drivers.
• On some machines, the EMI filter board addon is required, specifically Ender 5 machines.

Firmware Information See the firmware page here for details on the firmware itself: https://www.th3dstudio.com/product/unified-2-firmware-for-skr-e3-mini-v3-v3-0-1/

Expert Support Included Purchase with confidence! This product includes technical support via email to help you with setup and troubleshooting at no extra cost.

Need hands-on assistance? If you prefer a faster, live resolution, we offer Live Engineering Consultations (Video & Remote PC Access) as a premium add-on.
