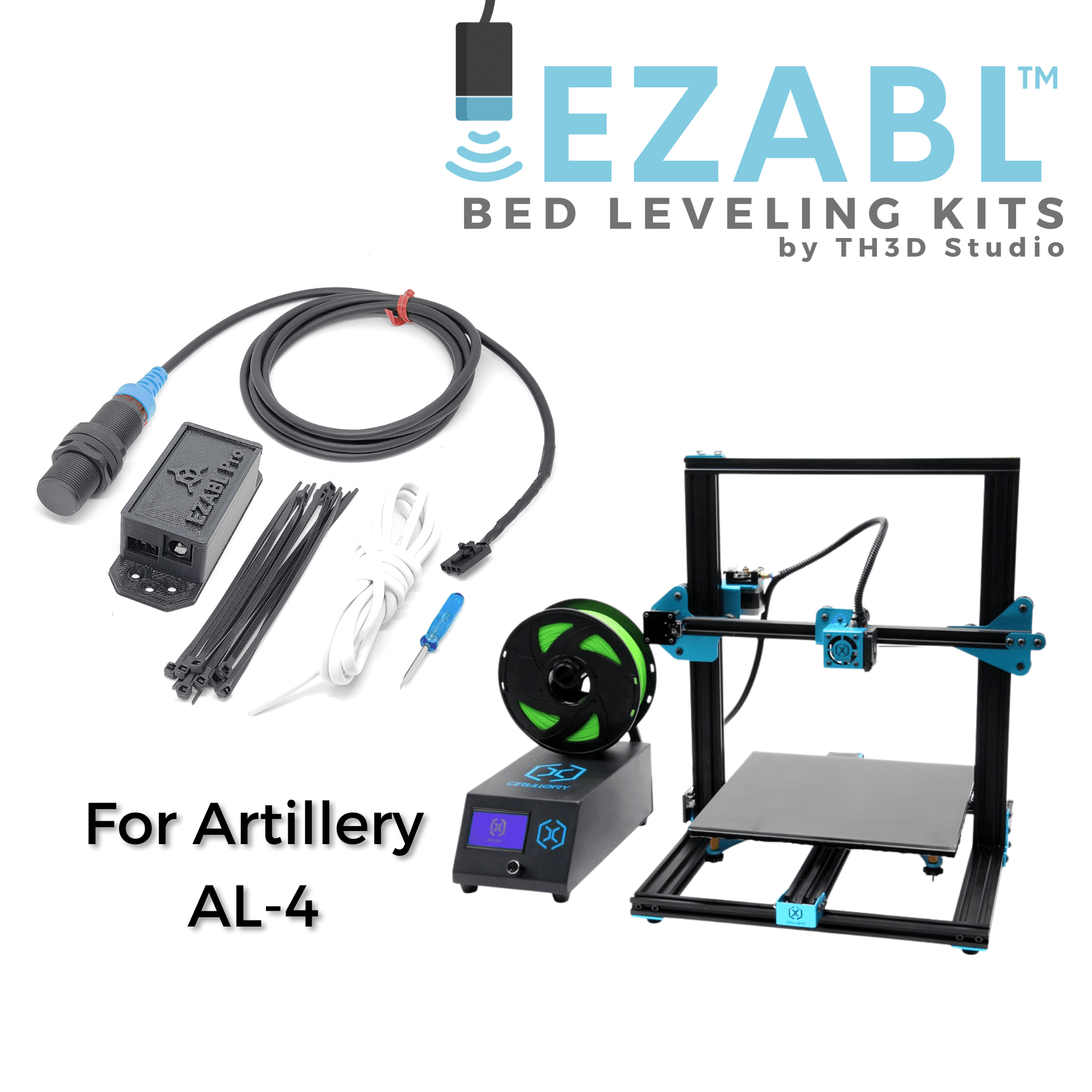

EZABL™ Pro Bed Leveling Kit for Artillery AL4
From: $64.78
Tired of leveling your printer bed by hand? Let our EZABL do it for you!
Our EZABL is fast, high quality, reliable, and easy. We also include technical support from our US support team – you don’t get this from the BLTouch.
Are you tired of leveling the bed on your Artillery AL4 by hand? Let our EZABL do it for you!
Installation Guide, Firmware, and STL Files
Setting up with standard Marlin or have a printer with a 3rd party control board?
Check out our setup guide here: EZABL Firmware Setup for “Vanilla” Marlin
Troubleshooting Information Help Center in the “EZABL” section. Need help that our troubleshooting articles don’t cover or have a question? Send us a message with our Contact Us page.
How Does the EZABL™ Mount?
The EZABL™ mounts to your printer hotend and we supply STL files for over 40+ different mounting options for the 25+ machines we support. All our STL files are located in the Unified 2 STL Pack. You will either need to print a mount for your particular printer or select one from our OEM mount selection above.
You may need some M3 screws (or others depending on the mount) to mount the sensor and we have a screw assortment that covers all the sizes you may need for all the most popular mounts.
Do I need to have a bootloader on my printer?
Yes, you do and most modern printers have this already loaded on the board. Almost all 32 Bit CPU boards come with bootloaders on them.
If your printer has a 1284p CPU on it, then you will need to flash the bootloader. Add on the Bootloader kit above.
If you are not sure you can use the Live Chat or Contact Us and we can let you know if your printer needs a bootloader flashed or not.
Does the EZABL work with Klipper?
Yes, these probes are supported by Klipper firmware. However, due to the complexity of Klipper, our technical support that is included does NOT apply if you are using Klipper firmware. Technical support only applies when you are using our Unified 2 Firmware package that is included.
What is the accuracy of the EZABL™ Pro?
On a machine with no mechanical issues and a properly installed sensor our kits achieve 0.01mm or better accuracy. Most of our customers report a M48 result of 0.005-0.001mm when properly installed.
Can you include a sensor mount?
We have "OEM" mounts available above as optional addons but if you want a custom mount printed up we also offer print services in PLA, PETG, and ABS. Contact Us with the STL files if you want a custom mount printed.
How much does the EZABL™ Pro sensor weigh?
- 18mm is about 0.9oz w/2x Included Nuts
- 8mm is about 0.3oz w/2x Included Nuts
What is the maximum ambient temperature the EZABL™ can operate in?
The maximum ambient temperature recommended is up to 70C. We have tested them in enclosures up to 75C ambient temperatures.
Ambient is the temperature of the air around the sensor. You can use our EZABL on bed temperatures up to 150C.
Does the EZABL™ work on *insert surface here*?
Our sensors work on all print surfaces that you print on. Our sensors do not require a special type or color of surface to work. This means you can use them on glass, pei, steel, flexplates, garolite, and more!
What is the difference between the EZABL™ Pro/Mini/Micro?
Just the physical size and weight of the sensor. We have smaller sensors for people who want a smaller, lighter probe for specialized applications where the larger 18mm probe will not fit.
Will the EZABL™ Pro work with an AC Bed?
Yes! We’ve made major improvements to the new Pro sensors that make them work on AC beds that are properly connected with a quality SSR. If you use a good SSR (like the Mager we sell) then you will have no issues with your EZABL™ kit with an AC bed (and you can control the bed from your printer!)
Where is the EZABL™ Pro made?
The EZABL™ Pro is designed by TH3D and we use multiple suppliers across the globe to source the parts and build our custom EZABL™ Pro boards & sensors. All final testing, QC, packaging, and support is done here in the US.
Why is the EZABL™ Pro “so expensive”?
Because quality parts and excellent support people are not cheap. We don’t focus on the race to the bottom like other companies. Quality and excellent customer service is the focus here at TH3D. If you want a cheaper kit, check out eBay.
I have a custom printer or one with a control board I swapped, will you setup my firmware for me?
The EZABL will work with any Marlin or RepRap based machine. However, our included support covers machines that are listed above with their original control boards (or our boards we sell) and our Unified Firmware. On custom printers (this includes models we support but with their boards swapped) we cannot possibly account for every variation when a customer swaps their board or has a custom machine.
Does the EZABL™ Pro Kit work with OctoPrint/EZPi?
Absolutely! We love OctoPrint and use it here. Every one of our production machines has an EZPi kit on it and our EZABL™ kit.
Have a question we didn’t cover here?
No problem! Contact our Support Team or use our Live Chat with any questions you may have and we’ll be happy to answer them!
Warranty Information
6 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
