EZOut BLTouch Adapter Board for Anet A8 – w/2004 LCD

Why do you want this upgrade?

If you get the EZOut board you will be using this to connect a BL Touch ABL sensor to your 3D Printer. You plug this board into your LCD header on your control board and then plug the LCD cable into our board. You then have the required 5V, Ground, and Signal pins available to connect to your BL Touch Sensor with ZERO soldering. The signal pin broken out on our board is Pin 27, this will be your SERVO pin in your firmware. Includes the 10 pin extension cable so the board does not hit your control box or printer frame.

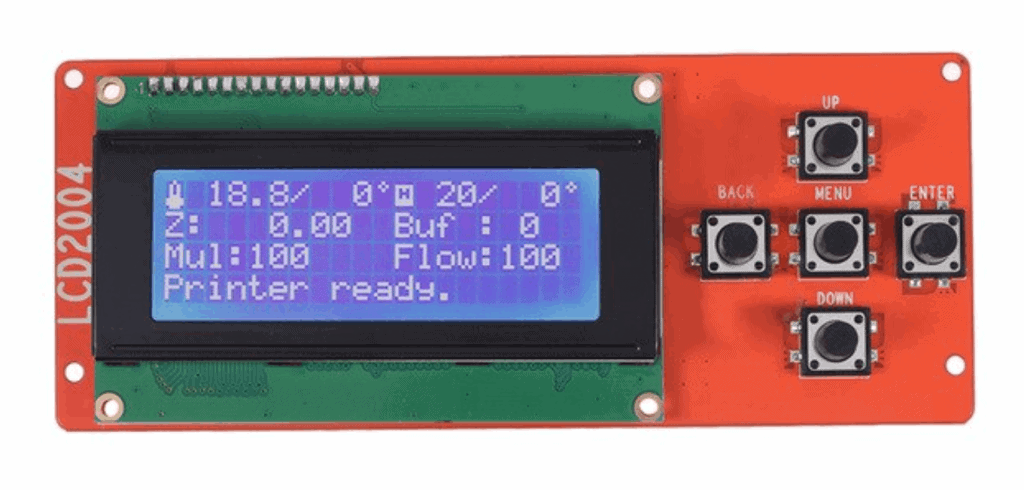

LCD Type Compatibility

---

Installation Links

EZOut Installation Guide

Use our new Unified 2.0 Firmware and follow our setup guide for the BLTouch here: Unified Firmware – BLTouch Settings

---

Bootloader Required

You can add on a bootloader kit above and there is a very easy to follow guide with a video on our page here: 1284p Printer Bootloader Flashing Video Guide – CR-10/Ender 2 3 5/Wanhao i3/Anet

---

FAQ

• Why is there a pin missing on the header?
  • This is removed so the pin does not connect to the LCD after installation and is completely normal.
• Is a BLTouch Included?
  • No, this is just for our adapter PCB. BLTouch sold separately.

Warranty Information

3 Months Warranty -  Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link. Technical support is limited to the scope of the product itself and not your entire machine.

Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
