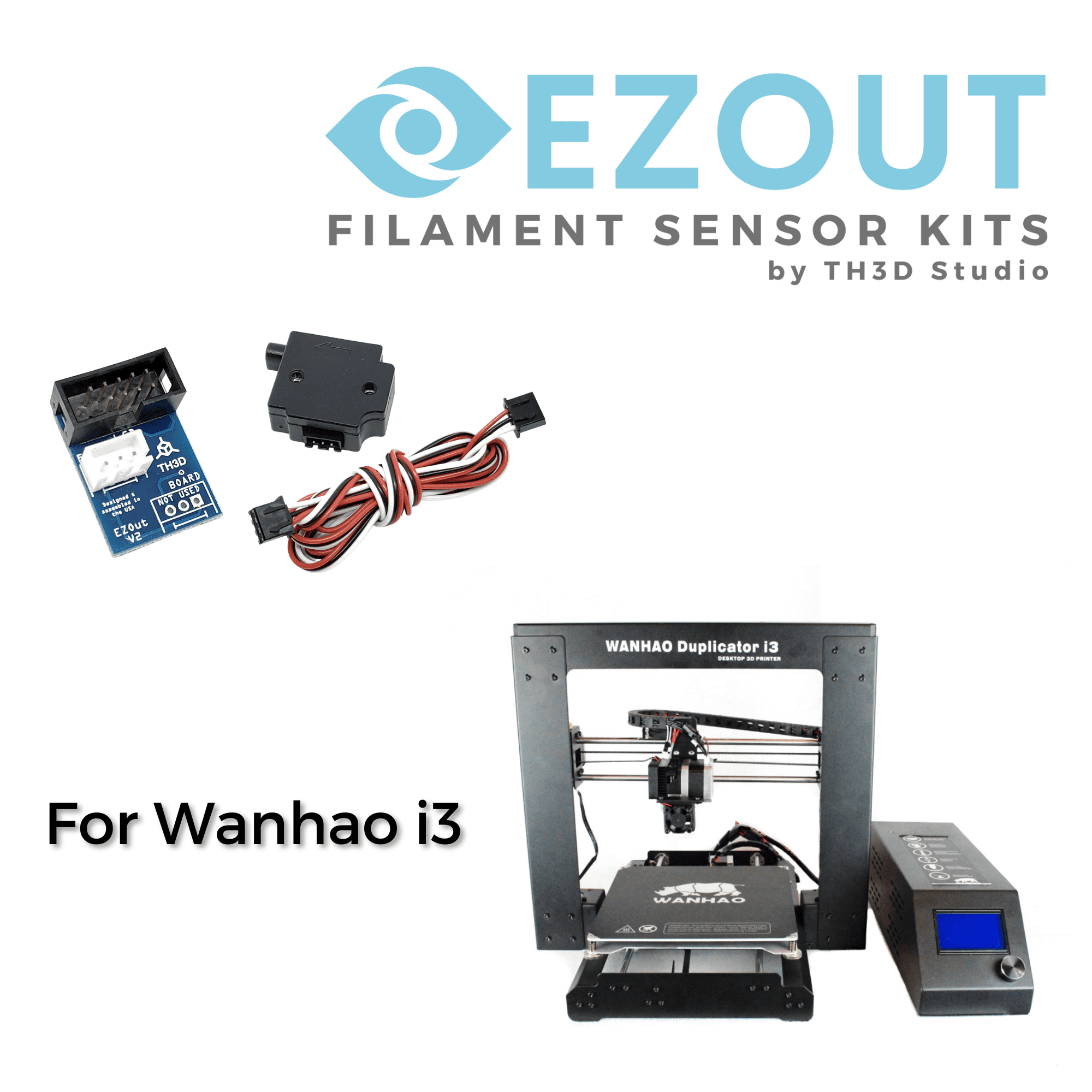

EZOut Filament Sensor Kit for Wanhao i3
From: $19.98
- The original Adapter board to make connecting a filament sensor to your printer.
- Wide power traces with 2oz Copper PCB
- Firmware Included via Download
- Bootloader required to update firmware flash your bootloader with an Uno.
- When used as a Filament Sensor Kit 100% Compatible with EZABL Kits
Why do you want this upgrade?
Filament Sensor Users: Have you ever run out of filament during a print? Now you don’t have to worry! When you get the EZOut board and the filament sensor (add on above) you feed the filament through our sensor and when it runs out the printer will wait for you to load more filament into the printer so you can resume the print! Absolutely ZERO soldering required to install this.
Compatible Printers
- Wanhao Duplicator i3
Installation Links
You need a bootloader on your board to use this product.
You can add on a bootloader kit above and there is a very easy to follow guide with a video on our page here: 1284p Printer Bootloader Flashing Video Guide – CR-10/Ender 2 3 5/Wanhao i3/Anet
FAQ
- Will my beeper still work after installing this?
- No – the pin used for the signal pin was originally used for the beeper.
- Why is there a pin missing on the header?
- This is removed so the pin does not connect to the LCD after installation and is completely normal.
Warranty Information
3 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
