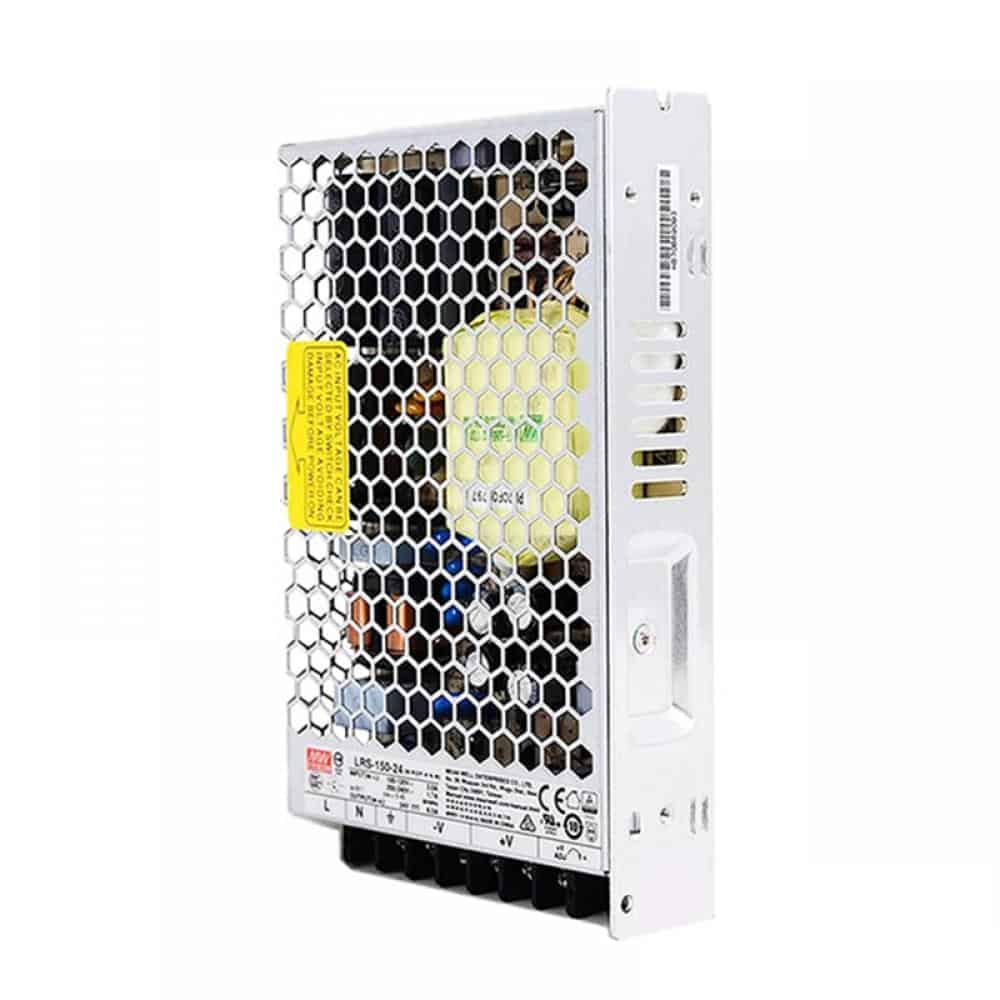

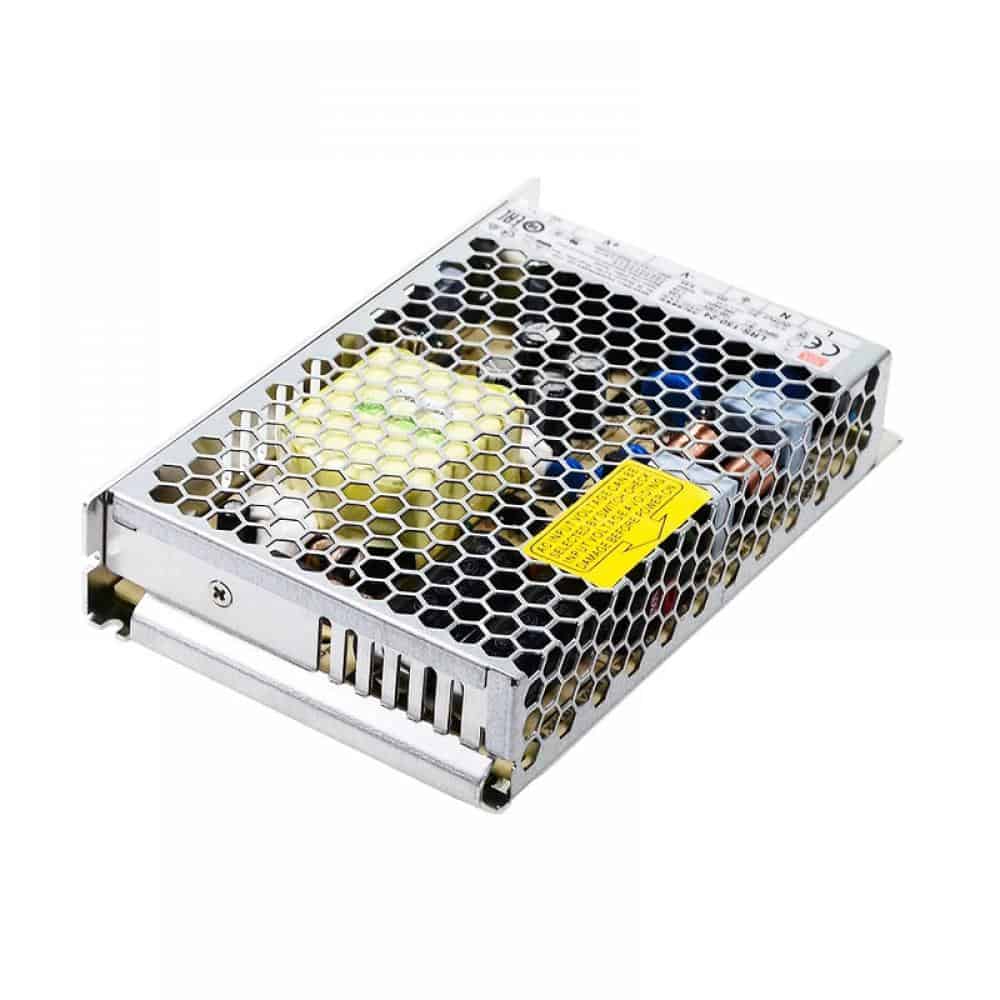

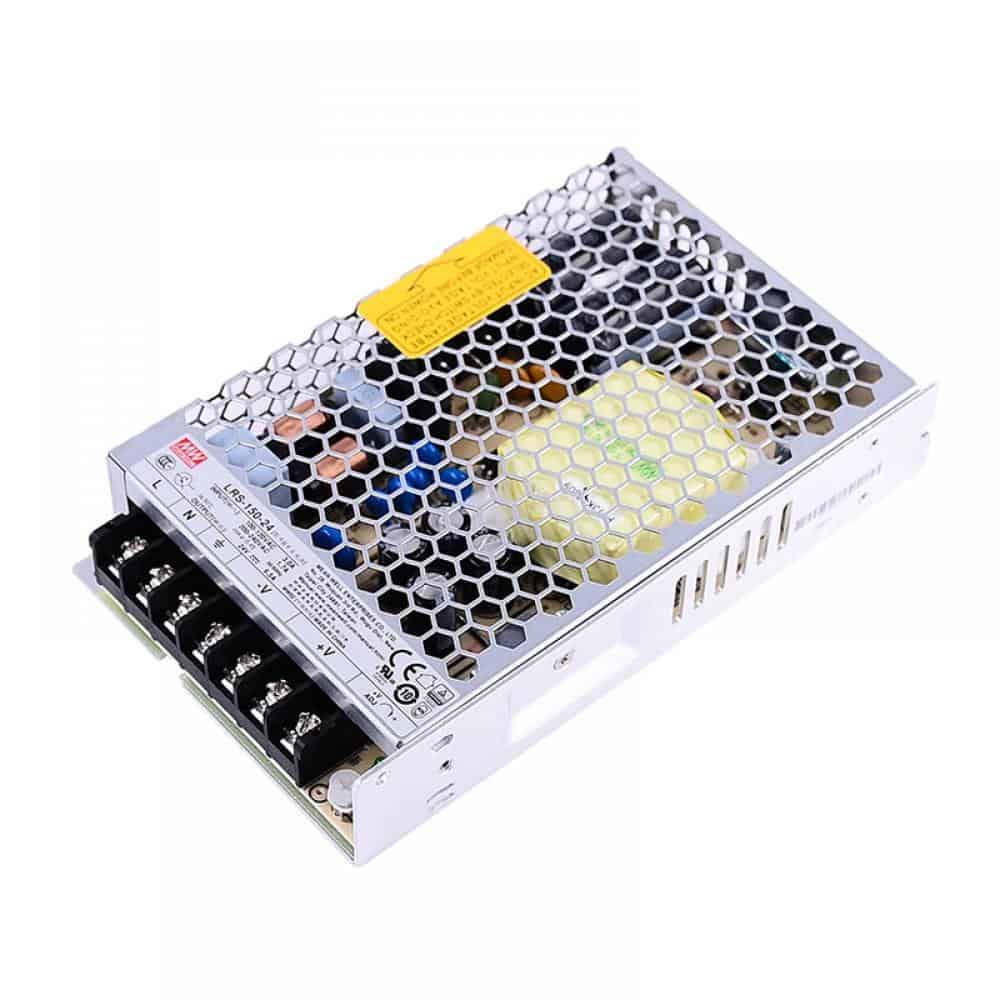

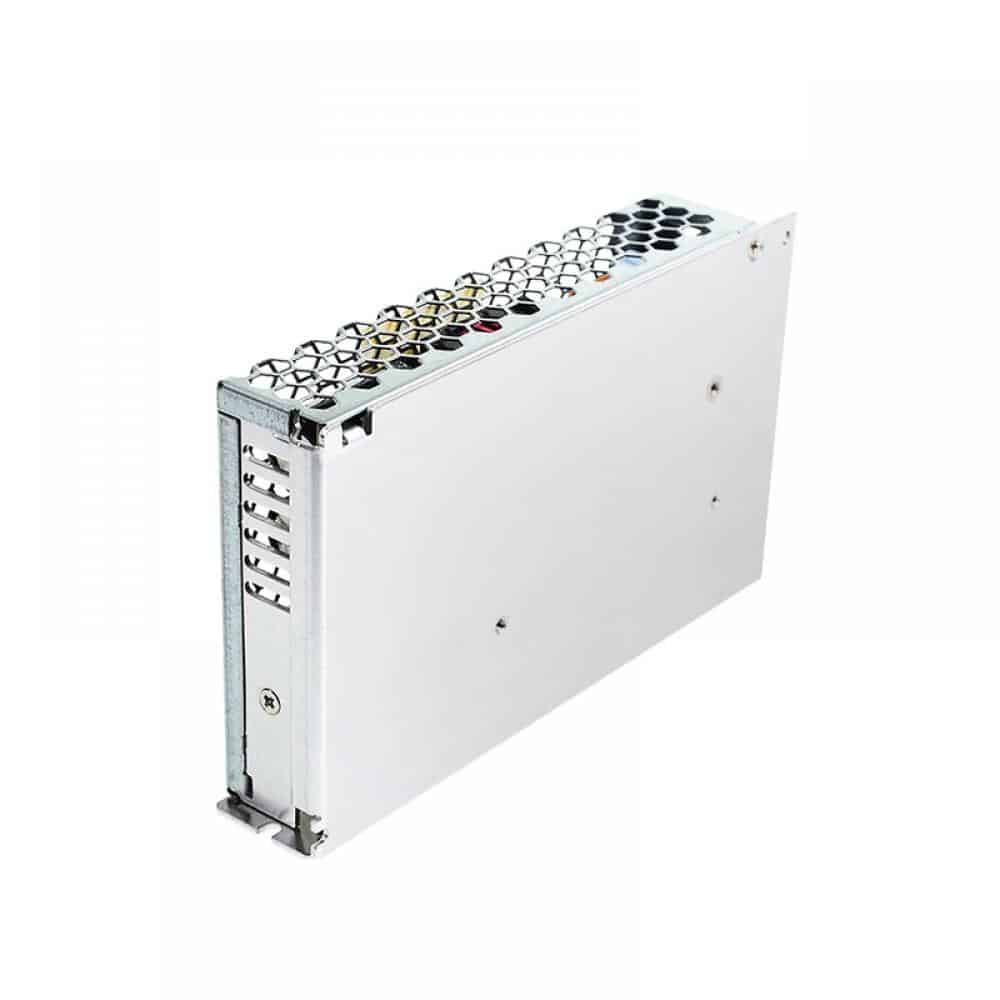

This is a Meanwell LRS-150-24 model power supply. This is not directly used in many machines but is used in our Ender 2 Pro PSU DIY kit. This is a 24V power supply with a max load of 150W (6.5A).
Features
- Brand MEANWELL
- 24V DC 6.5A output
- AC input voltage range: 85 ~ 132VAC
- Rated power: 154.8W
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- No load power consumption < 0.5W
- Miniature size and 1U low profile
- High operating temperature up to 70℃
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, 2-16 for household appliances
- Operating altitude up to 5000 meters
- Withstand the 5G vibration test
- High efficiency, long life, and high reliability
- LED indicator for power on
- Overvoltage category â…¢
- 100% full load burn-in test
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipment, or apparatus
- Household appliances
Warranty Information
3 Months Warranty -Â Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
