MicroSwiss Direct Drive Extruder for Creality CR-10 / Ender 3 Printers

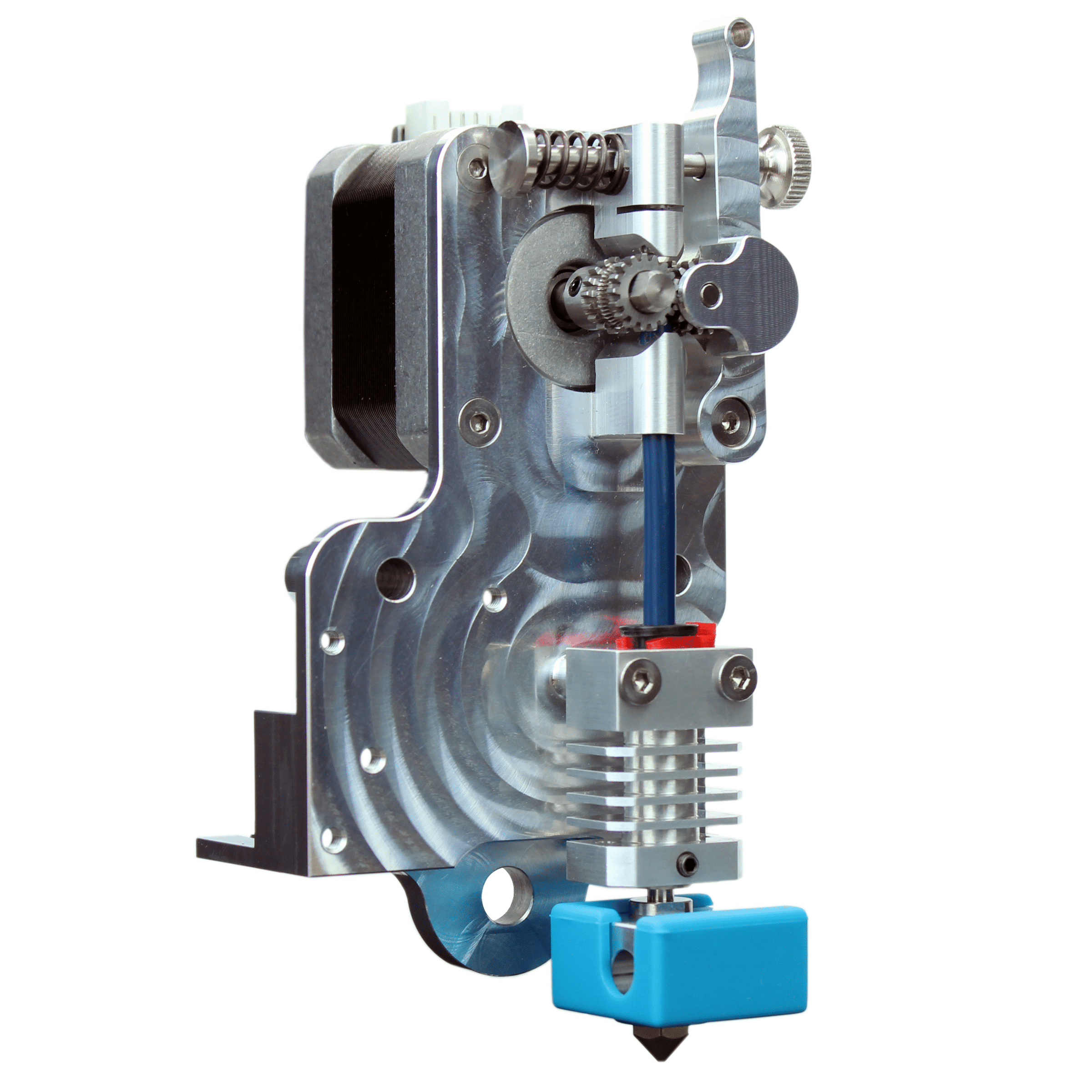

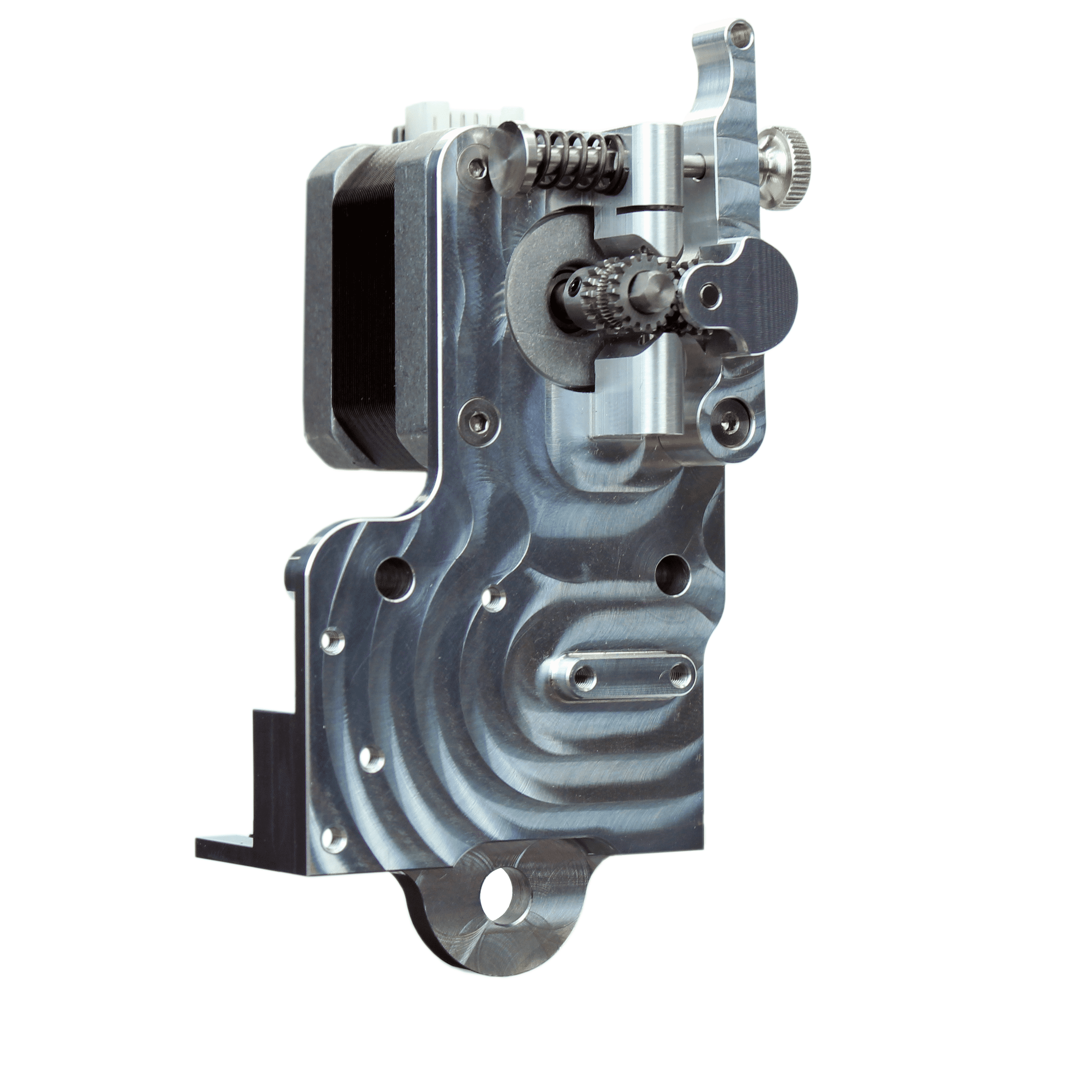

Micro Swiss Direct Drive Extruder is a drop in system for CR10 / Ender 3 Printers

• No modification required, simple plug and play
• No printed brackets or sandwiches

Features:

• Dual-drive train
• Hardened tool steel, CNC precision cut gears
• Adjustable filament grip
• Easy filament loading
• Short, highly constrained filament path
• Prints flexible filaments with high speed and accuracy
• Outstanding extrusion control
• Lightweight aluminum body

Fits

• CR-10 (Will NOT directly fit CR10 V2, V3)
• CR-10-S5
• CR-10-S4
• CR-10S
• CR-10S Pro V1 *Fits with printable Fan Shroud
• CR-10S Pro V2 *Fits with printable Fan Shroud
• CR-10 Max *Fits with printable Fan Shroud
• CR-10 MINI
• CR-20
• CR-20 Pro
• Ender 2
• Ender 3
• Ender 3 Max *Fits with printable Fan Shroud And PTFE bracket
• Ender 3 Pro
• Ender 3 V2 *Fits with printable Fan Shroud
  Installation Instructions Video by My Tech Fun for Ender 3 V2

Disclaimer:
We notice a recent extruder stepper motor update on Creality machines. Before ordering this kit, please check your extruder stepper motor. If your extruder motor gear is pressed in, you will need to purchase a new stepper motor to be able to complete the installation.

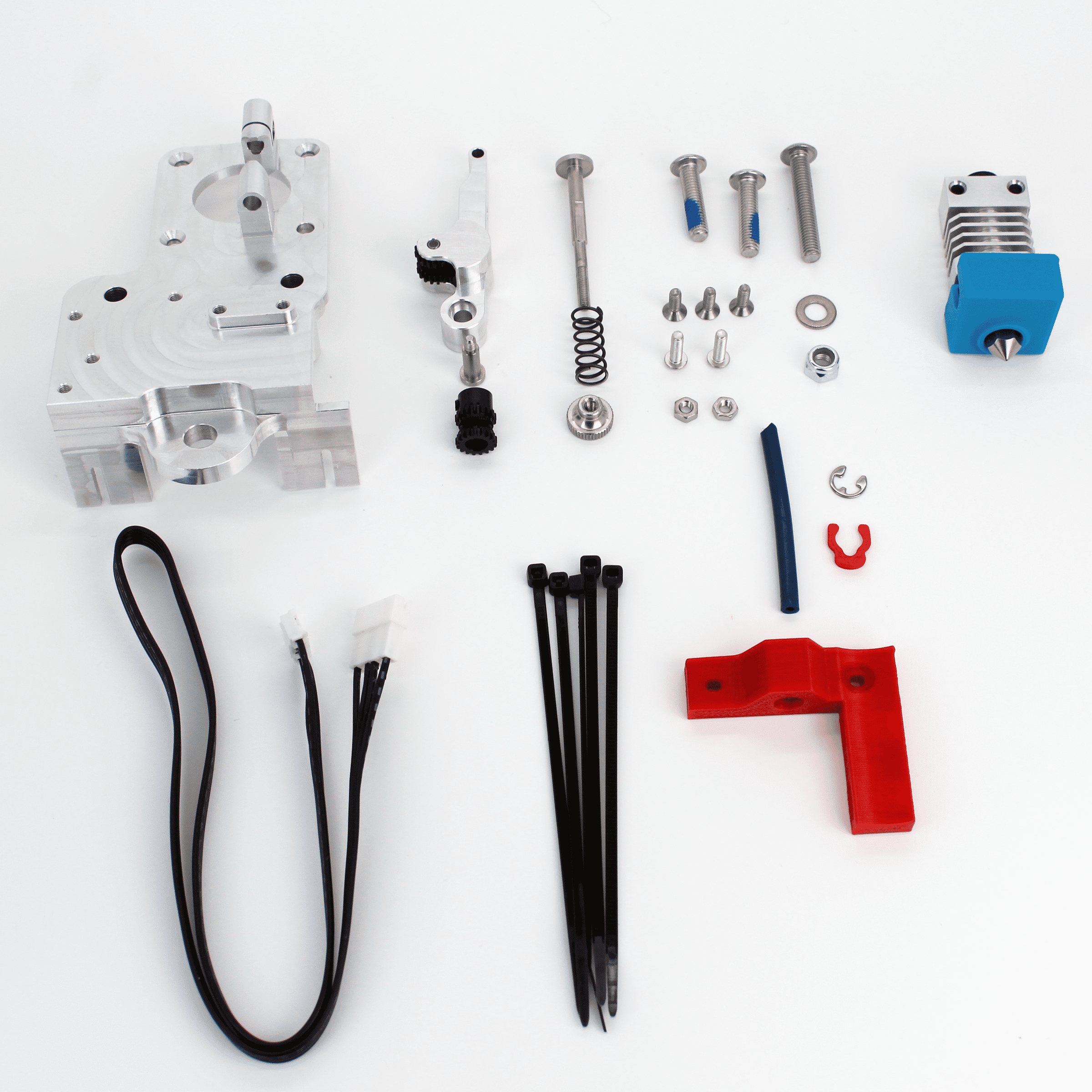

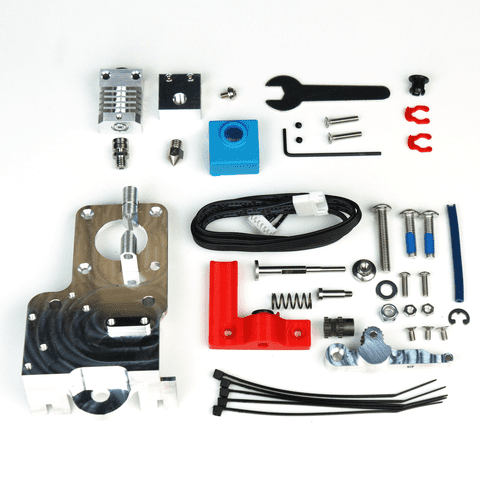

• Stepper motor and roller wheels are NOT included

• 1 x Micro Swiss All Metal Hotend (If option selected)
• 1 x Main Extruder body
• 1 x Extruder Lever
• 1 x Spring Pin
• 1 x Spring
• 2 x Gears
• 1 x Knob
• 1 x Shoulder Pin
• 2 x M5 20mm Nylon Patch Bolts
• 1 x M5 30 Bolts
• 1 x M5 Nylon Lock Nut
• 1 x M5 Washer
• 1 x Extension Cable
• 3 x M3 Motor Mounting Screws
• 2 x M3 Bolts
• 2 x M3 Nuts
• 5 x Zip Ties
• 1 x Printed Bracket
• 1 x Beveled Capricorn Liner
