Left Side Addons for MultiMount System

We have several accessories available for the left-hand side of our MultiMount System. Please read below for information about the variations we offer.

Need a 5015 Fan? We also carry 5015 Fans in 12V and 24V if you do not have one already.

• TH3D 12V 5015 Fan
• TH3D 24V 5015 Fan

---

Left Side Accessory Types and Descriptions

Mount Types:

*ENDER 5/ENDER5 PLUS FITMENT WARNING:

Due to physical machine constraints the EZABL and EZABL+5015 mounts do not work on the left or right side for these models. There are specific LEFT mounted versions available just for the Ender 5 and Ender 5 Plus.

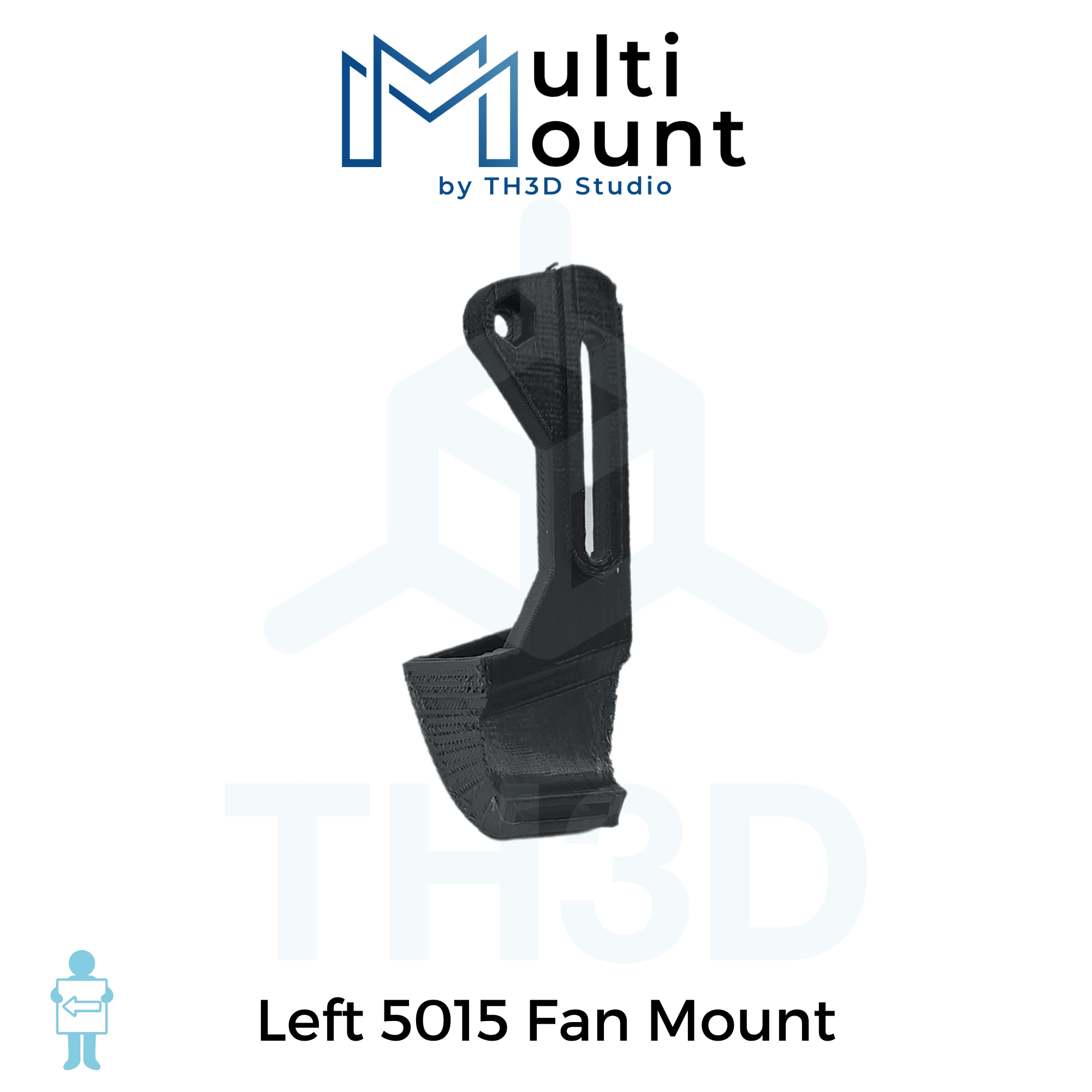

5015 Fan Duct – Used to mount a 5015 blower fan to the left-hand side of our MultiMount System. Simple, yet effective.

• Requires 1x. M3x10mm screw to attach the fan duct to the MultiMount.
• Also requires 1x M3x22mm and 1x M3 hex nut to attach the 5015 blower fan to the duct.

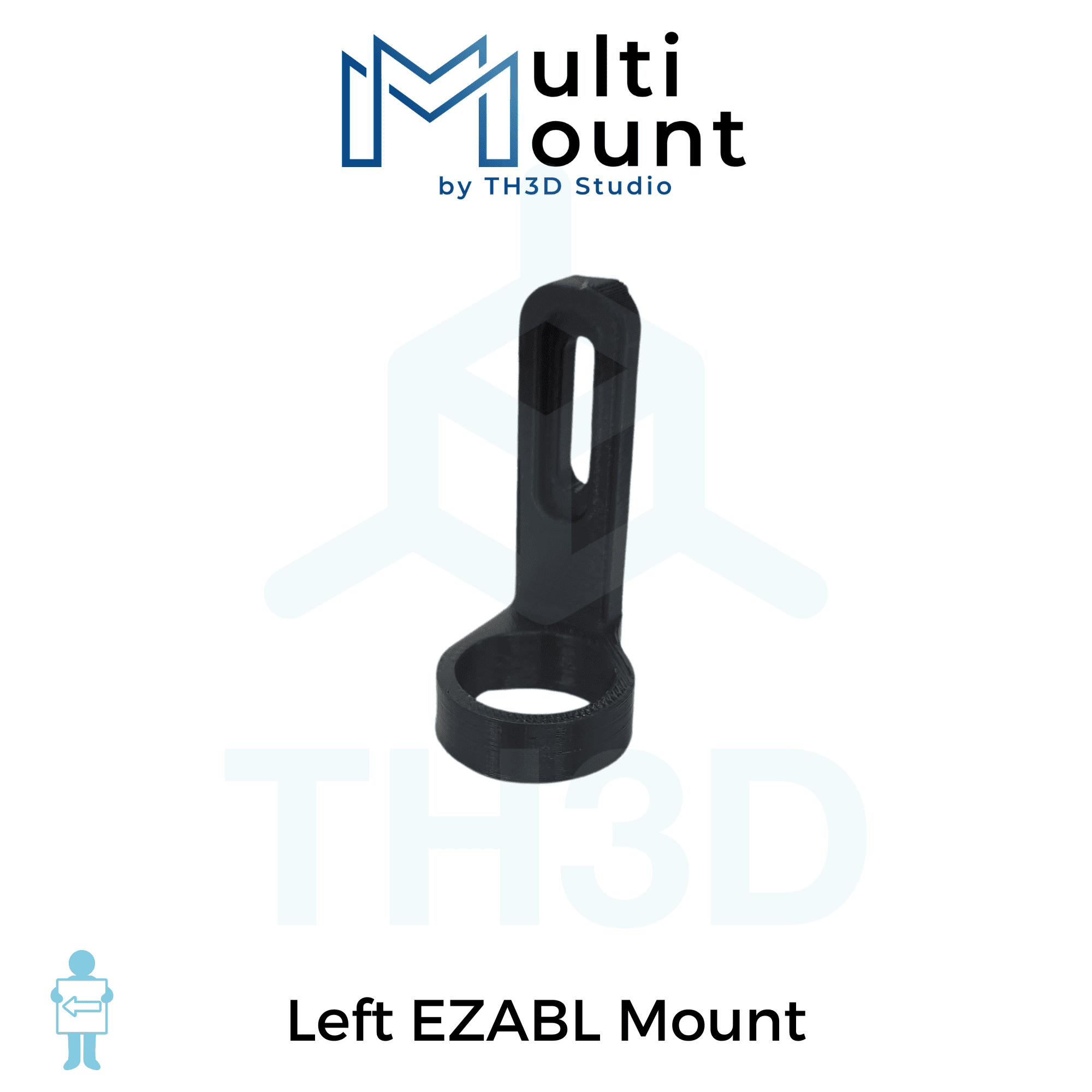

EZABL Mount (18mm) – Used to mount any of our EZABL Pro™ sensors to the left-hand side of the MultiMount System. Designed for 18mm sensors, our smaller Mini and Micro EZABL sensors will require the use of their included adapter rings.

• Requires 1x M3x10mm screw to attach the EZABL mount to the MultiMount.
• Nozzle-to-Probe Offsets:
  • Left-mounted: [ -40, 5 ]

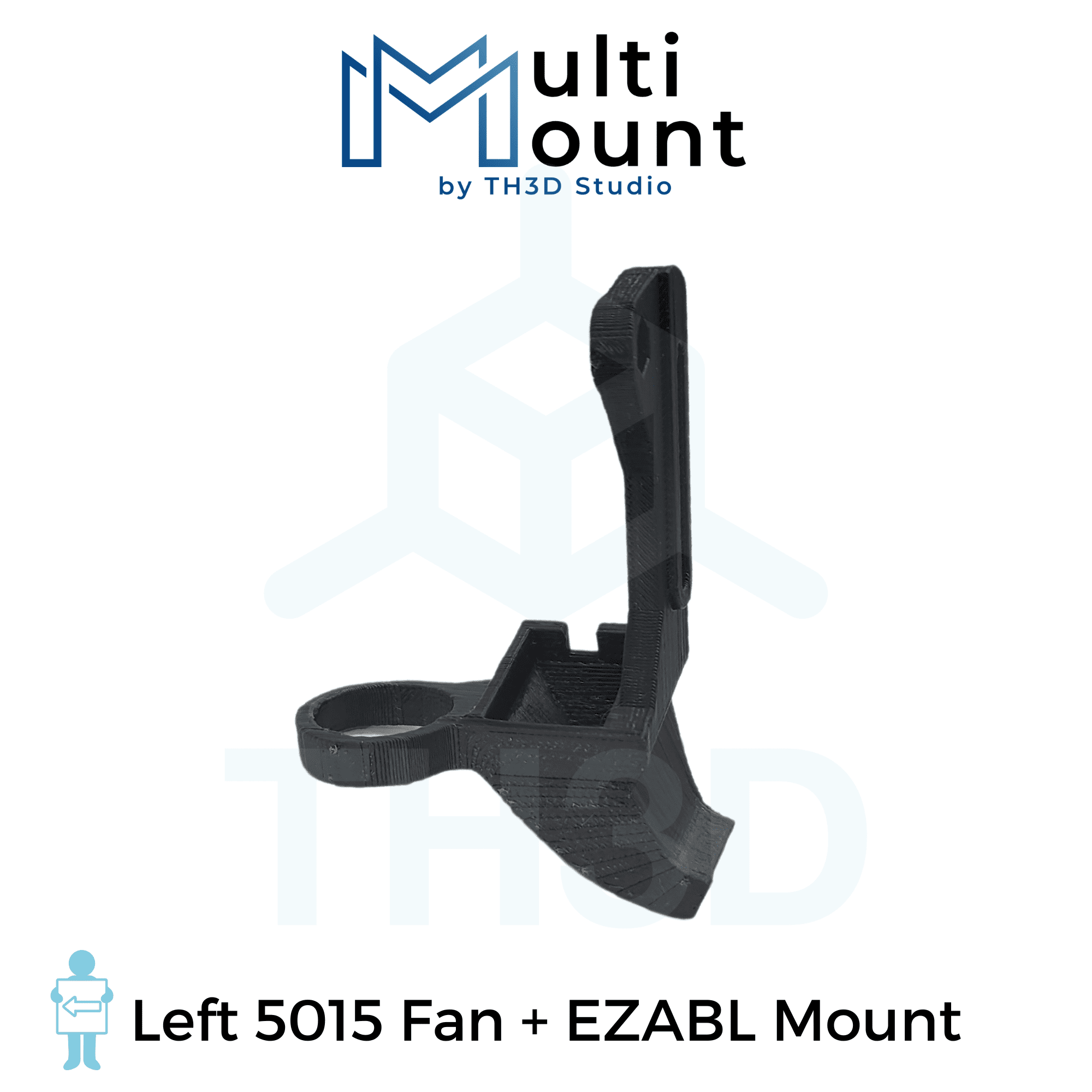

Combination 5015 fan + EZABL Mount – Why settle for one when you could have both? This is a one-piece mount with spots for both a 5015 blower fan and our EZABL Pro™ sensors.

• Requires 1x M3x10mm screw to attach the 5015 + EZABL mount to the MultiMount.
• Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
• Nozzle-to-Probe Offsets:
  • Left-mounted: [ -57, -4 ]

Ender 5/5 Plus EZABL Mount (18mm) – Used to mount any of our EZABL Pro™ sensors to the left-hand side of the MultiMount System. Designed for 18mm sensors, our smaller Mini and Micro EZABL sensors will require the use of their included adapter rings.

• Requires 1x M3x10mm screw to attach the EZABL mount to the MultiMount.
• Nozzle-to-Probe Offsets:
  • Left-mounted: [ -33, -9 ]

Ender 5/5 Plus Combination 5015 fan + EZABL Mount – Why settle for one when you could have both? This is a one-piece mount with spots for both a 5015 blower fan and our EZABL Pro™ sensors.

• Requires 1x M3x10mm screw to attach the 5015 + EZABL mount to the MultiMount.
• Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
• Nozzle-to-Probe Offsets:
  • Left-mounted: [ -56, -9 ]

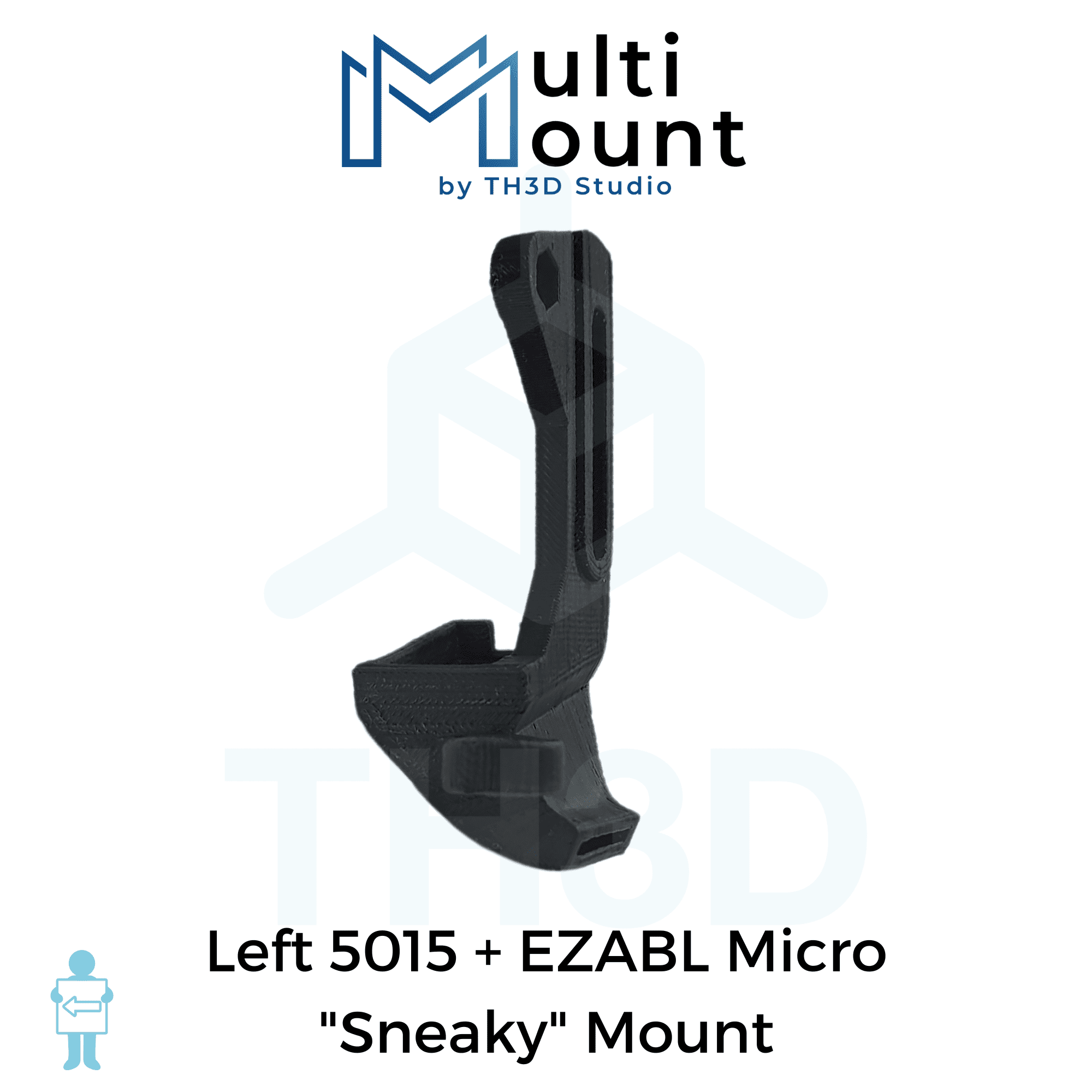

“Sneaky” EZABL Micro + 5015 Fan Mount – Designed to hide one of our EZABL Micro (8mm) sensors in a compact, out-of-the-way spot between the fan and the hot-end assembly. Great for keeping your hot-end’s footprint as small as possible!

• Requires 1x M3x10mm screw to attach the “Sneaky” mount to the MultiMount.
• Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
• Nozzle-to-Probe Offsets:
  • Left-mounted: [ -20, -17 ]

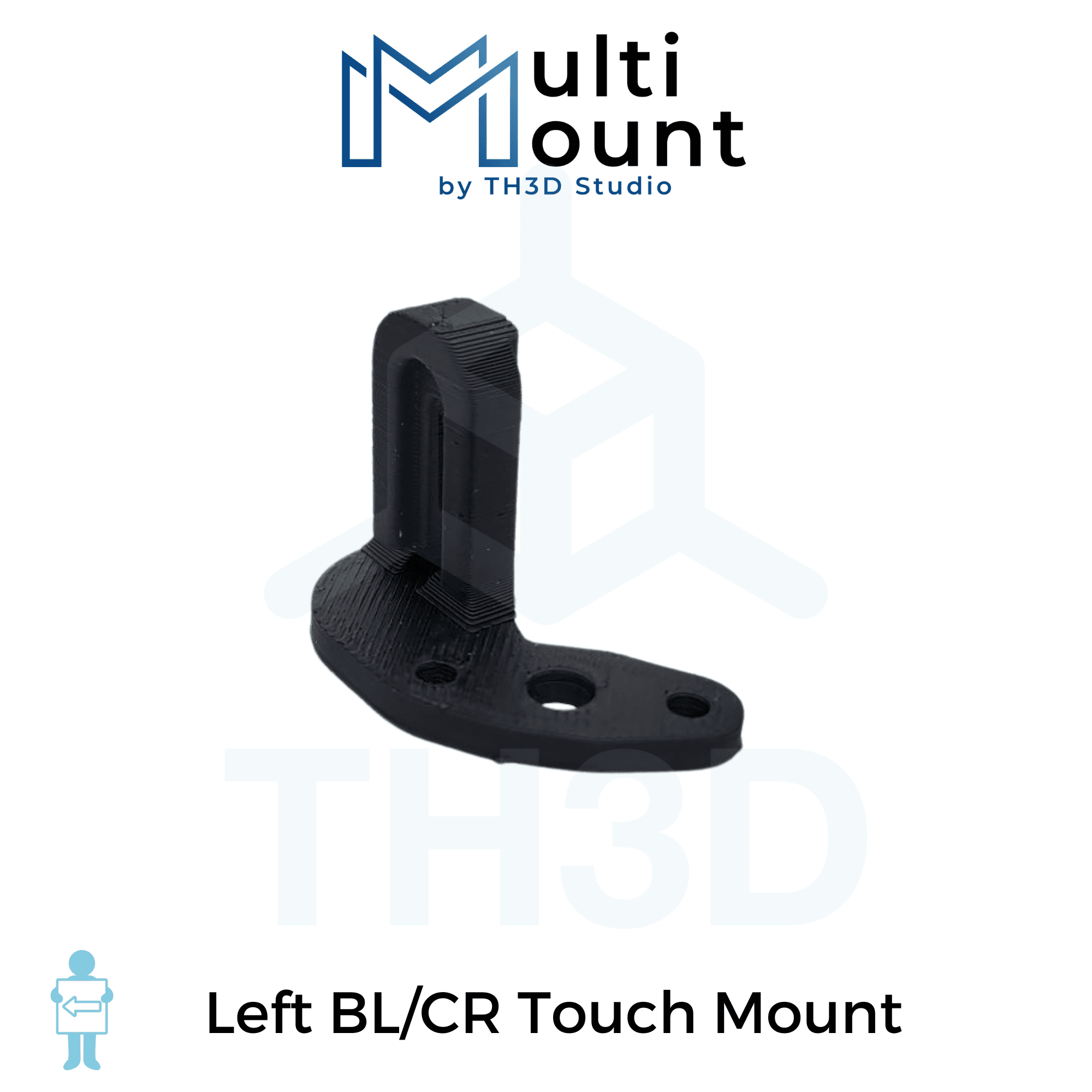

BLTouch Mount – Used to mount a BLTouch or CRTouch to the left-hand side of the MultiMount System.

• Requires 1x M3x10mm screw to attach the BLTouch/CRTouch mount to the MultiMount.
• Also requires the screws provided with the BLTouch/CRTouch to attach the device to the mount.
• Nozzle-to-Probe Offsets:
  • Left-mounted: [ -27, -9 ]

---

Installation Guides and Documentation

MultiMount System Installation Guide

MultiMount Accessories Installation Guide

---

Additional Information and FAQs

Manufacturing Details – 100% made in the USA! Our MultiMount accessories are designed and printed in-house by TH3D! We use Black ABS for our printed parts.

STL Files – Our full STL Package is included with the purchase of the MultiMount System kit and our Accessories Pack bundles. The STL Package is also available for standalone purchase.
