Right Side Addons for MultiMount System

Description

We have several accessories available for the right-hand side of our MultiMount System. Please read below for information about the variations we offer.

Need a 5015 Fan? We also carry 5015 Fans in 12V and 24V if you do not have one already.

• TH3D 12V 5015 Fan
• TH3D 24V 5015 Fan

---

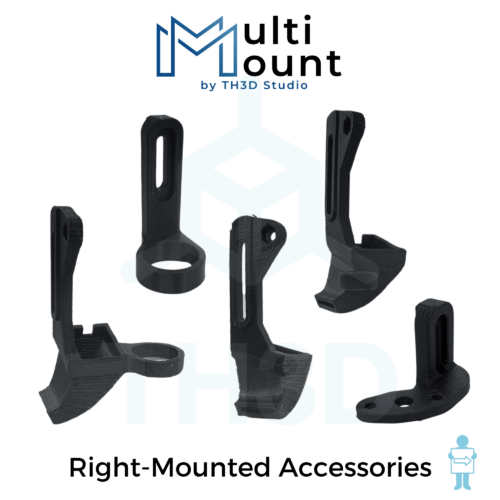

Right Side Accessory Types and Descriptions

Mount Types:

*ENDER 5/ENDER5 PLUS FITMENT WARNING:

Due to physical machine constraints the EZABL and EZABL+5015 mounts do not work on the left or right side for these models. There are specific LEFT mounted versions available just for the Ender 5 and Ender 5 Plus.

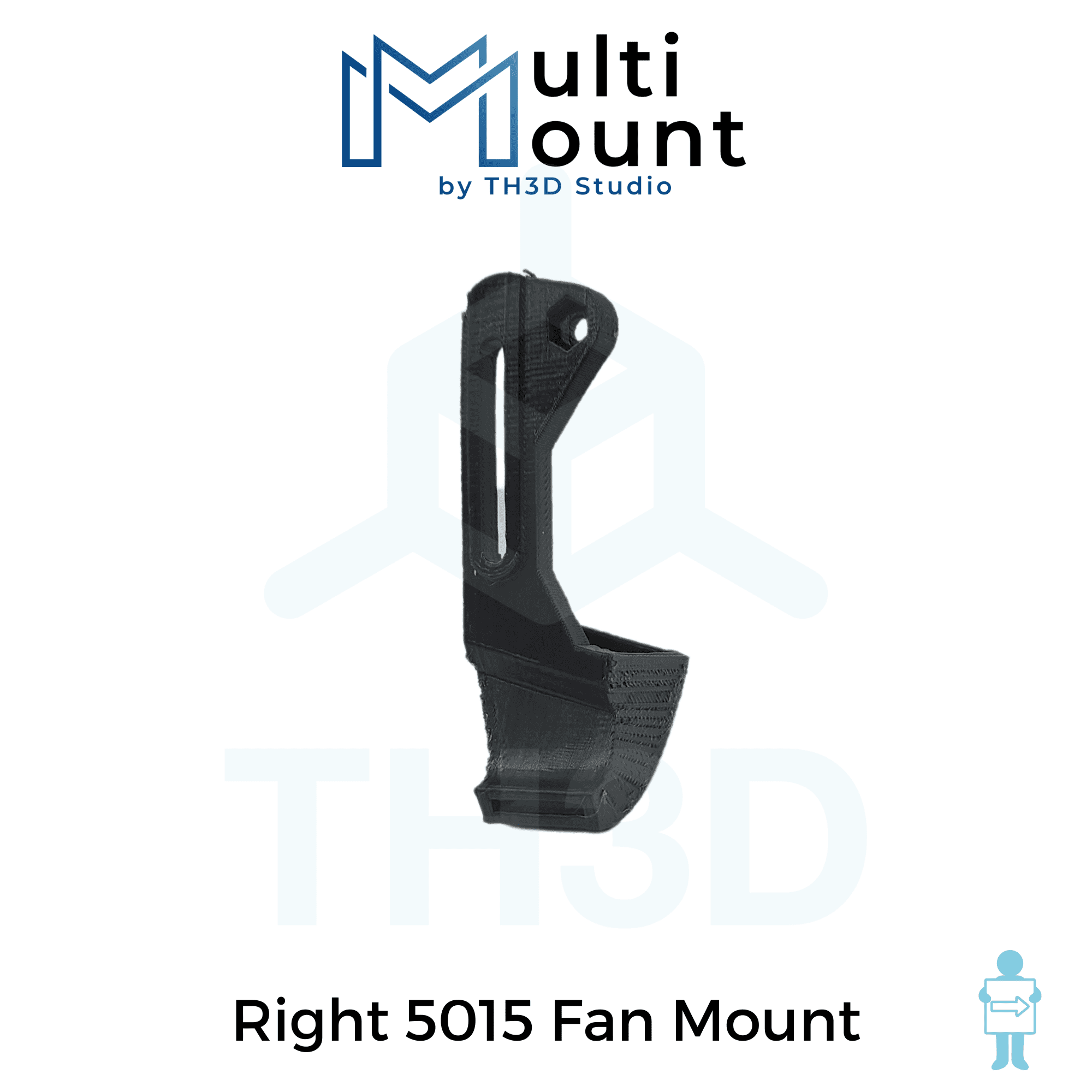

5015 Fan Duct – Used to mount a 5015 blower fan to the left-hand side of our MultiMount System. Simple, yet effective.

• Requires 1x. M3x10mm screw to attach the fan duct to the MultiMount.
• Also requires 1x M3x22mm and 1x M3 hex nut to attach the 5015 blower fan to the duct.

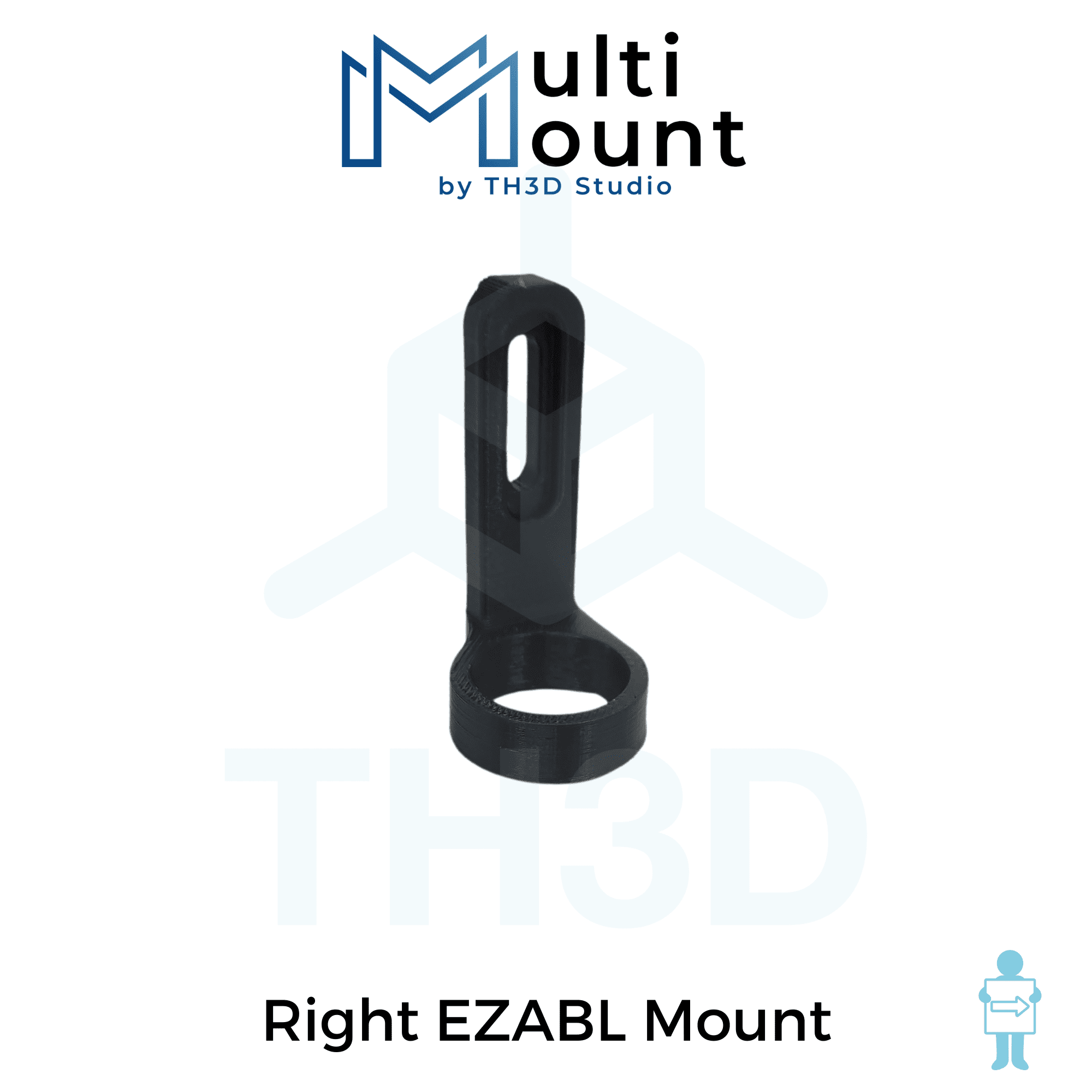

*EZABL Mount (18mm) – Used to mount any of our EZABL Pro™ sensors to the left-hand side of the MultiMount System. Designed for 18mm sensors, our smaller Mini and Micro EZABL sensors will require the use of their included adapter rings.

• Requires 1x M3x10mm screw to attach the EZABL mount to the MultiMount.
• Nozzle-to-Probe Offsets:
  • Right-mounted: [ 40, 5 ]

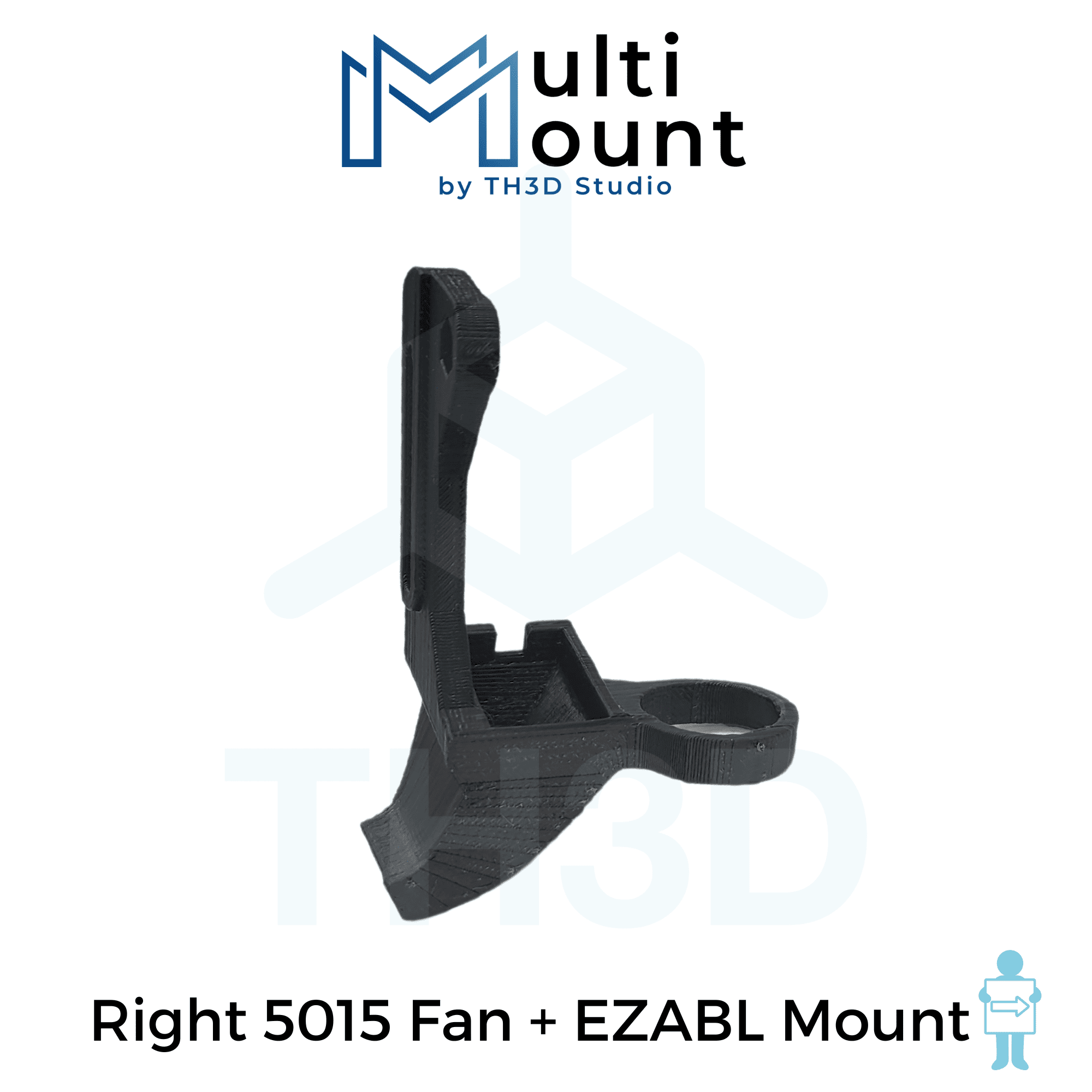

*Combination 5015 fan + EZABL Mount – Why settle for one when you could have both? This is a one-piece mount with spots for both a 5015 blower fan and our EZABL Pro™ sensors.

• Requires 1x M3x10mm screw to attach the 5015 + EZABL mount to the MultiMount.
• Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
• Nozzle-to-Probe Offsets:
  • Right-mounted: [ 57, -4 ]

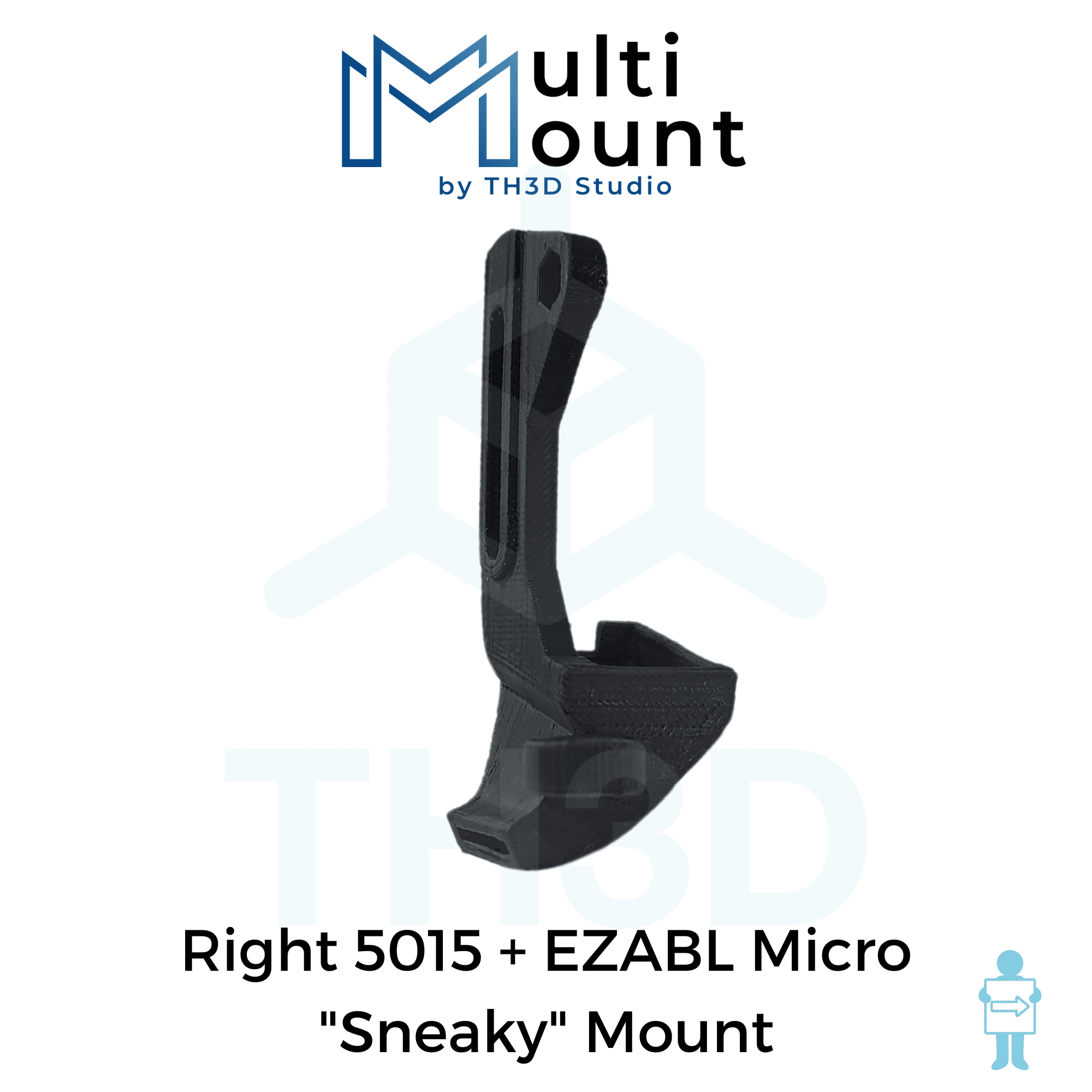

“Sneaky” EZABL Micro + 5015 Fan Mount – Designed to hide one of our EZABL Micro (8mm) sensors in a compact, out-of-the-way spot between the fan and the hot-end assembly. Great for keeping your hot-end’s footprint as small as possible!

• Requires 1x M3x10mm screw to attach the “Sneaky” mount to the MultiMount.
• Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
• Nozzle-to-Probe Offsets:
  • Right-mounted: [ 20, -17 ]

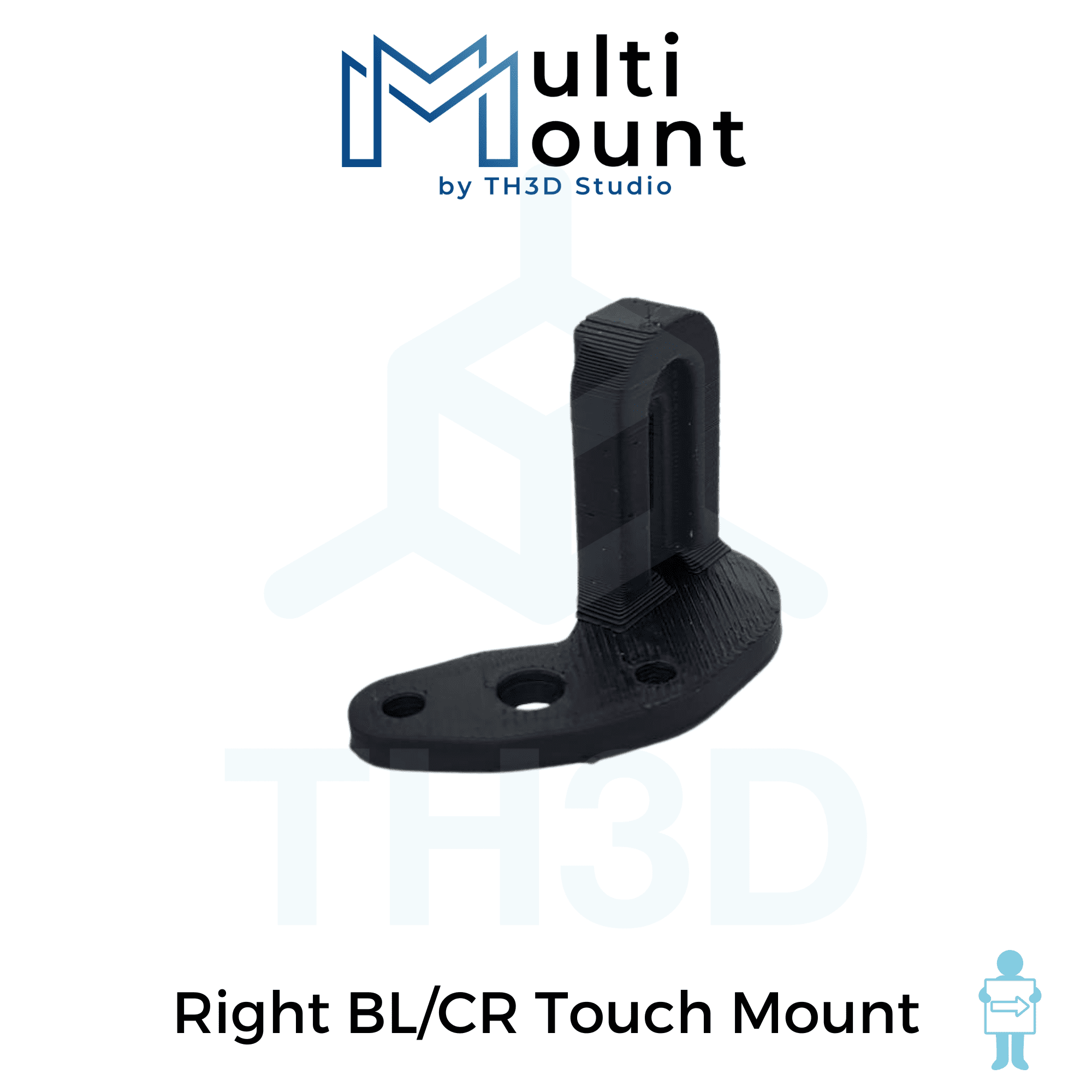

BLTouch Mount – Used to mount a BLTouch or CRTouch to the left-hand side of the MultiMount System.

• Requires 1x M3x10mm screw to attach the BLTouch/CRTouch mount to the MultiMount.
• Also requires the screws provided with the BLTouch/CRTouch to attach the device to the mount.
• Nozzle-to-Probe Offsets:
  • Right-mounted: [ 27, -9 ]

---

Installation Guides and Documentation

MultiMount System Installation Guide

MultiMount Accessories Installation Guide

---

Additional Information and FAQs

Manufacturing Details – The V2 aluminum bracket is designed in the USA and Made in China for TH3D with final packing and QC done in the USA. Our MultiMount accessories are designed and printed in-house by TH3D in the USA. We use Black ABS for our printed parts.

STL Files – Our full STL Package is included with the purchase of the MultiMount System kit and our Accessories Pack bundles. The STL Package is also available for standalone purchase.
