MultiMount V2 System by TH3D for Groovemount Hotends (V6/Revo6/Mosquito/DragonflyBMO)

4 reviews|1 answered question

Our MultiMount system can help you get the most out of your Creality printer by offering a sturdy collar-mount solution and modular accessories for a variety of hot-ends! Read more below!

From: $19.99

22 users have this item in wishlist

TH3D MultiMount V2 Aluminum Base

$19.99

Only 3 left in stock

OPTIONAL: Left Accessory

Looking for an accessory for the left side of our MultiMount System? We have several to choose from!

OPTIONAL: Right Accessory

Looking for an accessory for the right side of our MultiMount System? We have several to choose from!

OPTIONAL: Top Accessory

We have lots of accessories to use on the top of your MultiMount System! Choose from direct-drive adapters, fan mounts, and more!

Printer Adapter Plates for MultiMount System

These adapter plates sit between the X carriage and the MultiMount to let you install it on more machines. This is required for some models.

OPTIONAL: Clip-on 40mm Fan Duct

This clip-on 40mm fan duct is compatible with Tough Hot-end and E3D V6-compatible heatsinks!

OPTIONAL: 24v 5015 Fan

Need a fan (or two) to pair with our accessories? 24V-compatible version.

OPTIONAL: 12v 5015 Fan

Need a fan (or two) to pair with our accessories? 12v-compatible version.

Unified 2 Firmware - Select one if you want (Included FREE)

Only 3 left in stock

Description

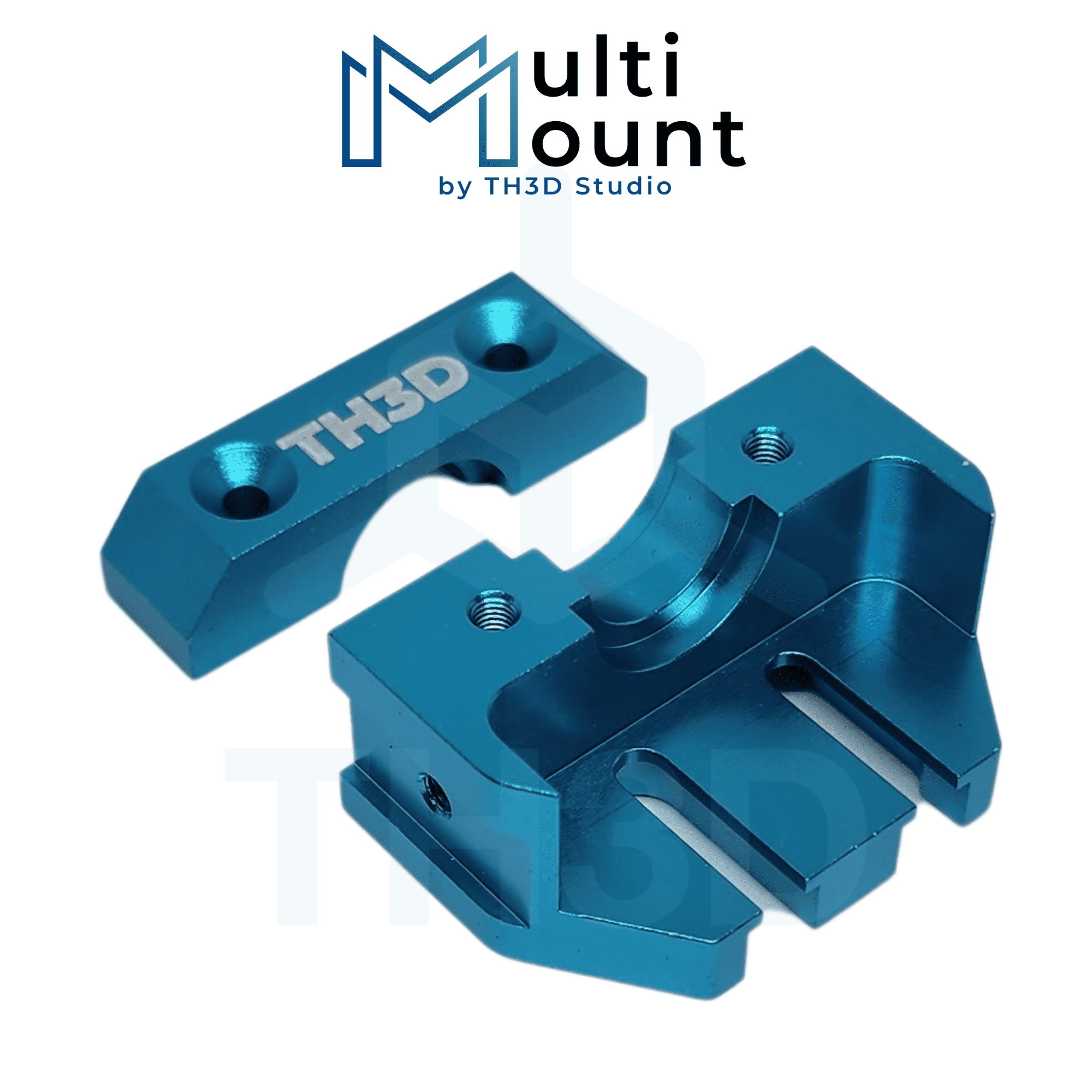

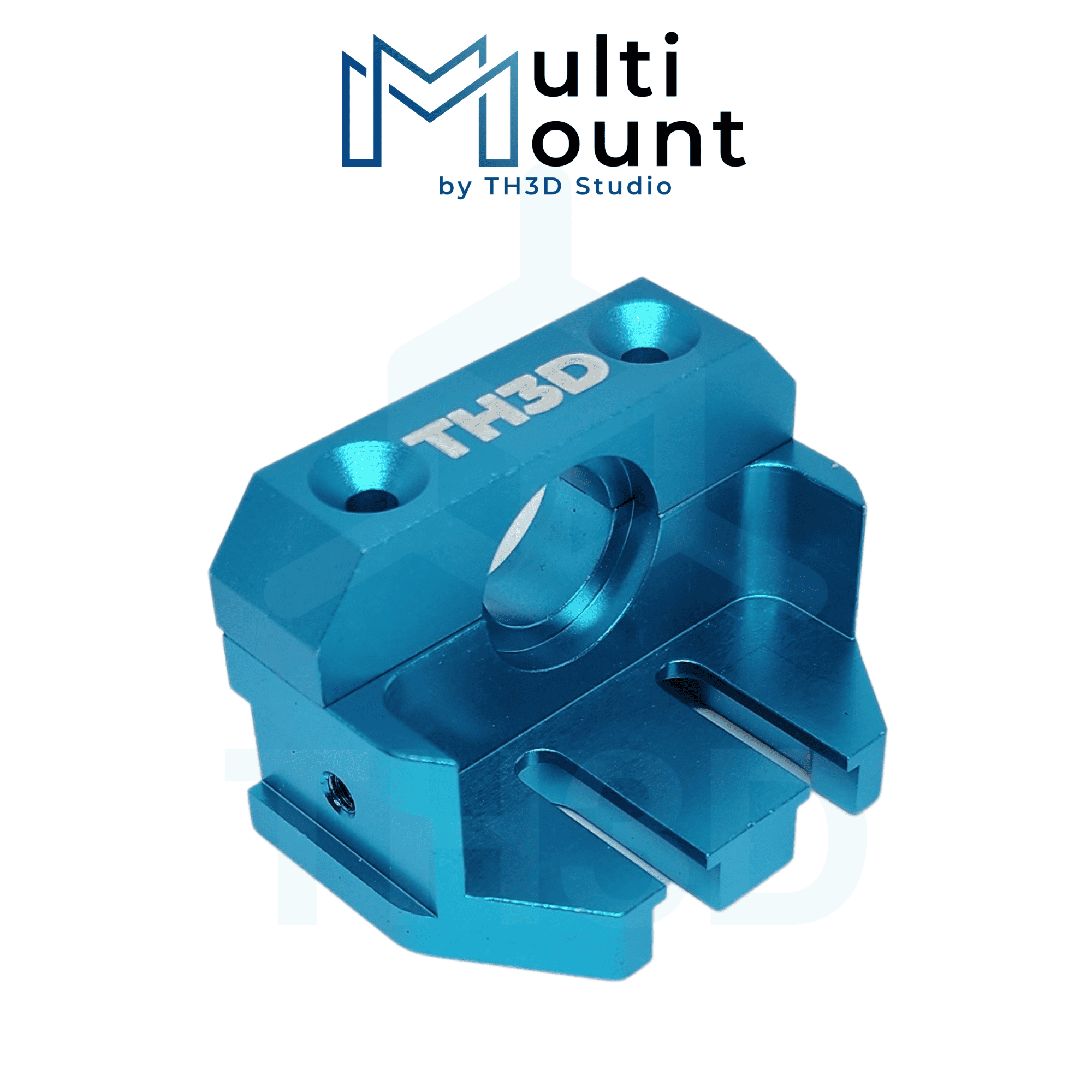

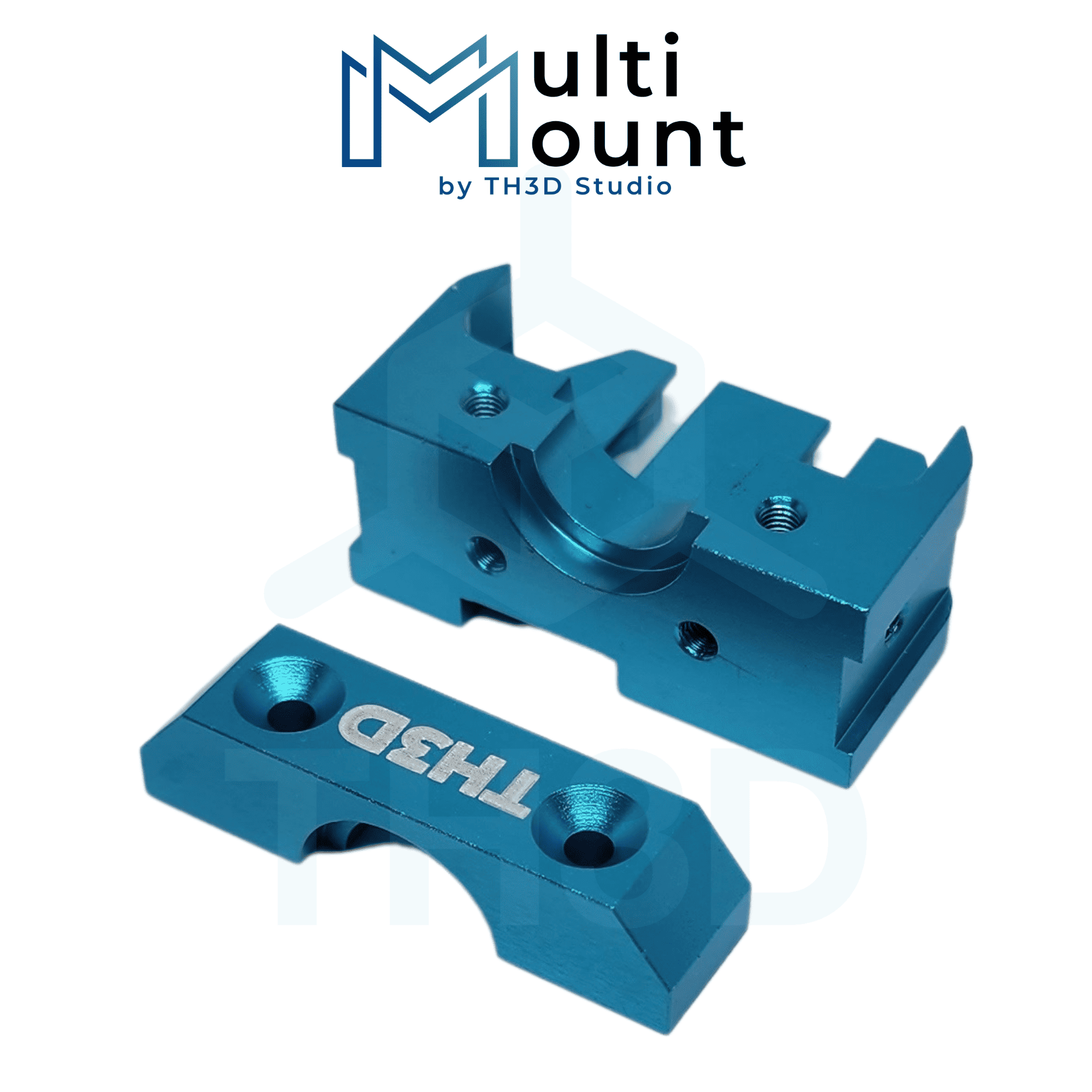

At its core, the MultiMount is an aluminum base that attaches to the existing screw standoffs on the hot-end carriage of printers such as the Ender 3, Ender 5, and CR-10, among others. It provides a rigid clamping system that is compatible with any V6-style or V6-compatible groove mount, keeping your chosen hot-end securely in place. The MultiMount’s compatibility with groove-mount hot-ends opens up a vast array of build possibilities for Creality users.

Have your eye on our Tough All-Metal Hot-end? Mounting it has never been easier! Simply clamp it in place. Drooling over a Slice Engineering Mosquito (requires the groove mount adapter from Slice)? The MultiMount can do that. How about a Phaetus Dragonfly BMO for a shiny aesthetic? The MultiMount can fit these hot-ends and more!

The MultiMount is also a truly modular system for attaching accessories such as fans, bed-leveling sensors, and more! Our team has been hard at work designing and testing accessories based on common builds and customer requests. It has mounting positions for accessories on the left, right, and top sides which allow for a vast array of different hot-end builds.

Note: The MultiMount System is compatible with stock Creality carriages for the printers listed in our compatibility list. May not be compatible with aftermarket carriages.

The MultiMount System has a modular design, allowing for a wide variety of printed accessories. There are mounting positions on the left and right side for accessories such as fan ducts and ABL mounts. There are also two screw positions on the top face for use with direct-drive adapters, strain-relief/cable management parts, and more.

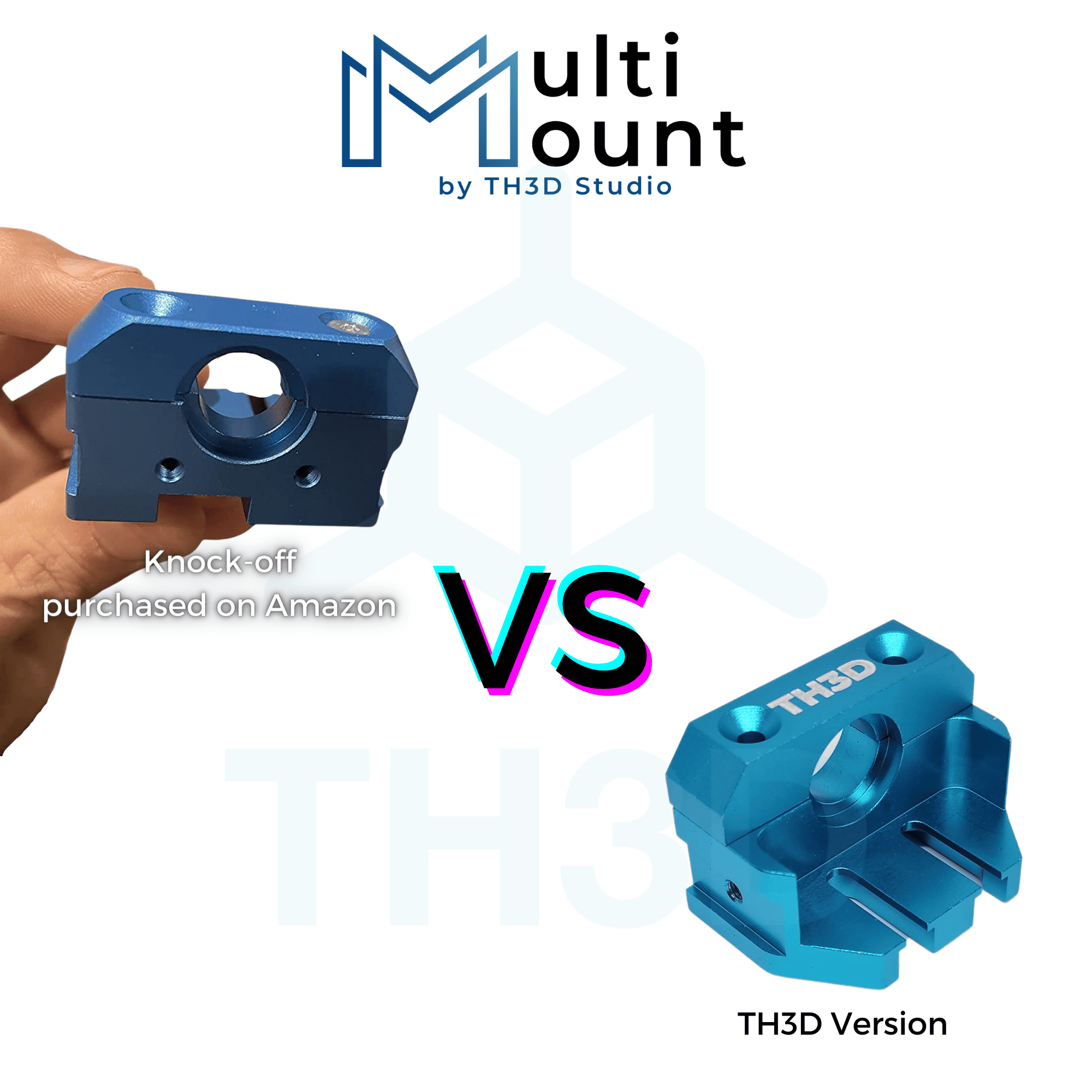

V1 vs V2?

Many people stated that the cost of the V1 was too high so the V2 is 50% lower cost then the V1. After working with overseas machinists we bring you the V2 that is designed in the USA and Made in China by a supplier we’ve been using for 6+ years for other metal parts we sell. The V2 version also does away with one toolpath on the clamp which also lowers the cost. All MultiMount addons are compatible with the V1 and V2. We QC EVERY V2 bracket to ensure you get a quality product even at the lower price. All printed parts are still 100% designed and made in the USA by TH3D.

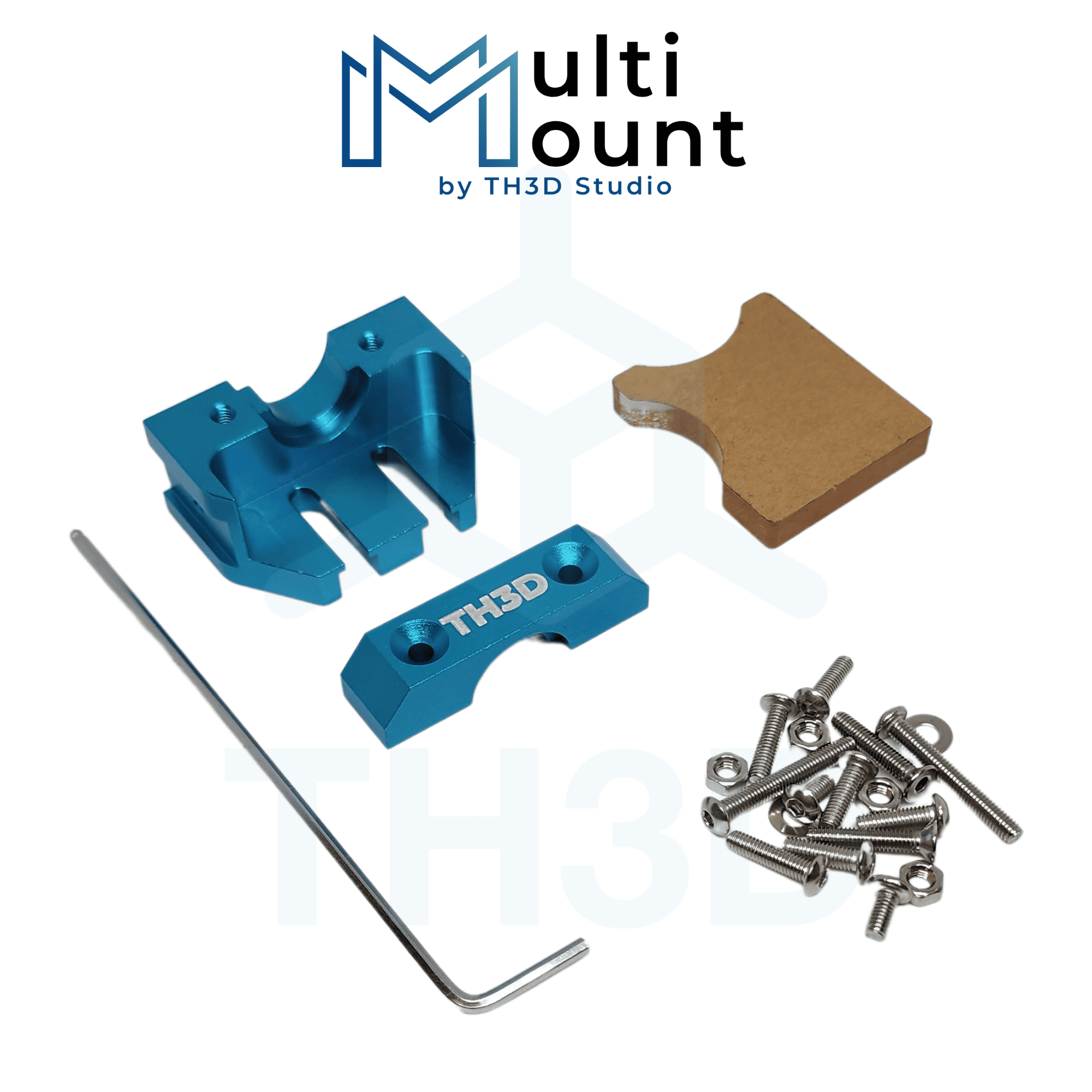

Kit Contents

What comes with the MultiMount System kit?

  • (qty 1) MultiMount Base and Clamp, anodized in blue with logo
  • (qty 2) M3×6 mm Flanged Button Head Screws (Attaches MultiMount base to printer carriage)
  • (qty 2) M3×12 mm Flat Head Screws (for the strain relief + clamp printable accessory)
  • (qty 2) M3×16 mm Flat Head Screws (Attaches MultiMount clamp to base, holding the hot-end in place)
  • (qty 4) M3×10 mm Button Head Screws (Attaches accessories to all four provided accessory locations, one on each side and two on top of the MultiMount base)
  • (qty 2) M3×22 mm Button Head Screws (for attaching 50mmx15mm blower fan to printable accessories)
  • (qty 4) M3 mm Hex Nuts (for strain relief + clamp and fan attachment)

The MultiMount System also includes access to our STL package, which includes STL files for all of the accessories we’ve designed, such as fan ducts, sensor mounts, direct-drive adapters, and more!

Additionally, we have a select set of accessories available to purchase along with your MultiMount kit. Pick-and-choose your accessories and we’ll print them for you!


Printer Compatibility List

TH3D Tested:

The MultiMount System base and clamp have been tested by our staff to work with several standard Creality carriages, including:

  • CR-10/CR-10S models (CR-10, Mini, S4, S5 with standard Creality X carriages)
  • Ender 3, Ender 3 Pro, Ender 3 V2
  • Ender 5, Ender 5 Pro, Ender 5 Plus (accessories specific to these models are available)

Requires Additional Components:

The following printers will require additional components to use the MultiMount System:

  • Ender 2 Pro (Requires printed adapter plate, contact us for details)
  • Ender 6 (Requires printed adapter plate, contact us for details)

This product is NOT compatible with the following:

These are printers or items we know are NOT compatible with this product:

  • Micro Swiss direct-drive brackets for Creality printers (several reasons, including alignment of the extruder vs. hot-end, design of the standoffs for the hot-end, etc.)

Printer not listed here?

The MultiMount System is considered a “universal” part that should fit most printers that use Creality’s hot-end screw positions. The MultiMount base and clamp may also be compatible with non-Creality printers. If your printer is not listed here, that means we have not tested it in-house and cannot guarantee compatibility.

If you are unsure if it is compatible with your printer, please contact us for assistance.


Hot-end Compatibility List

TH3D Tested:

The following hot-ends have been tested in-house to work with the MultiMount System:

  • TH3D Tough All-Metal Hot-End
  • E3D V6 and Volcano hot-ends
  • E3D Revo 6
  • Phaetus Dragonfly BMO (V6-compatible collar mount version)
  • Creality Spider (using included V6-compatible collar mount)
  • Slice Engineering Mosquito and Mosquito Magnum w/the Groovemount Adapter

Hot-end not listed here?

The MultiMount System is designed to work with any V6-compatible collar/groove mount. There may be hot-ends with collar/groove mounts that do not work with the Multi Mount due to variables such as heatsink size or shape, non-standard collar size or shape, manufacturing or product differences, etc.

If your hot-end is not listed here, that means we have not tested or verified fitment and cannot guarantee compatibility. If you have questions or concerns about compatibility, please contact us for assistance.

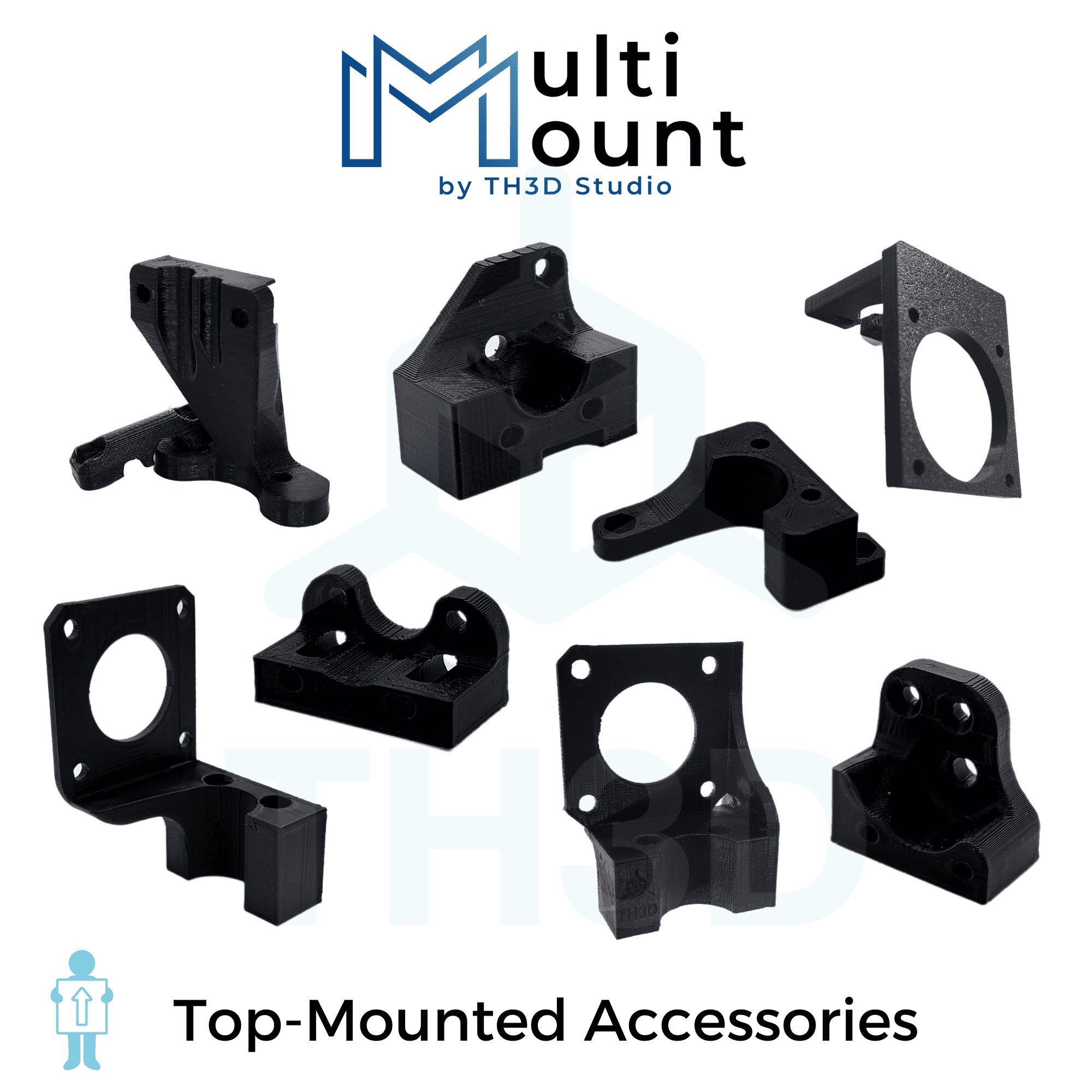

Top Addon Accessory Types and Descriptions

Strain Relief and Clamp – This is a two-part strain relief/cable guide that attaches to the top mounting points of the MultiMount System. This includes the strain relief base and a clamp to hold the cables and PTFE tubing in place.

  • Requires 2x M3x10mm screws to attach the strain relief base to the MultiMount base.
  • Also requires 2x M3x12mm screws and 2x M3 hex nuts to attach the strain relief clamp to the strain relief base.

Direct Drive Mount – Tough Extruder V2 – This bracket is used to convert a Bowden setup into Direct Drive based on our Tough Extruder V2. Also works with Bondtech BMG and clones.

  • Requires 2x M3x10mm screws to attach the Direct Drive Mount to the top of the MultiMount base.
  • Also requires the screws from the Tough Extruder V2 to hold the extruder and motor to the Direct Drive Mount.
  • This setup will also require a length of PTFE tubing to run between the hot-end and the Tough Extruder V2. Please see our installation instructions for more details.
  • We highly recommend using a pancake stepper motor with our Direct Drive mount, as it both saves weight and avoids collisions with the frame on CR-10/Ender 3 style machines.

40mm Heatsink Fan Mount, Generic version – This bracket can be used to attach a 40mm fan to the MultiMount System for the purpose of heatsink cooling. The generic version of this mount sits directly in front of the hot-end’s heatsink and does not have any additional ducting, making it perfect for use with most hot-ends on the market.

  • Requires 2x M3x10mm screws to attach the Heatsink Fan Mount to the MultiMount base.
  • Also requires additional screws to attach the fan to the Heatsink Fan Mount. In most cases, these screws can be repurposed from the existing fan shroud.

Direct Drive Mount – Tough Extruder V2 Rotated  – This bracket is used to convert a Bowden setup into Direct Drive based on our Tough Extruder V2. Also works with Bondtech BMG and clones.

  • Requires 2x M3x10mm screws to attach the Direct Drive Mount to the top of the MultiMount base.
  • Also requires the screws from the Tough Extruder V2 to hold the extruder and motor to the Direct Drive Mount.
  • This setup will also require a length of PTFE tubing to run between the hot-end and the Tough Extruder V2. Please see our installation instructions for more details.
  • We highly recommend using a pancake stepper motor with our Direct Drive mount, as it both saves weight and avoids collisions with the frame on CR-10/Ender 3 style machines.

Direct Drive Mount – LGX Lite – This bracket is used to convert a Bowden setup into Direct Drive based on the LGX Lite from Bondtech.

  • Requires 2x M3x10mm screws to attach the Direct Drive Mount to the top of the MultiMount base.
  • Requires 2x M3x10mm screws to attach the LGX Lite to the Direct Drive Mount.
  • This setup will also require a length of PTFE tubing to run between the hot-end and the extruder. Please see our installation instructions for more details.

Direct Drive Mount – LGX Lite Rotated – This bracket is used to convert a Bowden setup into Direct Drive based on the LGX Lite from Bondtech.

  • Requires 2x M3x10mm screws to attach the Direct Drive Mount to the top of the MultiMount base.
  • Requires 2x M3x10mm screws to attach the LGX Lite to the Direct Drive Mount.
  • This setup will also require a length of PTFE tubing to run between the hot-end and the extruder. Please see our installation instructions for more details.

Direct Drive Mount – Sherpa Mini – This bracket is used to convert a Bowden setup into Direct Drive based on the Sherpa Mini Extruder.

  • Requires 2x M3x10mm screws to attach the Direct Drive Mount to the top of the MultiMount base.
  • Requires 2x M3x10mm screws to attach the Sherpa Mini to the Direct Drive Mount.

Direct Drive Mount – Orbiter V2 – This bracket is used to convert a Bowden setup into Direct Drive based on the Orbiter V2.

  • Requires 2x M3x10mm screws to attach the Direct Drive Mount to the top of the MultiMount base.
  • Requires 2x M3x10mm screws to attach the Orbiter V2 to the Direct Drive Mount.

Left Side Accessory Types and Descriptions

Mount Types:

*ENDER 5/ENDER5 PLUS FITMENT WARNING:

Due to physical machine constraints the EZABL and EZABL+5015 mounts do not work on the left or right side for these models. There are specific LEFT mounted versions available just for the Ender 5 and Ender 5 Plus.

5015 Fan Duct – Used to mount a 5015 blower fan to the left-hand side of our MultiMount System. Simple, yet effective.

  • Requires 1x. M3x10mm screw to attach the fan duct to the MultiMount.
  • Also requires 1x M3x22mm and 1x M3 hex nut to attach the 5015 blower fan to the duct.

EZABL Mount (18mm) – Used to mount any of our EZABL Proâ„¢ sensors to the left-hand side of the MultiMount System. Designed for 18mm sensors, our smaller Mini and Micro EZABL sensors will require the use of their included adapter rings.

  • Requires 1x M3x10mm screw to attach the EZABL mount to the MultiMount.
  • Nozzle-to-Probe Offsets:
    • Left-mounted: [ -40, 5 ]

Combination 5015 fan + EZABL Mount â€“ Why settle for one when you could have both? This is a one-piece mount with spots for both a 5015 blower fan and our EZABL Proâ„¢ sensors.

  • Requires 1x M3x10mm screw to attach the 5015 + EZABL mount to the MultiMount.
  • Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
  • Nozzle-to-Probe Offsets:
    • Left-mounted: [ -57, -4 ]

Ender 5/5 Plus EZABL Mount (18mm) – Used to mount any of our EZABL Proâ„¢ sensors to the left-hand side of the MultiMount System. Designed for 18mm sensors, our smaller Mini and Micro EZABL sensors will require the use of their included adapter rings.

  • Requires 1x M3x10mm screw to attach the EZABL mount to the MultiMount.
  • Nozzle-to-Probe Offsets:
    • Left-mounted: [ -33, -9 ]

Ender 5/5 Plus Combination 5015 fan + EZABL Mount â€“ Why settle for one when you could have both? This is a one-piece mount with spots for both a 5015 blower fan and our EZABL Proâ„¢ sensors.

  • Requires 1x M3x10mm screw to attach the 5015 + EZABL mount to the MultiMount.
  • Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
  • Nozzle-to-Probe Offsets:
    • Left-mounted: [ -56, -9 ]

“Sneaky” EZABL Micro + 5015 Fan Mount – Designed to hide one of our EZABL Micro (8mm) sensors in a compact, out-of-the-way spot between the fan and the hot-end assembly. Great for keeping your hot-end’s footprint as small as possible!

  • Requires 1x M3x10mm screw to attach the “Sneaky” mount to the MultiMount.
  • Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
  • Nozzle-to-Probe Offsets:
    • Left-mounted: [ -20, -17 ]

BLTouch Mount – Used to mount a BLTouch or CRTouch to the left-hand side of the MultiMount System.

  • Requires 1x M3x10mm screw to attach the BLTouch/CRTouch mount to the MultiMount.
  • Also requires the screws provided with the BLTouch/CRTouch to attach the device to the mount.
  • Nozzle-to-Probe Offsets:
    • Left-mounted: [ -27, -9 ]

Right Side Accessory Types and Descriptions

Mount Types:

*ENDER 5/ENDER5 PLUS FITMENT WARNING:

Due to physical machine constraints the EZABL and EZABL+5015 mounts do not work on the left or right side for these models. There are specific LEFT mounted versions available just for the Ender 5 and Ender 5 Plus.

5015 Fan Duct – Used to mount a 5015 blower fan to the left-hand side of our MultiMount System. Simple, yet effective.

  • Requires 1x. M3x10mm screw to attach the fan duct to the MultiMount.
  • Also requires 1x M3x22mm and 1x M3 hex nut to attach the 5015 blower fan to the duct.

*EZABL Mount (18mm) – Used to mount any of our EZABL Proâ„¢ sensors to the left-hand side of the MultiMount System. Designed for 18mm sensors, our smaller Mini and Micro EZABL sensors will require the use of their included adapter rings.

  • Requires 1x M3x10mm screw to attach the EZABL mount to the MultiMount.
  • Nozzle-to-Probe Offsets:
    • Right-mounted: [ 40, 5 ]

*Combination 5015 fan + EZABL Mount â€“ Why settle for one when you could have both? This is a one-piece mount with spots for both a 5015 blower fan and our EZABL Proâ„¢ sensors.

  • Requires 1x M3x10mm screw to attach the 5015 + EZABL mount to the MultiMount.
  • Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
  • Nozzle-to-Probe Offsets:
    • Right-mounted: [ 57, -4 ]

“Sneaky” EZABL Micro + 5015 Fan Mount – Designed to hide one of our EZABL Micro (8mm) sensors in a compact, out-of-the-way spot between the fan and the hot-end assembly. Great for keeping your hot-end’s footprint as small as possible!

  • Requires 1x M3x10mm screw to attach the “Sneaky” mount to the MultiMount.
  • Also requires 1x M3x22mm screw and 1x M3 hex nut to attach the 5015 blower fan to the duct.
  • Nozzle-to-Probe Offsets:
    • Right-mounted: [ 20, -17 ]

BLTouch Mount – Used to mount a BLTouch or CRTouch to the left-hand side of the MultiMount System.

  • Requires 1x M3x10mm screw to attach the BLTouch/CRTouch mount to the MultiMount.
  • Also requires the screws provided with the BLTouch/CRTouch to attach the device to the mount.
  • Nozzle-to-Probe Offsets:
    • Right-mounted: [ 27, -9 ]

Adapter Plate Types and Descriptions

Ender 2 Pro – This allows you to mount the MultiMount to the Ender 2 Pro X carriage. Includes required M3x12mm bolts.

Ender 6 – This allows you to mount the MultiMount to the Ender 6 X carriage. Includes required 2x M3x12mm bolts.

Sovol SV01/SV03 – This allows you to mount the MultiMount to the SV01/SV03 X carriage. Includes required 2x M3x12mm bolts and 2x M3 Nuts that install in the rear of the adapter plate.


Installation Guides and Documentation

MultiMount System Installation Guide

MultiMount Accessories Installation Guide


Additional Information and FAQs

Manufacturing Details – The V2 aluminum bracket is designed in the USA and Made in China for TH3D with final packing and QC done in the USA. Our MultiMount accessories are designed and printed in-house by TH3D in the USA. We use Black ABS for our printed parts.

STL Files – Our full STL Package is included with the purchase of the MultiMount System kit and our Accessories Pack bundles. The STL Package is also available for standalone purchase.

Additional information

TH3D MultiMount V2 Aluminum Base

Weight 2.5 oz
Dimensions 2 × 1 × 1.5 in
Made In

🇨🇳 China w/QC in 🇺🇸 USA

Warranty Length

6 Months

OPTIONAL: Left Accessory

Weight 2 oz
Dimensions 3 × 1 × 1 in
Mount Type

5015, EZABL, 5015 + EZABL, BLTOUCH, "Sneaky" EZABL Micro + 5015, Ender 5/5 Plus EZABL, Ender 5/5 Plus 5015 + EZABL

Made In

🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials)

Warranty Length

6 Months

OPTIONAL: Right Accessory

Weight 2 oz
Dimensions 3 × 1 × 1 in
Mount Type

5015, EZABL, 5015 + EZABL, BLTOUCH, "Sneaky" EZABL Micro + 5015

Made In

🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials)

Warranty Length

6 Months

OPTIONAL: Top Accessory

Weight N/A
Dimensions N/A
Accessory Type

Strain Relief and Clamp, Direct Drive Mount – Tough Extruder V2/BMG, 40mm Heatsink Fan Mount – Generic, Direct Drive Mount – LGX Lite, Direct Drive Mount – LGX Lite Rotated, Direct Drive Mount – Tough Extruder V2/BMG Rotated, Direct Drive Mount – Orbiter V2, Direct Drive Mount – Sherpa Mini

Made In

🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials)

Warranty Length

6 Months

Printer Adapter Plates for MultiMount System

Weight 3 oz
Dimensions 3 × 3 × 0.5 in
Printer Model

Ender 2 Pro, Ender 6, Sovol SV01/SV03

Made In

🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials)

Warranty Length

6 Months

OPTIONAL: Clip-on 40mm Fan Duct

Weight 0.4 oz
Dimensions 2.5 × 1.5 × 1.5 in
Made In

🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials)

Warranty Length

6 Months

OPTIONAL: 24v 5015 Fan

Weight 3 oz
Dimensions 3 × 3 × 1 in
Made In

🇨🇳 China

Warranty Length

6 Months

OPTIONAL: 12v 5015 Fan

Weight 1 oz
Dimensions 3 × 3 × 1 in
Made In

🇨🇳 China

Warranty Length

6 Months

Unified 2 Firmware - Select one if you want (Included FREE)

Update Length

3 Months

Firmware Package

ADIM Ramps Printers, Alfawise Ramps Printers, AnyCubic Ramps Printers, Artillery Ramps Printers, BTT SKR 2 Printers (DIY Firmware), Creality Ramps Printers, Creality E3-FreeRuns Board, Creality V4X Stock Printers, Creality V4.2.7 Board, Creality Ender 3 S1 Printers, Creality Ender 7 Printer, Geeetech Ramps Printers, JGMaker Ramps Printers, Kingroon Robin Mini Printers, Kingroon V1.2 Printers, MKS SGen L V2 Board (DIY Firmware), MKS Monster 8 V2 Board (DIY Firmware), BTT SKR E3 Mini V1/V1.2/V2 Boards, BTT SKR E3 Mini V3/V3.0.1 Boards, Sovol Ramps Printers, Sovol V131 Printers, Sovol V4X Printers, Sunlu Ramps Printers, Tevo Ramps Printers, Tina 2 Ramps Printers, Wanhao Ramps Printers, Zyltech Robin Nano Printers, Voxelab V1XX Printers, I do not want any firmware

Made In

🇺🇸 USA

4 reviews for MultiMount V2 System by TH3D for Groovemount Hotends (V6/Revo6/Mosquito/DragonflyBMO)

5.0
Based on 4 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
1-4 of 4 reviews
  1. I’ve been looking for a metal mount for my machines. Man dud this go beyond my expectations. Sturdy, strong, easy to remove. Will get another for my other printer.

    (1) (0)
  2. I bought the original version from the creator and now that th3d has taken over its even better! The dual fan set up with abl is next level

    (1) (0)
  3. Very modular and easy to set up and use. Definitely recommend if you’re looking for a way to mount a V6 style hot end.

    (1) (0)
  4. Avatar photo

    Quality parts and comes with everything you need to get going. Honestly an absolute must upgrade over most stock setups. Pairs up great with the Tough Extruder and Tough Hotend.

    (1) (0)
Add a review
You must be logged in to post a review Log In

Q & A

Hey, any plans to make a mount for the tough extruder V1? I have 2 and I'd like to use them with the multi mount. Thanks. Ruben Leija asked on September 15, 2023

We have one in testing. Please email us once you purchase the MultiMount and we can send you the beta STL files to test out with the V1 Tough Extruder.

Tim Hoogland answered on September 17, 2023 store manager
(2) (0)

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

SHARE YOUR CART
