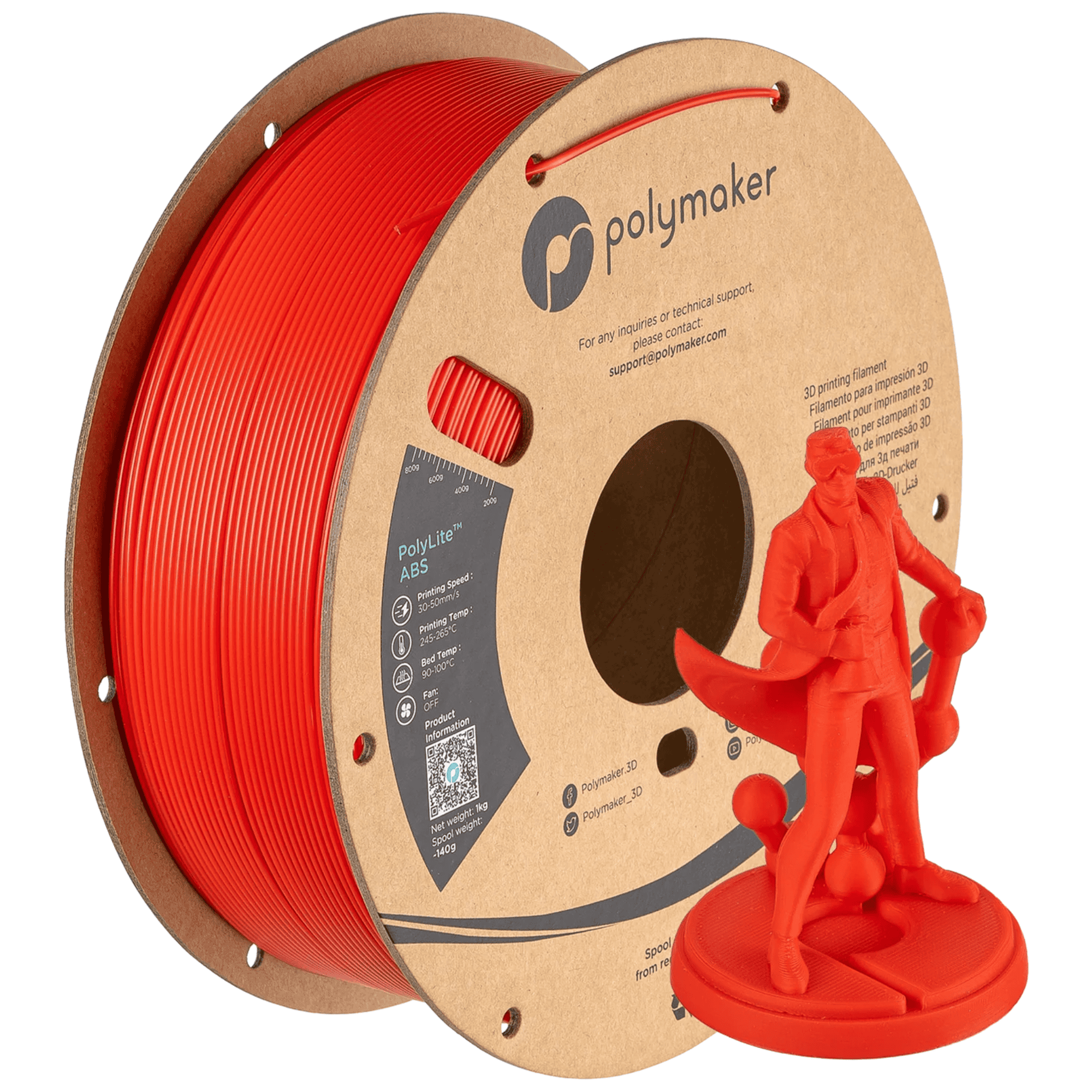

Polymaker PolyLite™ Red ABS – 1KG 1.75mm

Print Settings

PolyLite™ ABS is made with a specialty bulk-polymerized ABS resin, which has significantly lower volatile content compared to traditional ABS resins. It delivers excellent printing quality with minimal odor during printing

Polymaker PolyLite™ ABS Information

Printing and Drying Settings?

Printing Temperature: 245˚C – 265˚C
Bed Temperature: 90˚C – 100˚C
Printing Speed: 30mm/s – 50mm/s
Fan: OFF

Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Bowden:
Retraction Distance: 3mm
Retraction Speed: 40mm/s

Drying Settings: 70˚C for 6h
(Only if the material has absorbed moisture)

Spool Dimensions?

1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g

Printing ASA/ABS – When printing ASA/ABS you must use an enclosure to prevent warping and layers de-laminating. We sell enclosures in our shop here.

Prints not sticking? – For all materials we highly recommend Bed Cement to stick your prints down if you are having issues with adhesion.

Filament Support Information

Help Center – If you need help tuning a filament or want recommended print temperatures you can check our filament section of our Help Center here: Filament – TH3D Studio LLC

Filament Handling

When handling filament the end should be:

1. On the spool
2. In your hand
3. Loaded in the printer

Do NOT let the end of the filament go when handling it as you can cause the spool to tangle. Filament cannot tangle on its own. Returns/refunds will not be issued if you tangle a spool. Due to how filament is spooled onto the roll it is impossible to get a tangled spool from a new spool.
