Creality CR-10 S5 Silicone Heater Pad (508mm x 508mm) – 1300W 120V AC

Name: Creality CR-10 S5 Silicone Heater Pad (508mm x 508mm) - 1300W 120V AC
Brand: Generic
SKU: CR10S5_AC_BEDPAD
Availability: InStock

$149.99

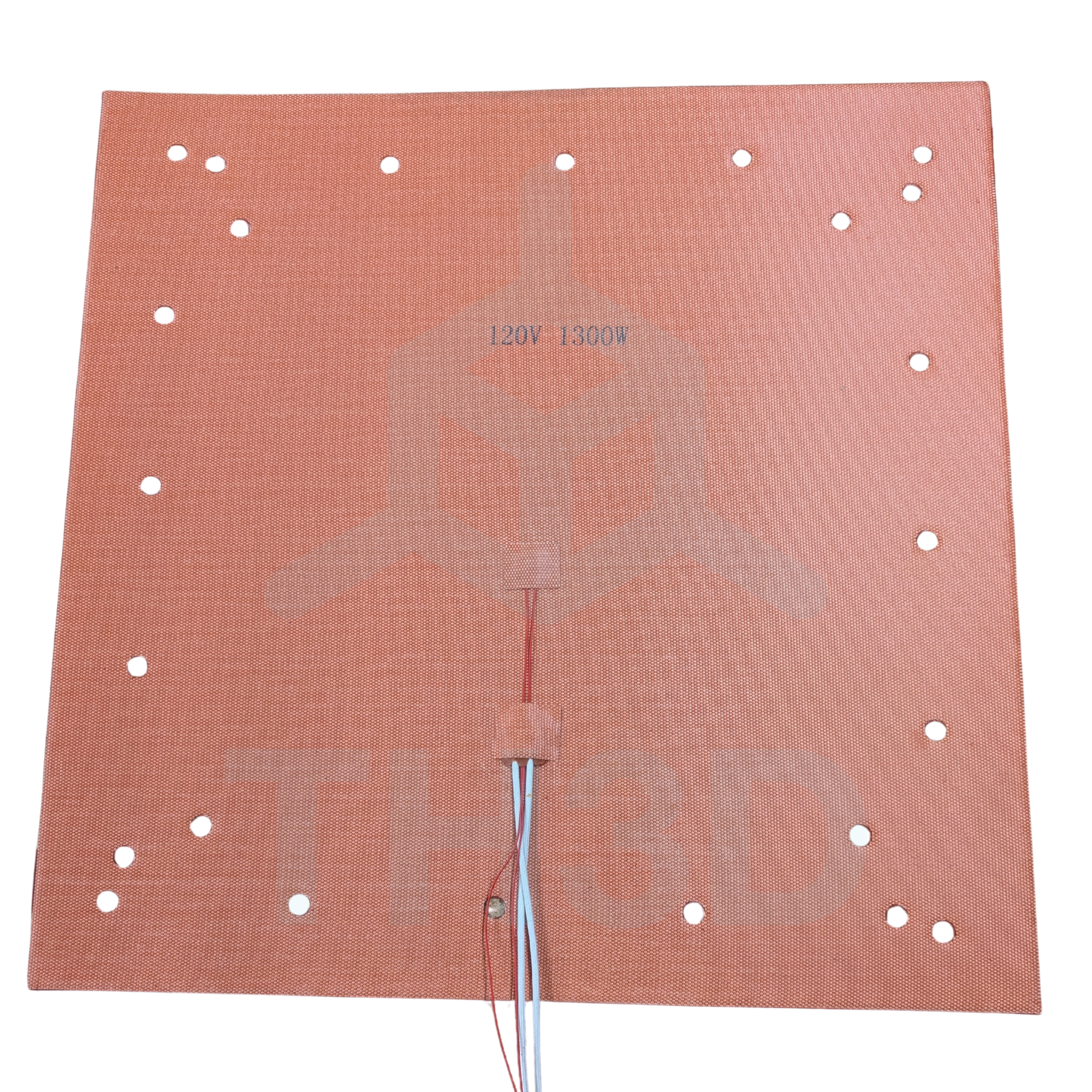

Designed specifically for the Creality CR-10 S5, this 120V AC silicone heater delivers 1300W of power for rapid bed heating. It is constructed with premium US-imported silicone rubber and features pre-applied 3M adhesive for easy installation. The pad includes 24 pre-cut holes, making it compatible with both the modern 24-hole and legacy 4-hole aluminum build plates. It comes pre-wired with a 1.5-meter NTC 100K 3950 thermistor and 1.5-meter power leads.

Installation Requirement: Because this is a high-voltage AC heater, it requires a Solid State Relay (SSR) to be controlled by your printer’s motherboard. We highly recommend our High Power SSR for this application.

Important: This heater operates on 120V only. Please verify that the 24-hole pattern matches your specific build plate before purchasing.

Only 2 left in stock

Recommended Accessories

TH3D 25A AC/DC SSR for AC Heated Bed Control with Locking Safety Cover

Control your AC bed with a SSR just like your stock bed! High quality and actually 25A rated unlike SSRs from other sellers like Amazon or eBay.

Can be operated on 3-32V DC for control - Works with printer boards, Raspberry Pi, ESPs, Ardunio, and More!

Add for

Quick Solder Wire Connectors - 10-26 AWG, 400 Piece - Solder Seals

Add for

Automatic Wire Stripper Tool Kit, Adjustable Stripper for 22-10 AWG with Insulated Terminals and Cable Tie - ICP-338

MULTI-FUNCTIONALITY: ICP-338 wire stripper kit contains a wire stripper, 169pcs insulated terminals, 60pcs cable ties, 30pcs banding wire. Wire stripper has cutting, stripping, and crimping functions to meet different needs. The stripping and crimping range is 22-10 AWG.
QUICK STRIP: Precision automatic wire stripping ports make it easy to remove insulation without damaging the core.
LENGTH CONTROL: The length adjustment device can control the length of the stripped core wire to adapt to different cable specifications.
SPECIAL DESIGN: The anti-skid crimp teeth design can fix the cable without displacement, and the strength setting can control the stripping force, which makes the stripping work more labor-saving.
APPLICATION: ICP-338 suitable for electricians, DIY enthusiasts and others who need to handle wires. It can be used for power cords, audio cords, control cords and other electronic devices.

Add for

Purchase & earn 150 points!

SKU: CR10S5_AC_BEDPAD Category: Upgrade Kits Tags: 110V Heated Bed, 120V 3D Printer Heater, 1300W Heater Pad, 3D Printer Parts, 508mm Silicone Heater, AC Heated Bed, CR-10 S5 Heated Bed, CR-10 S5 Upgrade, CR10 S5 Bed Replacement, Creality CR-10 S5, Large Format 3D Printer Bed, Mains Voltage Heater, NTC 100K 3950, Silicone Heat Pad, SSR Compatible Bed, TH3D Studio Brand: Generic

Description

Upgrade your Creality CR-10 S5 with this high-performance 120V AC silicone heating pad. Manufactured using premium silicone rubber imported from the United States and backed with genuine 3M adhesive, this bed offers superior reliability and thermal conductivity compared to standard generic heat beds. Every unit is rigorously tested prior to shipping to ensure safety and performance.

Installation & Control Because this is a high-voltage 120V AC heater, it cannot be powered directly by the printer motherboard. You must use a Solid State Relay (SSR) to control the bed safely. We recommend our External High Power SSR for seamless integration with your printer control board. See our wiring diagram here: https://tickets.th3dstudio.com/products/article/ac-bed-wiring-with-a-ssr-for-control

Compatibility This heater is designed with 24 pre-made 12mm screw holes, making it fully compatible with the newer 24-hole CR-10 S5 build plates and the older 4-hole build plates. It is also backward compatible with the older 4-hole version.

Technical Specifications:

Voltage: 120V AC Only
Size: 508mm x 508mm
Power: 1300W (Rapid heating)
Sensors: Integrated NTC 100K 3950 thermistor (2 meters)

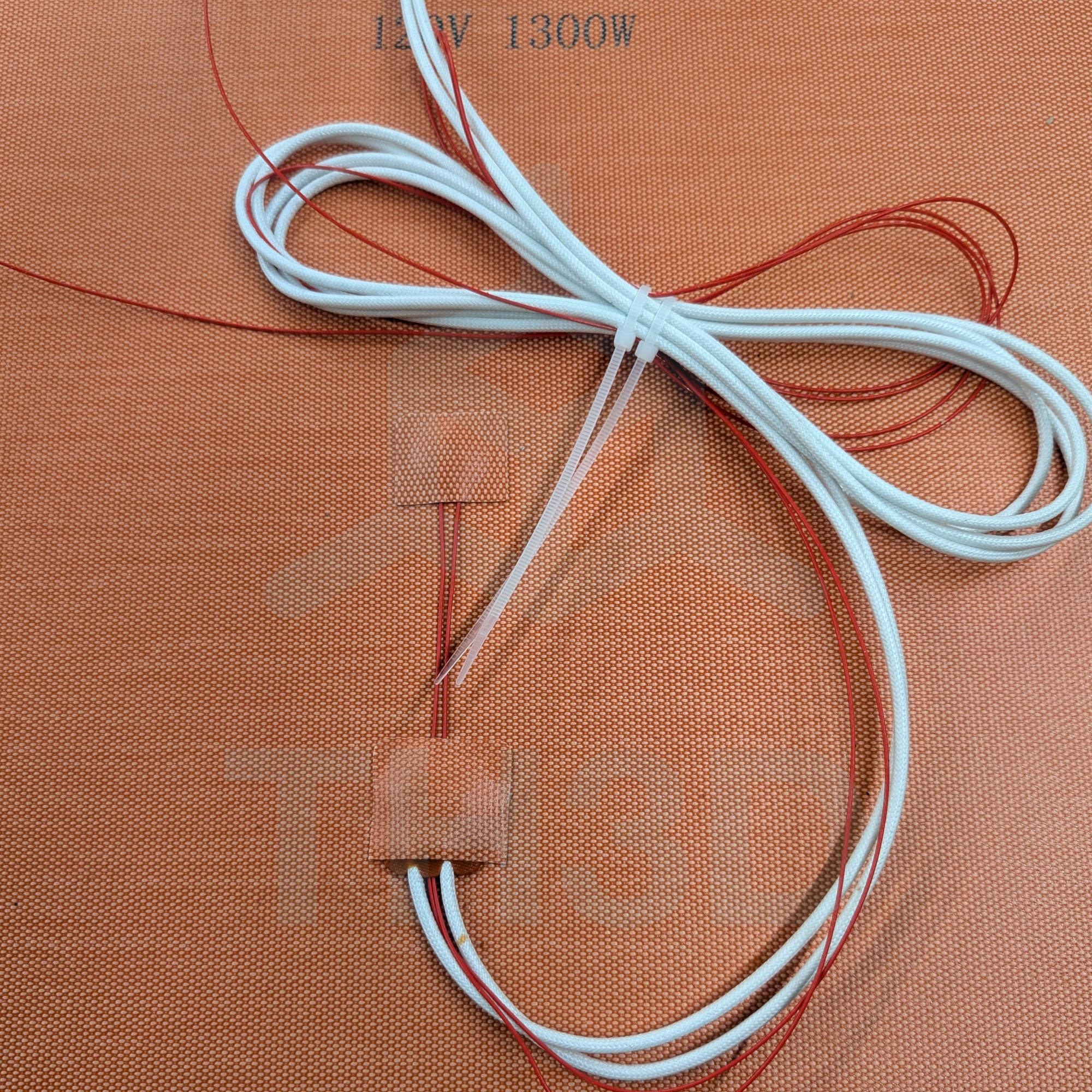

Wiring: Includes two power wires and two thermistor wires (1.5 meter length, pre attached to pad)

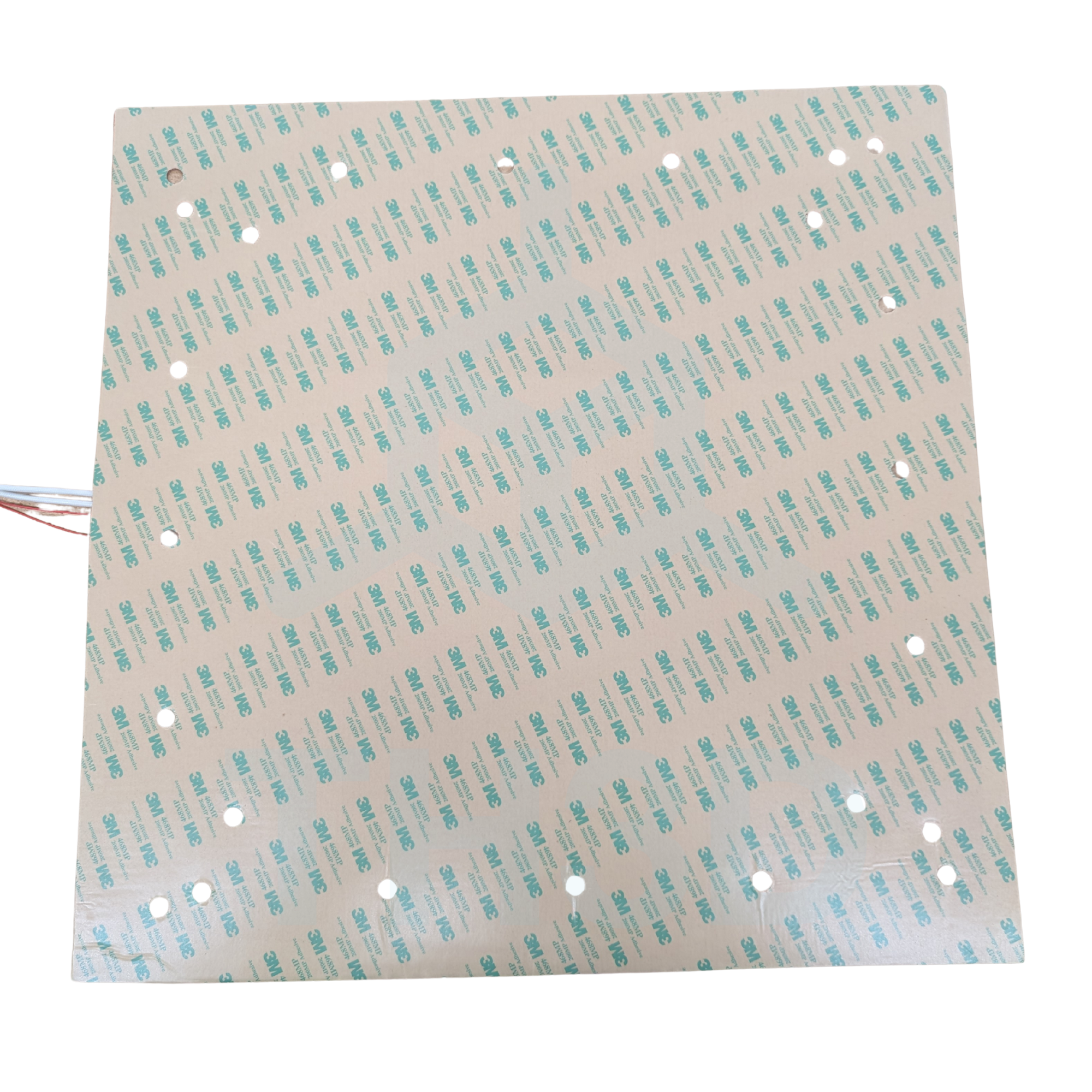

Mounting: Pre-applied 3M Adhesive Backing – Mounts between the black bed plate and the silver aluminum frame. REMOVE THE STOCK 310x310MM DC BED HEATER BEFORE INSTALLATION

Important Compatibility Note: Before purchasing, please verify your build plate’s mounting pattern. The hole pattern on the adhesive side of this heater must align with the front view of your 24-hole build plate.

DIY Pricing: Support Not Included
To keep our part prices as low as possible, this item does not include technical support.

Need help installing or troubleshooting?
We offer paid Priority Email Support and Live Expert Consultations starting at just $35.

Click here to view Support Options
