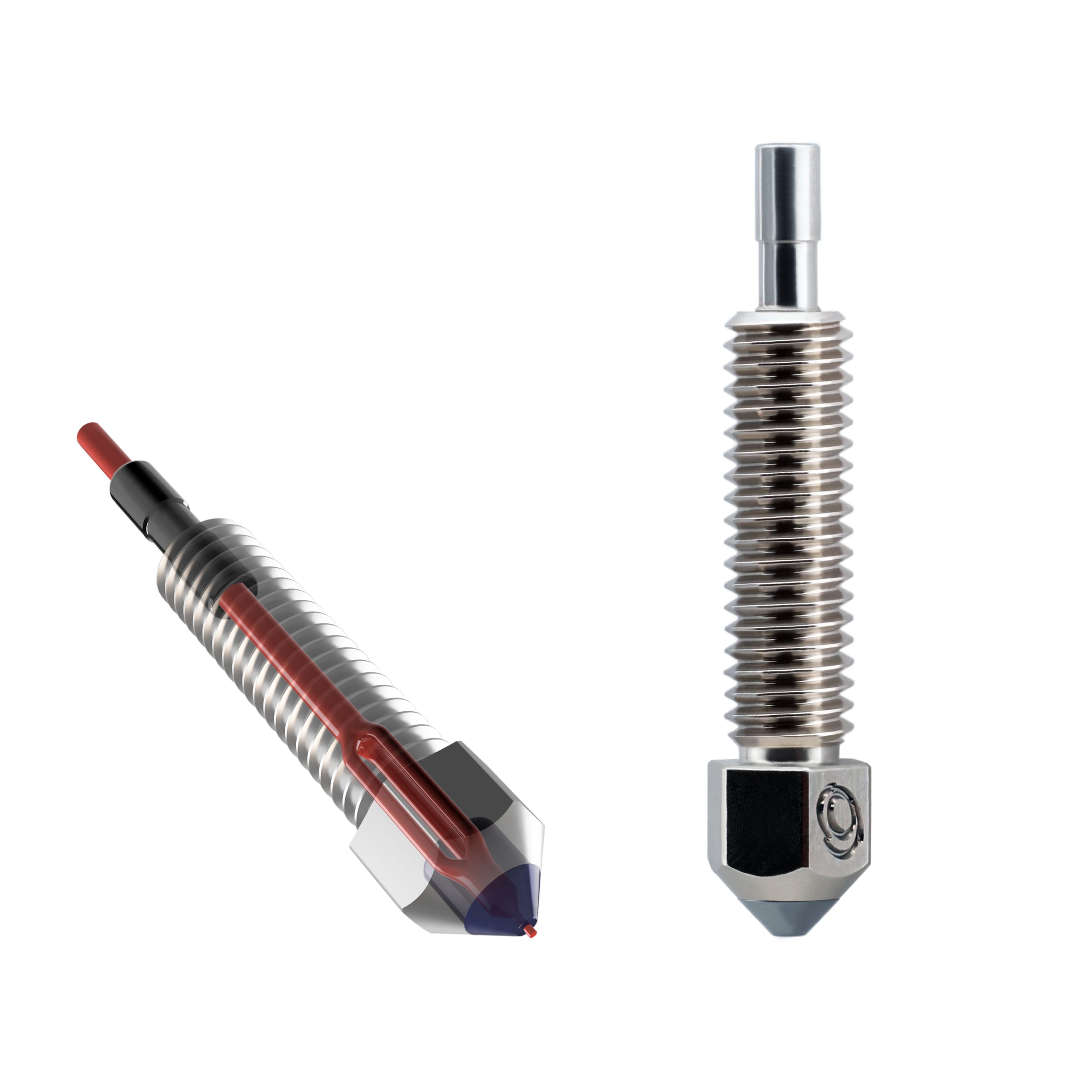

FlowTech™ CHT High Flow – CM2™ Nozzle
$29.95
Microswiss and Bondtech have partnered to bring the High Flow, Hardened Tip CM2™ nozzle to the FlowTech ecosystem. This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special WS2 nonstick nano coating.
CHT – CM2™ Nozzle Features:
- Copper Chromium Zirconium body
- Plated with an Electroless Nickel Plating
- M2 Hardened High Speed Steel insert
- Plated with an Electroless Nickel Plating
- Coated with nonstick nano WS2 coating.
- Coefficient of friction: 0.035
- Heat-treated hardness: 68 HRC
- High Flow CHT Technology

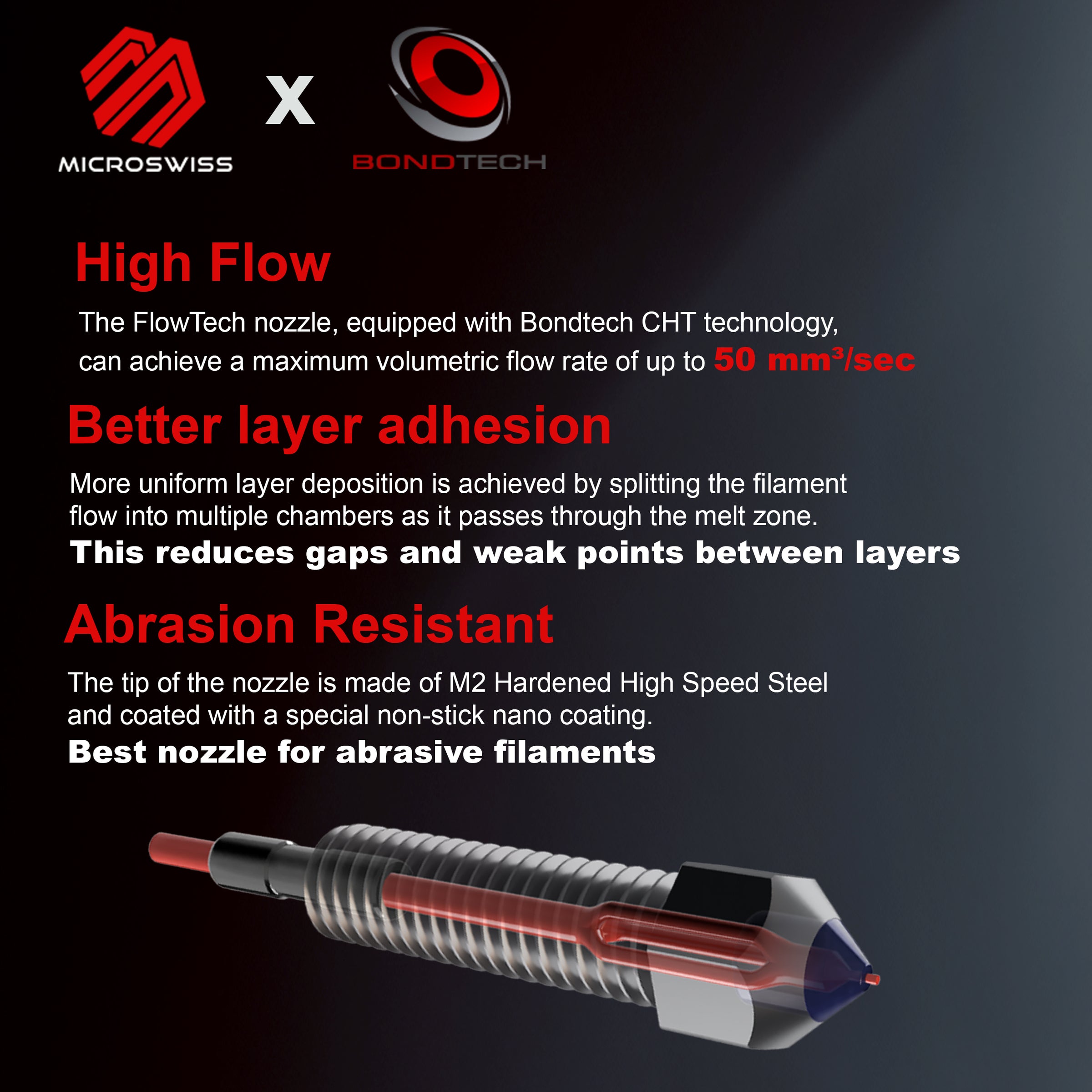

- The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
- More uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers
- The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
- Max Temperature: 450°C
- Orifice size available: .4mm, .6mm, .8mm, 1.0mm
Description
Printing with a 0.8mm or larger nozzle? Read our guide here: https://tickets.th3dstudio.com/products/article/tips-for-printing-with-large-nozzles-0-8mm-and-up
Lower Prices, Flexible Support Options!
To offer you the best possible pricing, this product does not include technical support. However, if you ever need assistance, we offer affordable support options that you can purchase separately:
- Email Support: $35 per ticket
- Remote Video Call with PC Access: $40 for 30 minutes | $60 for 60 minutes
Get help when you need it! Click here to contact us to get paid support.
Reviews (0)
Be the first to review “FlowTech™ CHT High Flow – CM2™ Nozzle”
Additional information
| Weight | .2 oz |
|---|---|
| Dimensions | .2 × .2 × .2 in |
| Made In | 🇺🇸 USA |
| Nozzle Size | 0.4mm High Flow, 0.6mm High Flow, 0.8mm High Flow, 1.0mm High Flow |
| Warranty Length | 6 Months |
