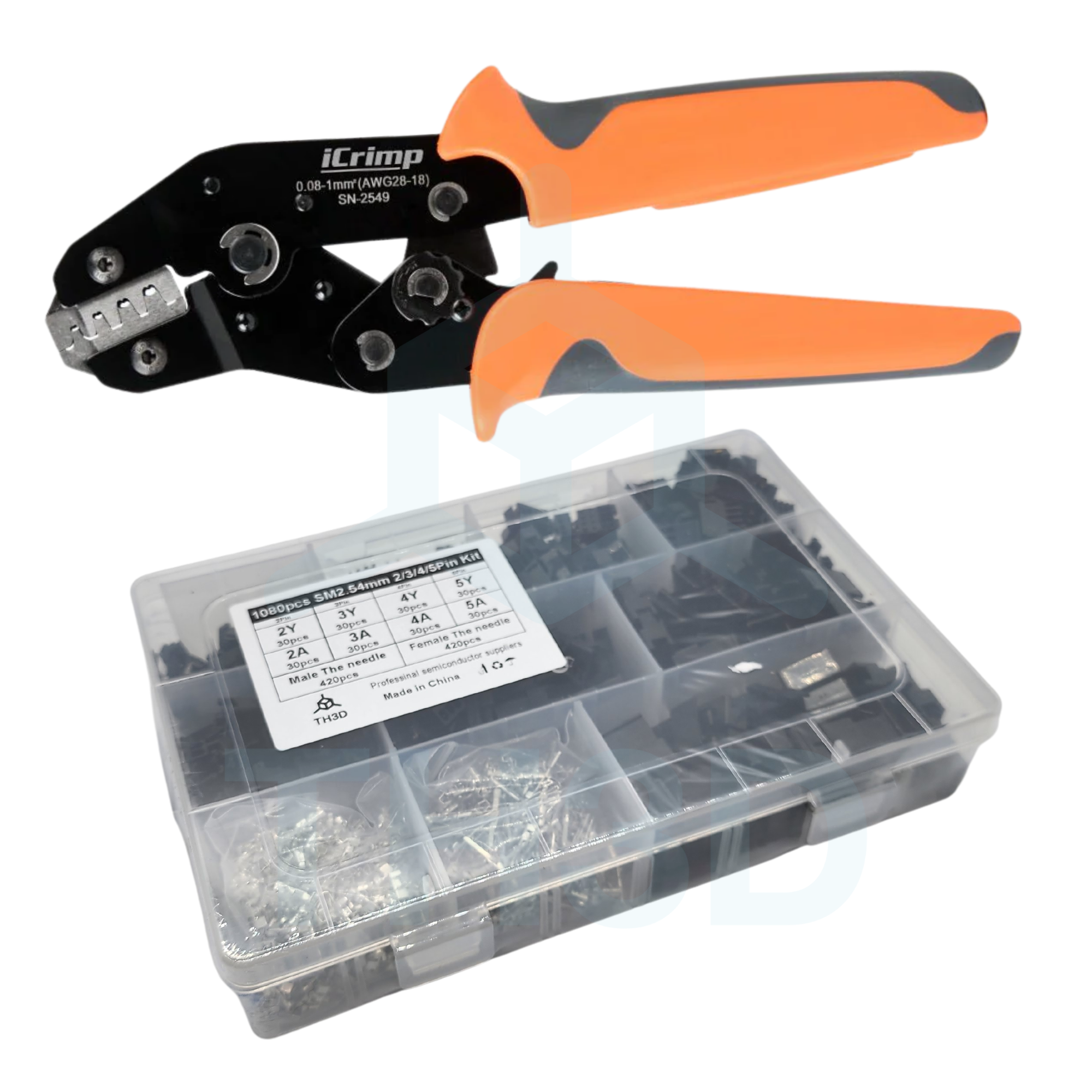

JST-SM Type Locking Connector Kit + Crimper Bundle

This bundle includes our Crimp Tool and JST-SM Type plug and socket kit.

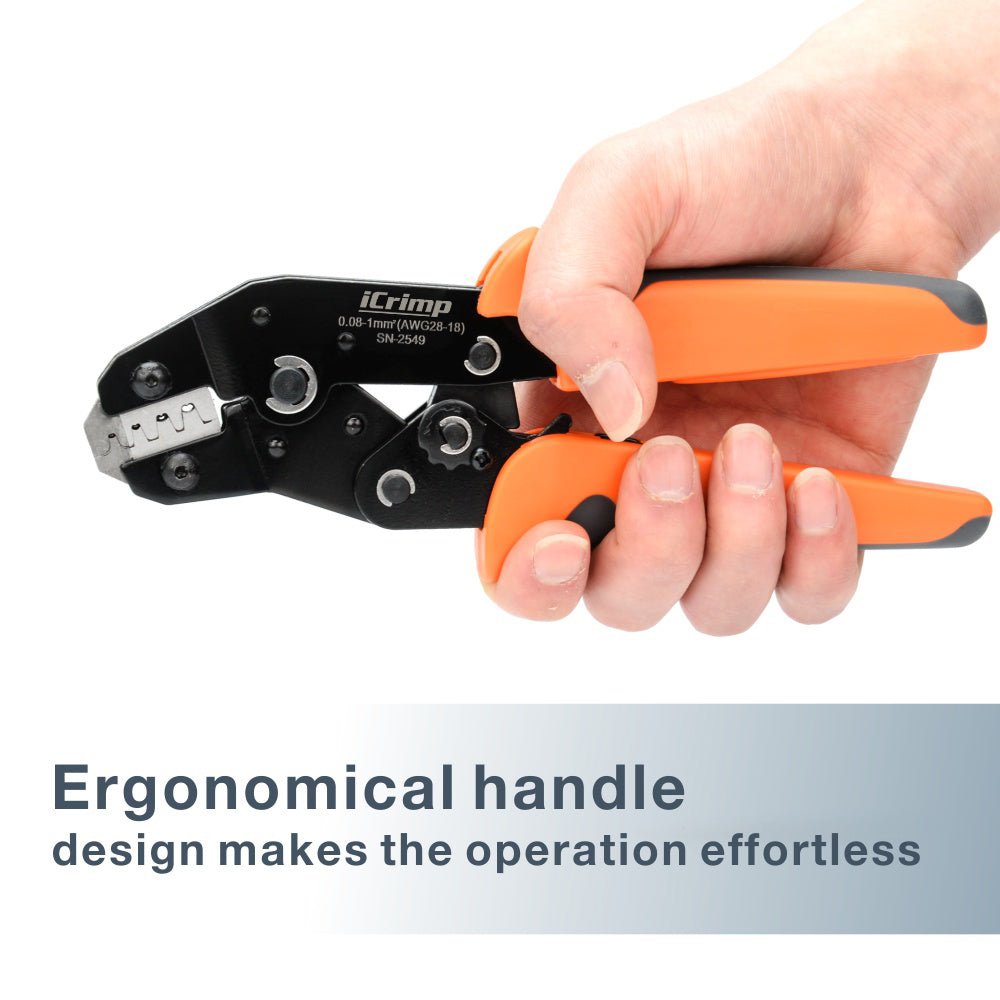

Ratcheting Crimping Tool for DuPont, JST, TE, & Molex Terminals

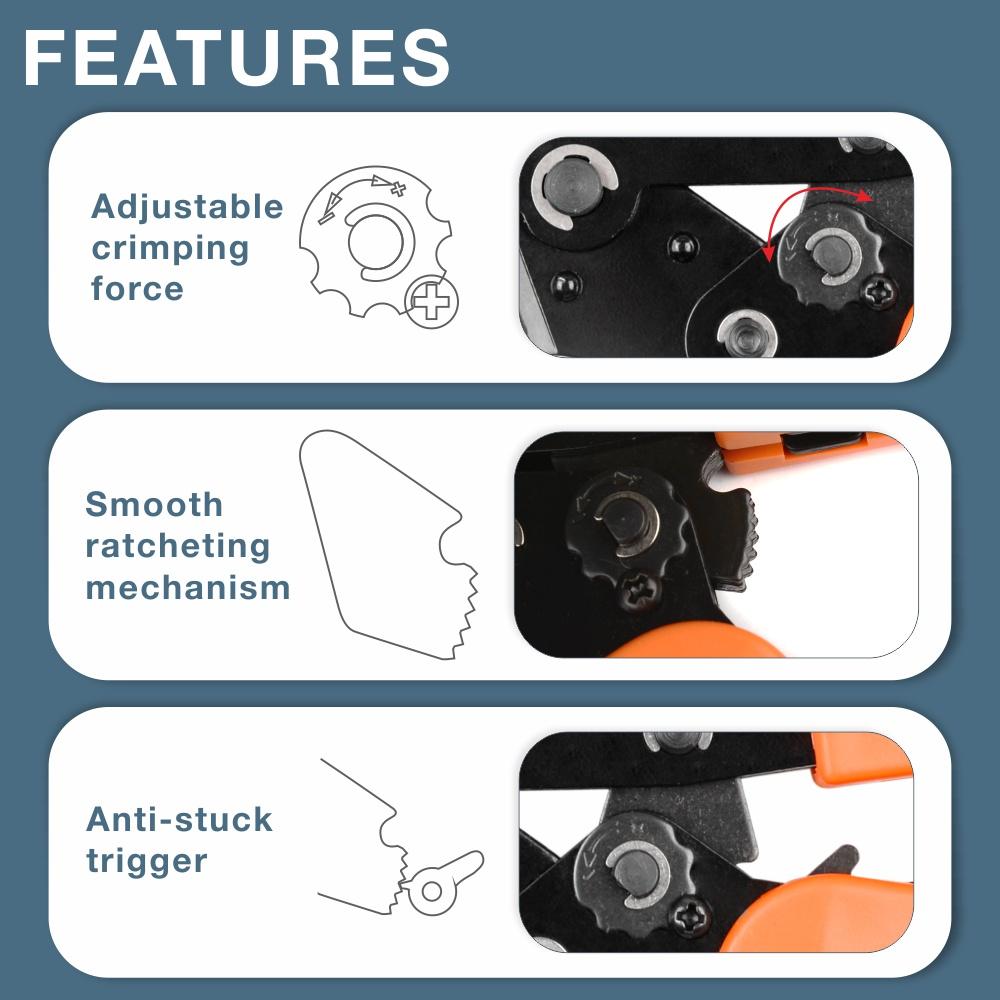

This is a high-quality crimp tool for most connectors we use on our 3D printers. This ratcheting type lets you get a consistent crimp and does a DOUBLE crimp in one squeeze. The handle is comfortable for repeat use. There is also a tension adjustment on the side with the silver philips head screw. Works with the following type of connectors/pins

• 2.54mm
• 3.96mm
• 4.8mm
• 5.08mm
• 6.3mm
• JST Pins
• Molex Pins

JST-SM Type Locking Connector Kit – Plugs and Sockets

This kit is great for making your own cables and extensions. It includes 300 pins for the ends and 2-5 pin plugs with matching sockets. Use our Ratcheting Crimp tool for the best results. Includes a handy organizer case to keep things separated for quick access. Ratings

• Current Rating – 3A AC/DC MAX (this is per pair of wires)
• Voltage Rating – 0-200V AC/DC MAX
• Wire Size – 28-22AWG
• Temp Rating – -25C to 85C

Part List

• 30x – 2 Pin Male Plug
• 30x – 3 Pin Male Plug
• 30x – 4 Pin Male Plug
• 30x – 5 Pin Male Plug
• 30x – 2 Pin Female Socket
• 30x – 3 Pin Female Socket
• 30x – 4 Pin Female Socket
• 30x – 5 Pin Female Socket
• 420x – Male Pins
• 420x – Female Pins

Lower Prices, Flexible Support Options!
To offer you the best possible pricing, this product does not include technical support. However, if you ever need assistance, we offer affordable support options that you can purchase separately:

• Email Support: $35 per ticket
• Remote Video Call with PC Access: $40 for 30 minutes | $60 for 60 minutes

Get help when you need it! Click here to contact us to get paid support.

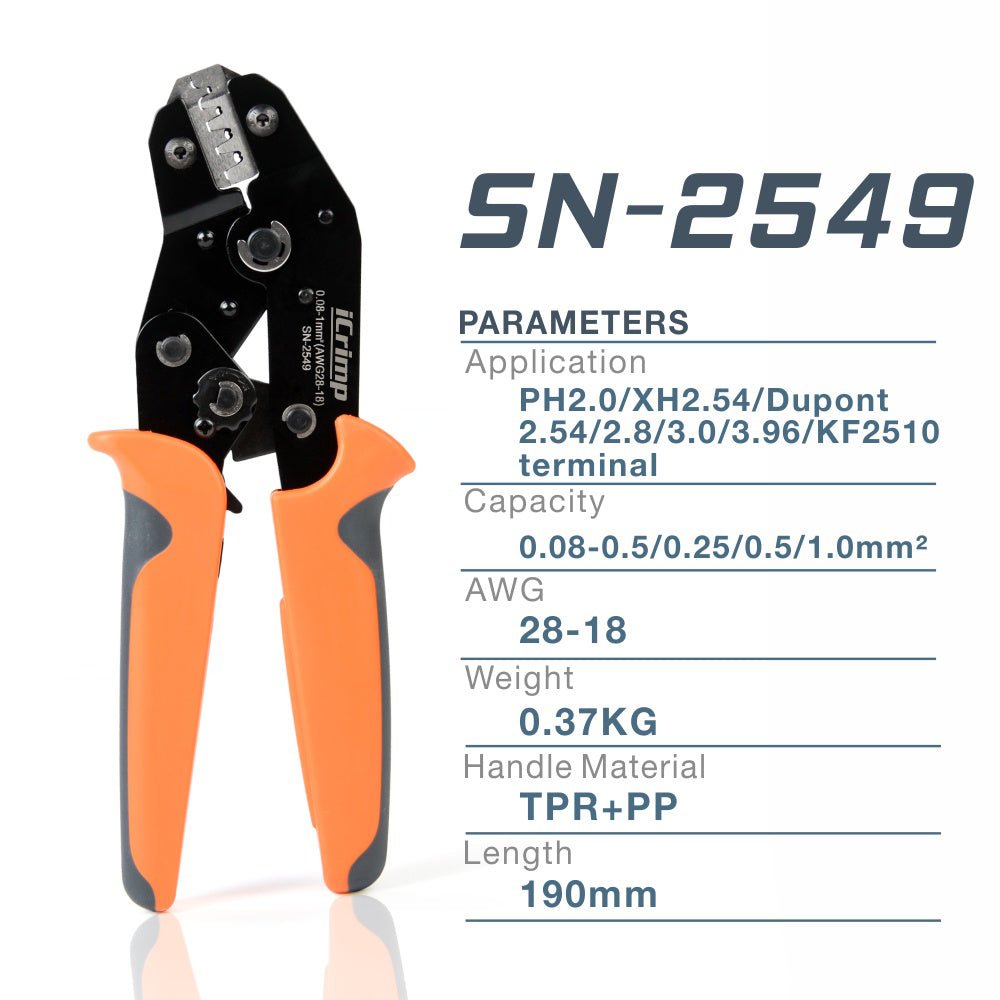

iWiss SN-2549 Ratchet Crimping Tools for 0.08-1.0 mm² (AWG28-18)

JST-SM Type Locking Connector Kit - Plugs and Sockets
