This is JUST for the parts shown in the picture. If you want the full kit please purchase that here: Sovol SV06 5015 Layer Fan Upgrade Kit. The upgrade kit includes not only these printed parts but the fan and the other hardware needed to install it on the printer.
Other Parts Required
You will still need the bolts, nuts, and 5015 fan if you get just these parts and not the full kit linked above.
- 2x M3x20mm bolts – To bolt the adapter plate to the hotend carriage
- 1x M3x12mm bolt – To bolt the fan to the mount
- 1x M4x25mm bolt – To bolt the fan and the duct to the adapter plate
- 24V 5015 Layer Fan
Printed with Black ABS @ 0.2mm Layer Height in the USA. Supports are removed from the print before you receive them so they are ready to go! This is an ondemand printed part so there may be a 1-2 day delay if these are showing “backordered” as we print them as orders come in for them.

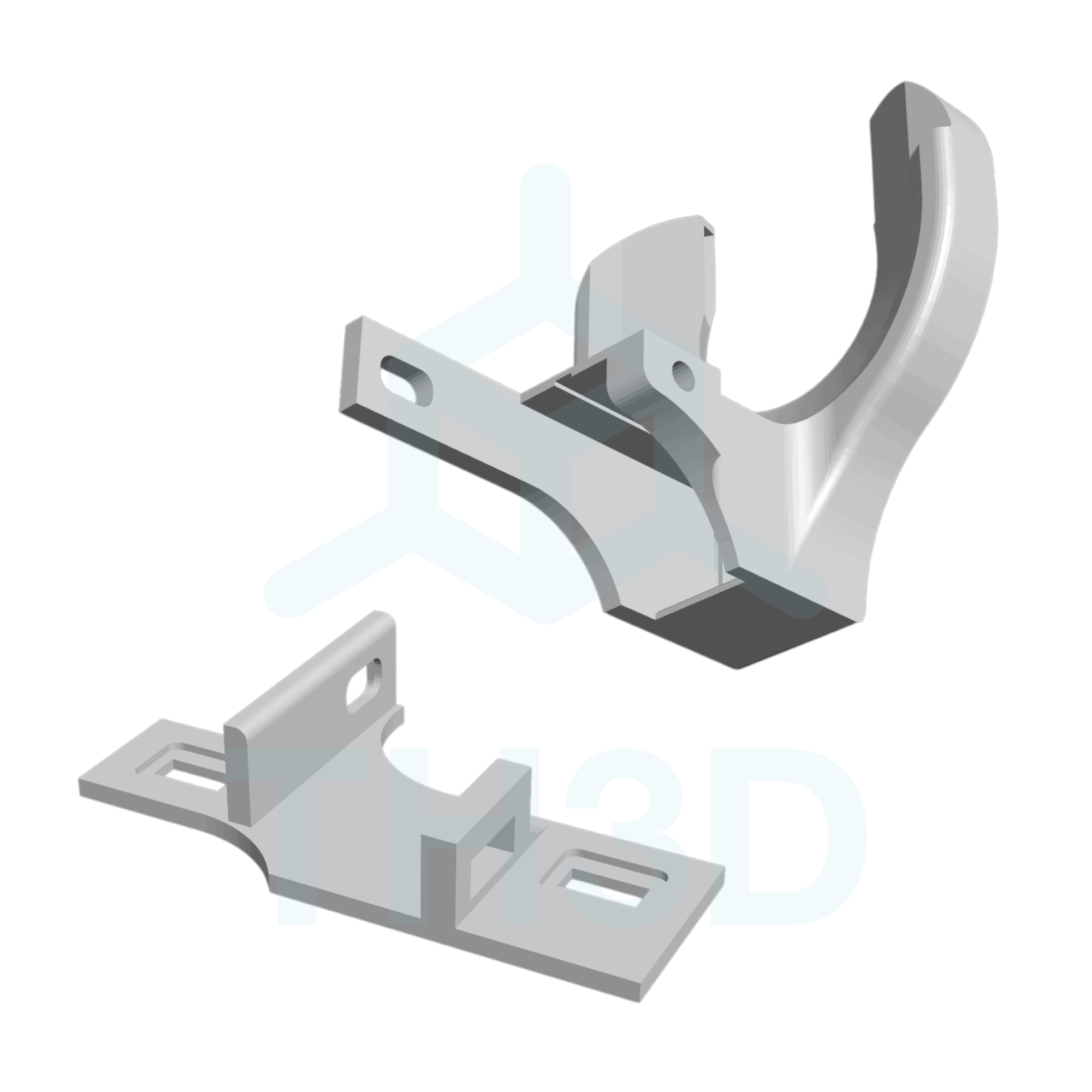

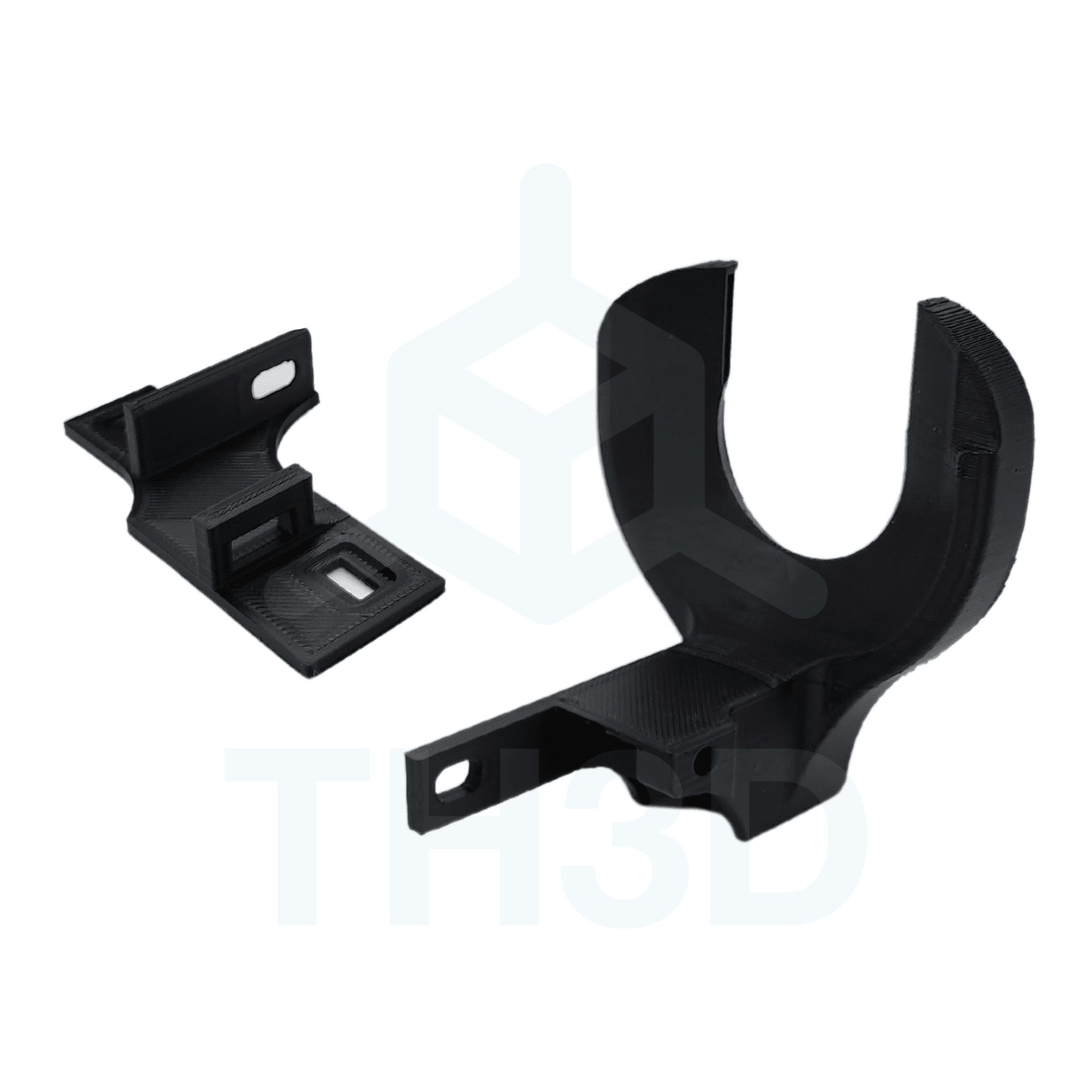

Includes just the mount pictured.
License
The download is available from the creator on Printables: https://www.printables.com/model/410475-sv06-5015-fan-duct-rounded
This work is licensed under a
Creative Commons (4.0 International License)
Attribution-ShareAlike
Warranty Information
3 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
