SV06/SV06 Plus 5015 Pro Layer Fan Upgrade Kit
$20.97

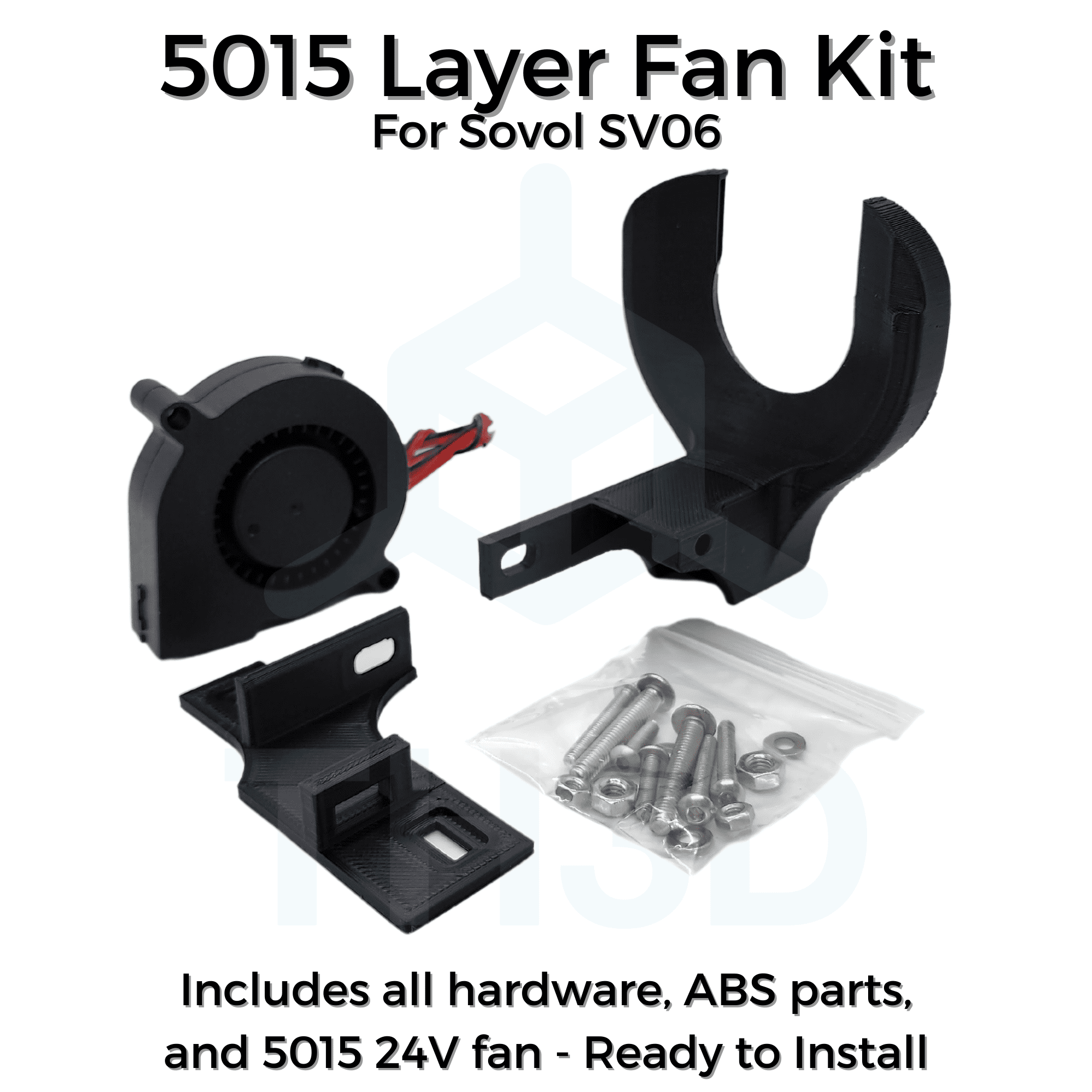

This kit includes the printed 5015 fan mount printed by us here in the USA along with the 5015 fan and all the nuts, bolts, and washers to install the kit on your SV06 or SV06 Plus. This replaces the stock layer fan.
Info
This kit includes the printed 5015 fan mount printed by us here in the USA along with the 5015 fan and all the nuts, bolts, and washers to install the kit on your SV06 or SV06 Plus. This replaces the stock layer fan. Below is a video where we installed this on our machine from start to finish. The installation is the same for both printer models. Printed with Black ABS @ 0.2mm Layer Height in the USA. Supports are removed from the print before you receive them so they are ready to go!
Installation Video
Pro VS Previous Versions
This New Pro version is a COMPLETE redesign by TH3D with a new triple duct, single adapter plate for the SV06 and SV06 Plus, easier to assemble, and a stronger design.
Already have the V1/V2 duct? You can get JUST the parts here to upgrade to this Pro version. You can use your existing fan and hardware with the Pro duct.
Orders placed on or before 7/24/23 are the old duct version (aka not the Pro version). V1 was the initial release and V2 was the V1 duct with the adapter plate added for the SV06 Plus model.
Version History:
- V1 – Initial release – Only SV06 supported
- V2 – Added additional screws and mounting bracket for SV06 Plus (still uses V1 duct)
- Pro – Complete redesign with a new duct and mounting bracket that works on both SV06 models
| Made In | 🇨🇳 China, 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
|---|
Sovol SV06/SV06 Plus 5015 Pro Layer Fan Duct - Black ABS
| Weight | 4 oz |
|---|---|
| Dimensions | 4 × 4 × 2 in |
| Made In | 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
| Warranty Length | 6 Months |
SV06/SV06 Plus 5015 Layer Fan Kit Hardware Pack
| Weight | 1 oz |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Made In | 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
| Warranty Length | 6 Months |
24V 5015 Fan
| Weight | 3 oz |
|---|---|
| Dimensions | 3 × 3 × 1 in |
| Made In | 🇨🇳 China |
| Warranty Length | 6 Months |
Q & A

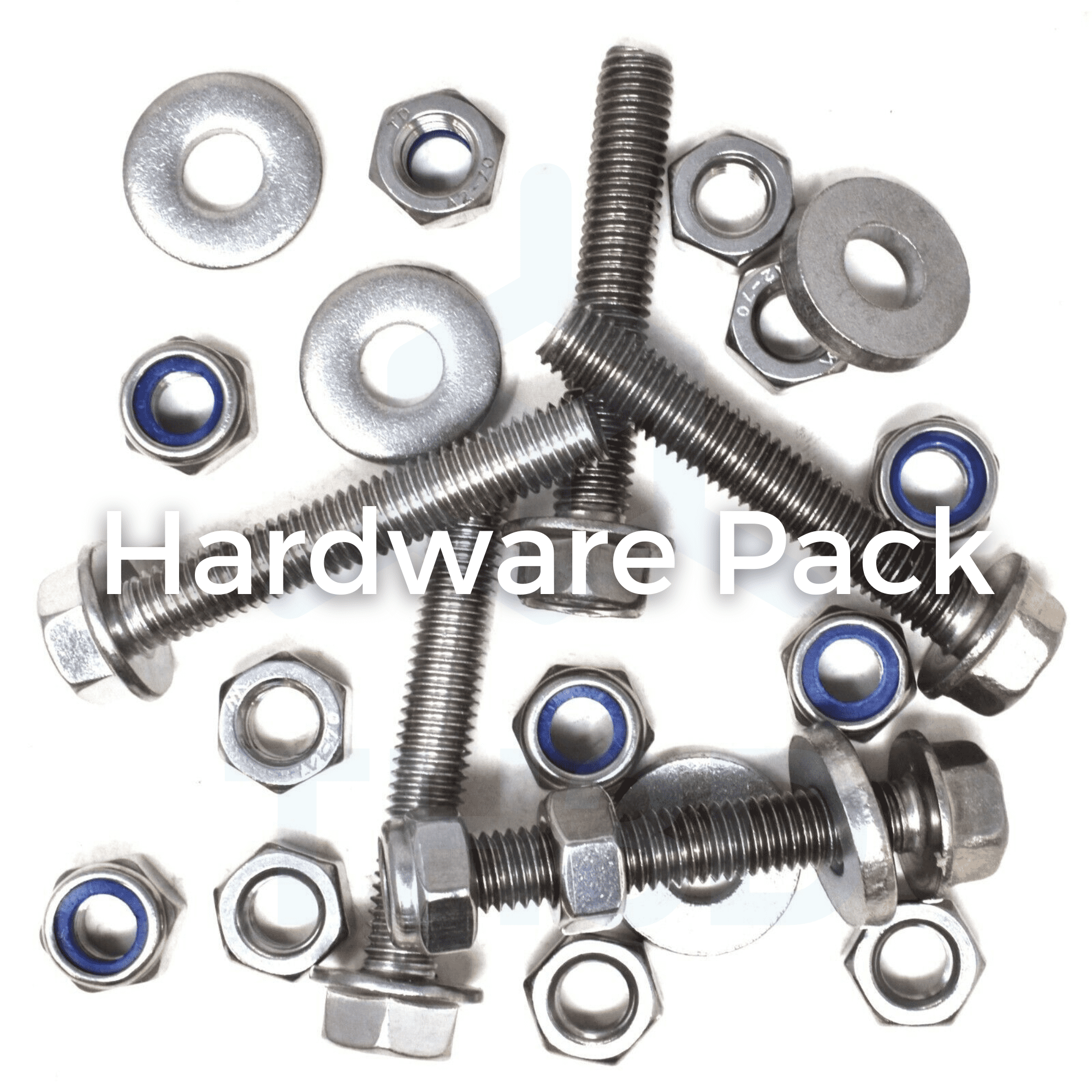

The hardware is included when you purchase the kit. It includes the following:
2x M3x20mm bolts – To bolt the adapter plate to the hotend carriage (SV06)
2x M3x25mm bolts – To bolt the adapter plate to the hotend carriage (SV06 Plus)
1x M3x12mm bolt – To bolt the fan to the mount
1x M4x25mm bolt – To bolt the fan and the duct to the adapter plate
