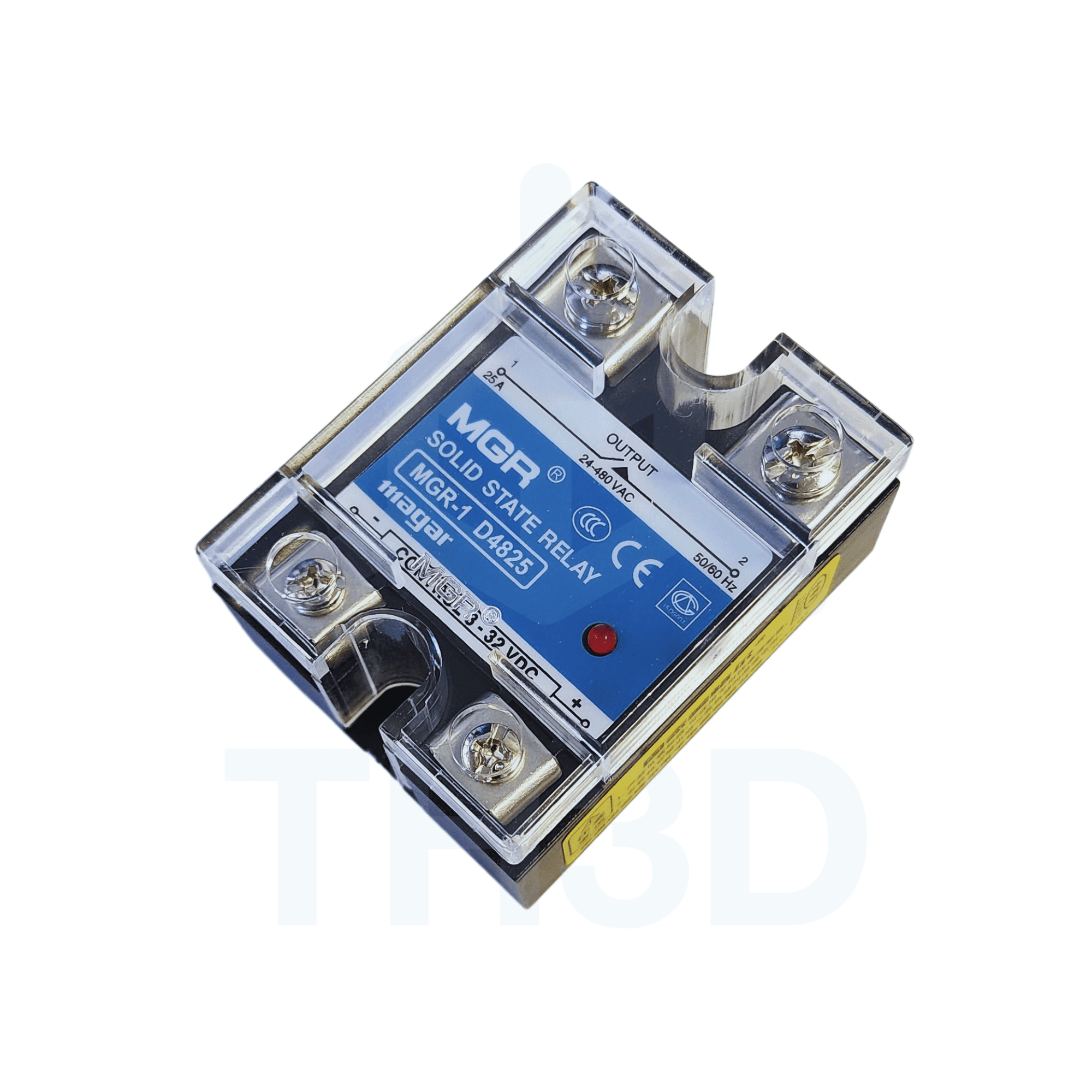

True 25A AC/DC SSR for AC Heated Bed Control

1 review

Control your AC bed with a SSR just like your stock bed!

Can be operated on 3-32V DC for control – Works with printer boards, Raspberry Pi, ESPs, Ardunio, and More!

$9.99

7 users have this item in wishlist

In stock

Description

Why buy ours over others?

These are actual 25A rated SSRs with a JST24A 25Amp TRIAC in them. Many other sellers (especially on amazon and ebay) false advertise what amperage rating the SSR can handle because the internal TRIAC is not the correct part.

We open samples from every batch to ensure they have a 25A or higher rated TRIAC inside them so you get what is advertised. These are generic 25A SSRs that we’ve sourced from our suppliers. Below are pictures from the inside of our SSRs from an inspection we did. Due to batch differences, appearance of the label and box may vary from pictures.

Printer Compatibility Notes

  • TEVO Tornado – Upgrade the low quality Tornado SSR to eliminate interference with ABL sensors
    • Direct replacement for Tornado SSR
  • DO NOT USE WITH CR-10S Pro/MAX – This does NOT work with the CR-10S Pro or CR-10S MAX, these printers use a DC SSR

Technical Specifications

Load Current 25A
Load Voltage  (Output Voltage) 24-480VAC
Control Voltage  (Input Voltage) 3-32VDC
Control Current DC 3-25mA
ON Voltage ≤1.5V
OFF Leakage Current ≤2mA
Reaction time ≤10mS
Dielectric Strength 2500VAC
Insulation Resistance 1000MΩ/500VDC
Ambient Temperature -30 to 80 C deg
Status Indicator LED



Full Wiring Diagram using 15A Breaker for extra safety



Additional information

Weight 4 oz
Dimensions 3 × 2 × 1 in
Made In

🇨🇳 China

Warranty Length

6 Months
