- Made with actual rubber, not plastic or PU like some other belts
- Excellent grip and wear resistance
- Works with most 3D printers that use belt including but not limited to:
- Creality 3D Printers (S4 and S5 use 10mm width on Y, this is 6mm)
- Anet Machines 3D Printers
- TronXY 3D Printers
- Wanhao 3D Printers
- Geeetech 3D Printers
- Alfawise 3D Printers
- Tevo 3D Printers
- Install Notes:
- When replacing a belt cut the new belt to the length of the old belt.
- If your printer used crimped ends on the original belts cut the new belt 30-40mm longer.
- Wrap the end of the belt around the belt attachment point on your carriage and fold it onto itself so the teeth mesh.
- Then use 2x small zip ties to keep the teeth forced together and trim the excess belt length off.
- Keep the zip ties as close to the attachment point as possible and make sure the ties will not hit anything during movement.

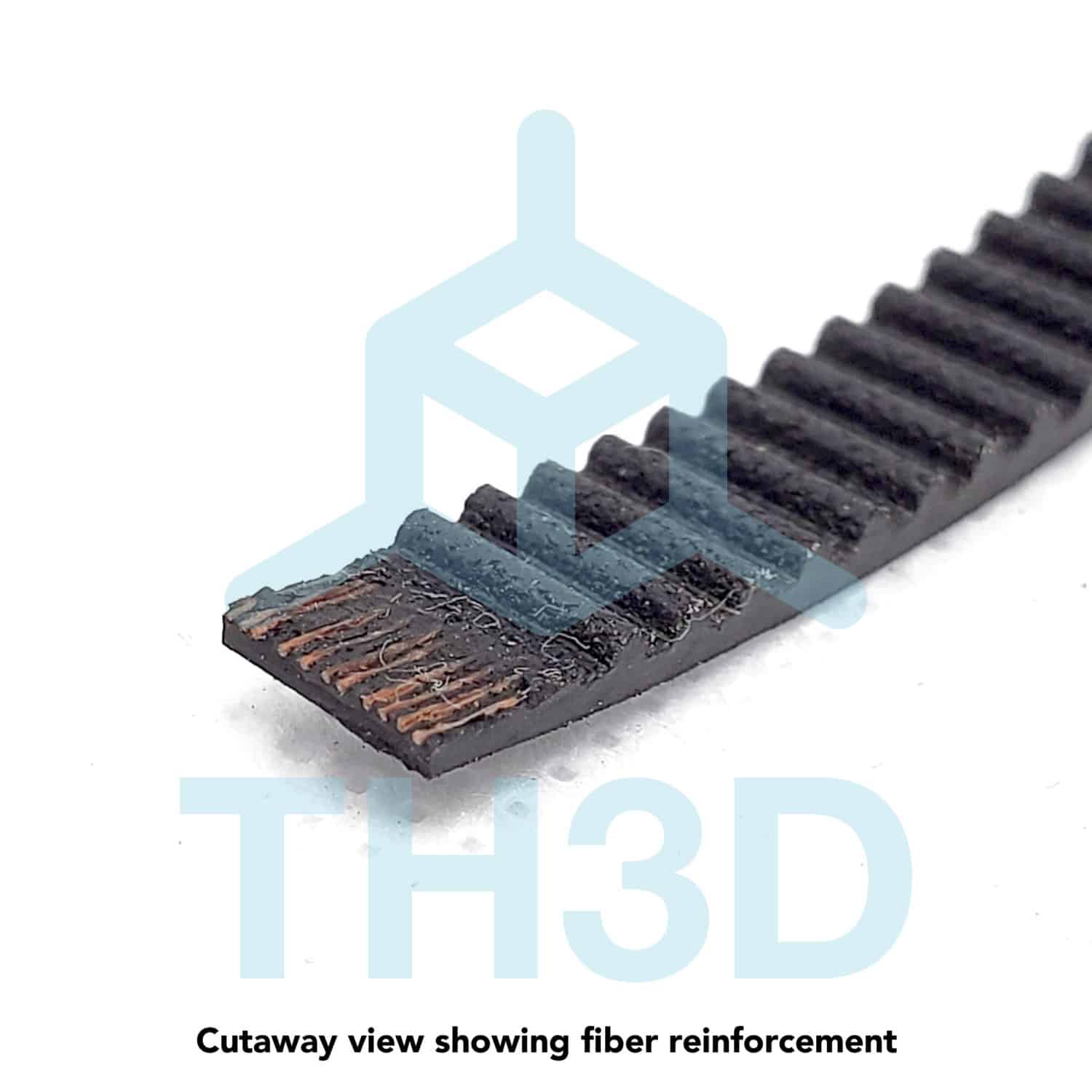

- Reinforced with 8+ internal fiber strands for durability and stretch resistance
- Width: 6mm
- Pitch: 2mm
- Type: 2GT
- Sold by the meter
- When ordering more than 1 meter it will be one continuous length
