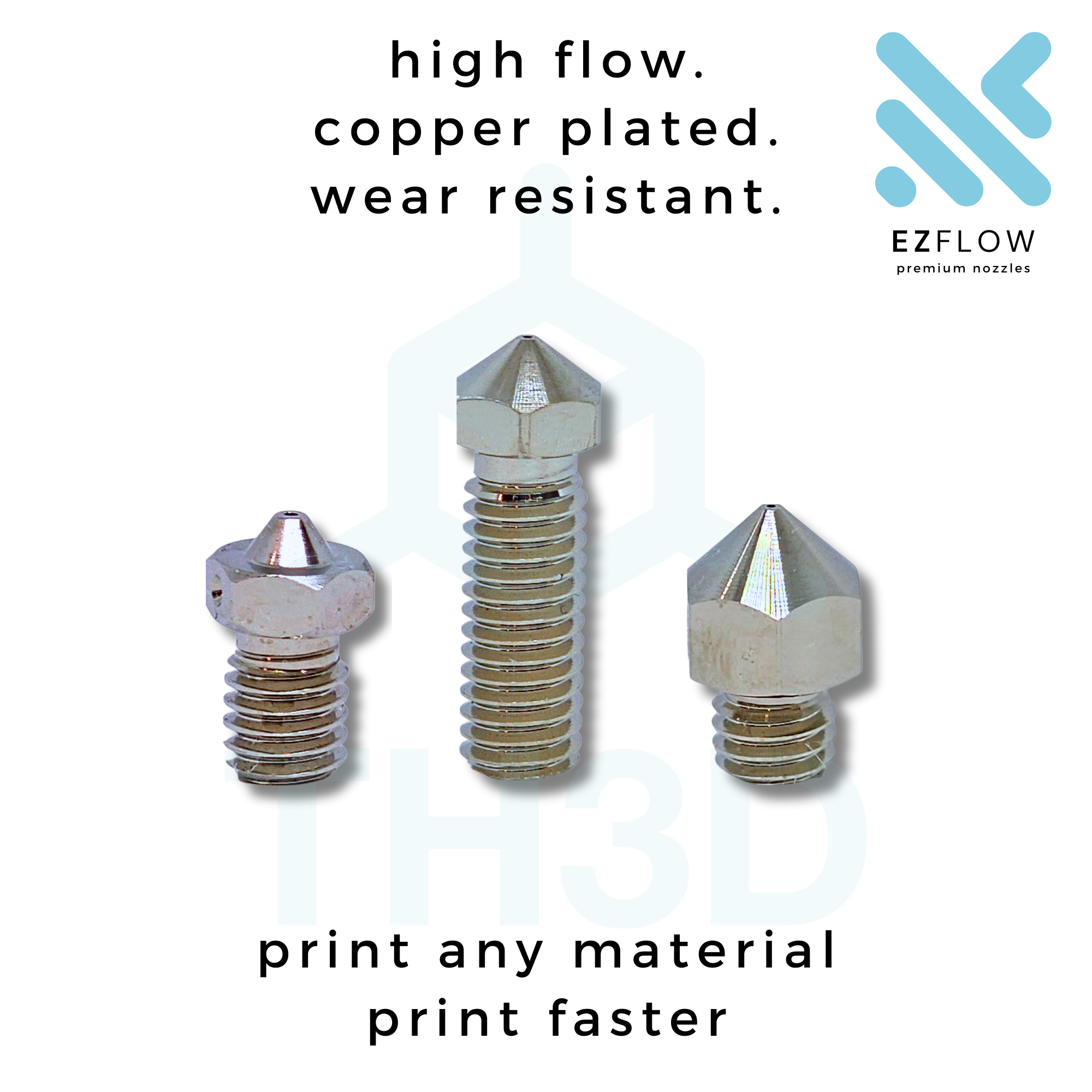

- Made from a high temp copper alloy (max temp is 450C)
- Plated with our Tough Plating for wear resistance and smooth filament flow
- Tested in house to withstand over 10 1KG rolls of Carbon Fiber filament with no change in nozzle diameter
- This does not mean that 10 rolls is the limit. Just what we were able to test with materials on hand. The plating should last a very long time.
- The Tough Plating helps prevent filament from sticking to the nozzle to keep the nozzle clean
- Tested in house to withstand over 10 1KG rolls of Carbon Fiber filament with no change in nozzle diameter
- Print at higher speeds due to up to 3X the heat transfer of brass nozzles and over 6X the heat transfer of steel nozzles
- These nozzle conduct heat so well it is recommended to lower your normal printer temperature by 10C
- Print up to 2x faster with your existing hotend thanks to quicker melting of the filament and smoother flow
- 60 degree internal nozzle angle for optimal filament flow

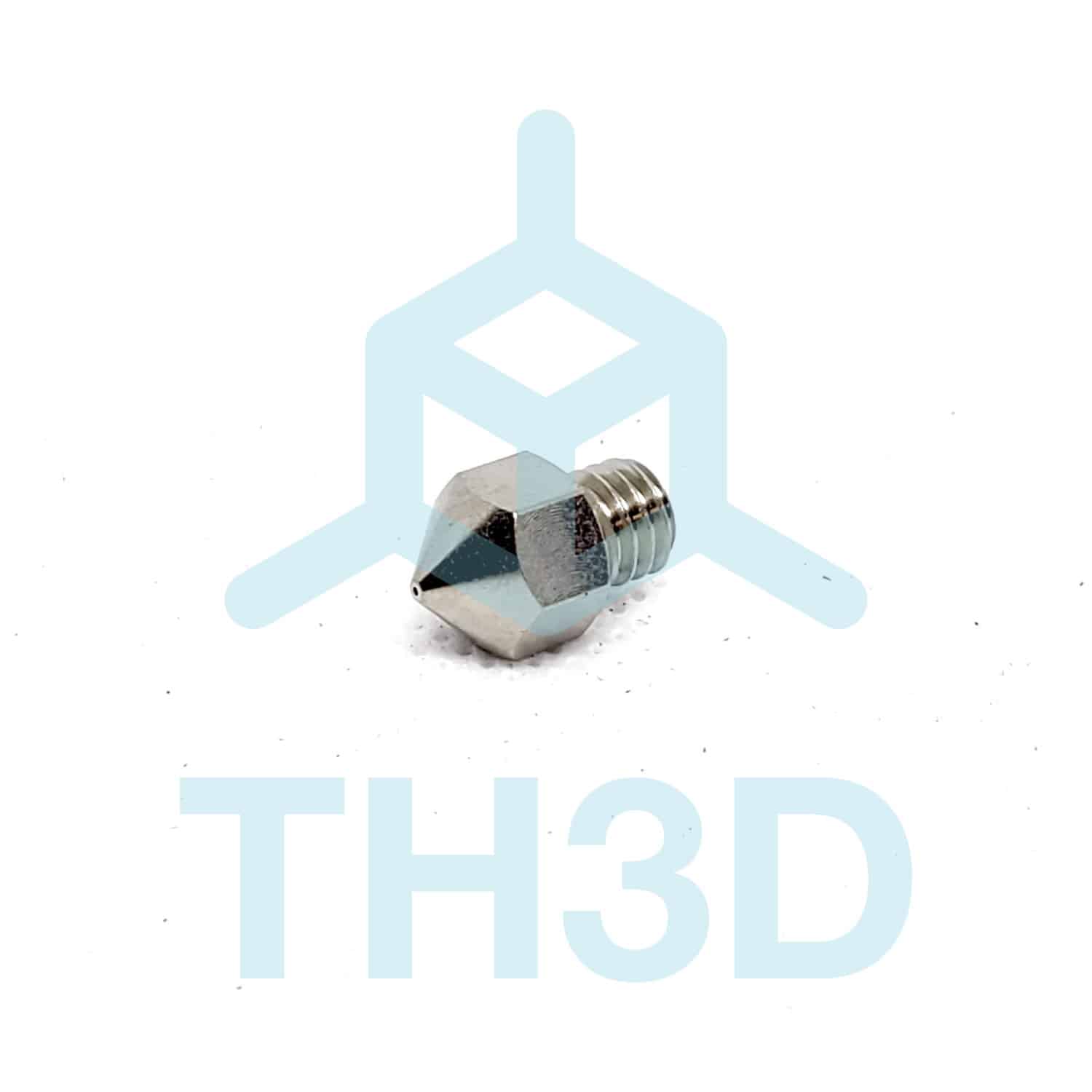

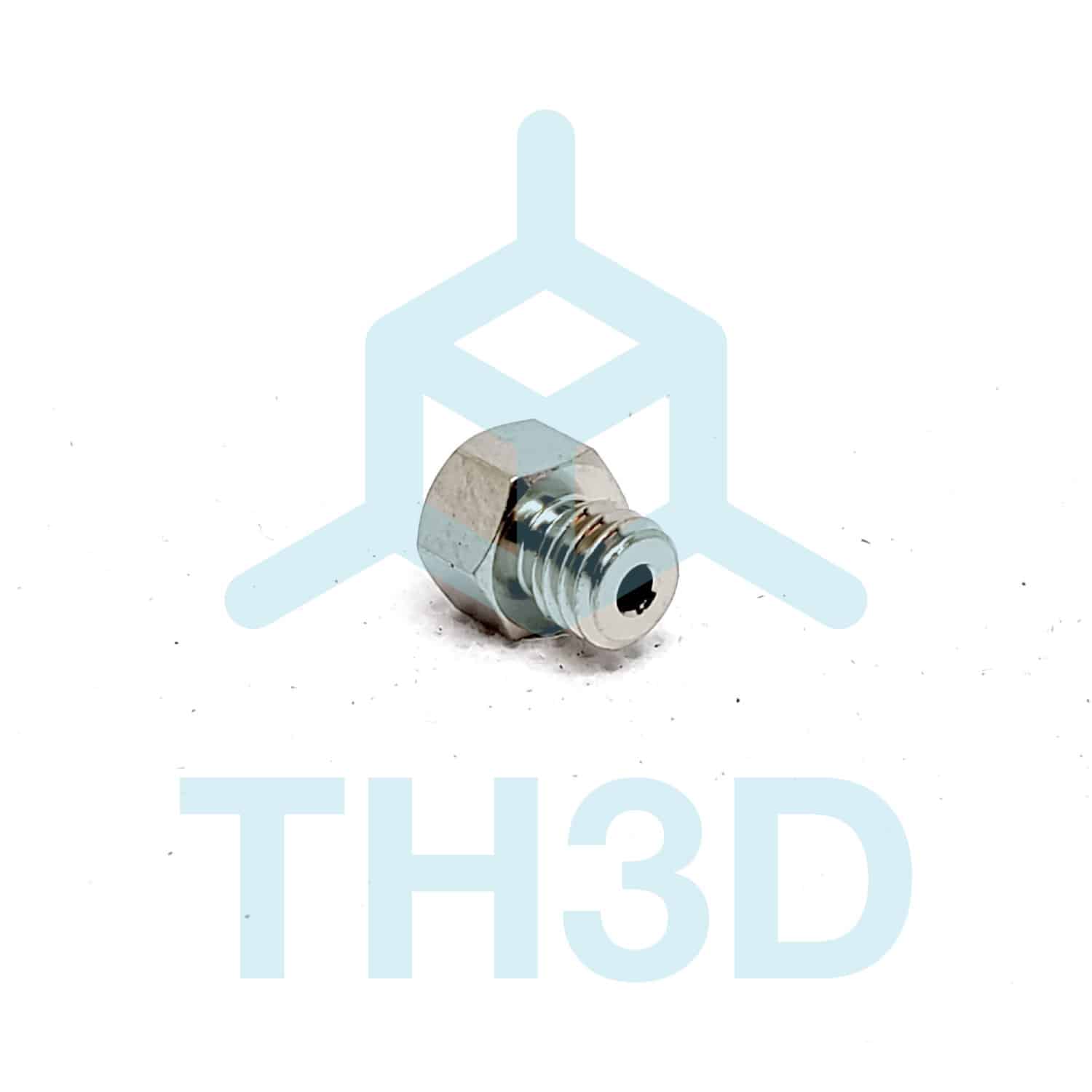

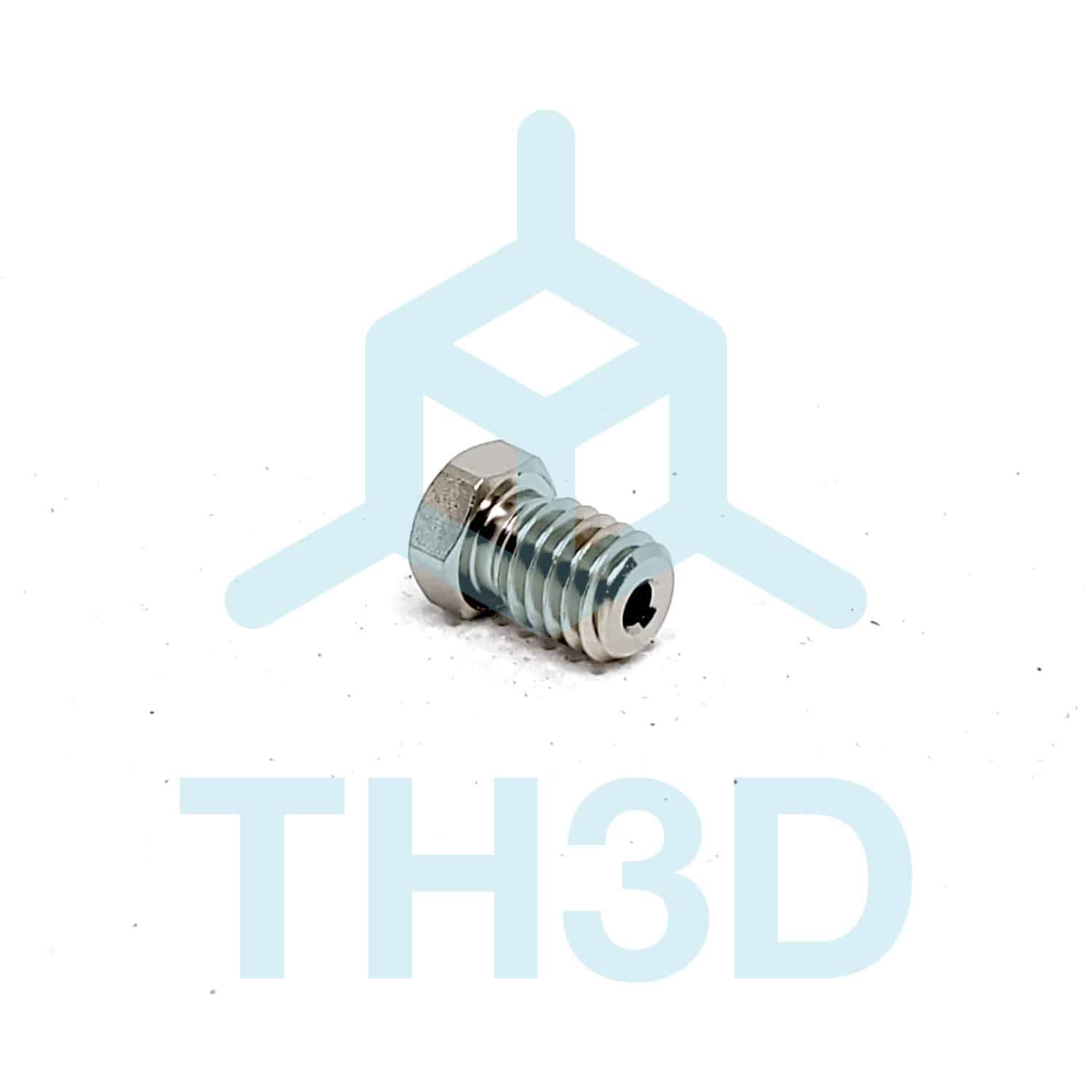

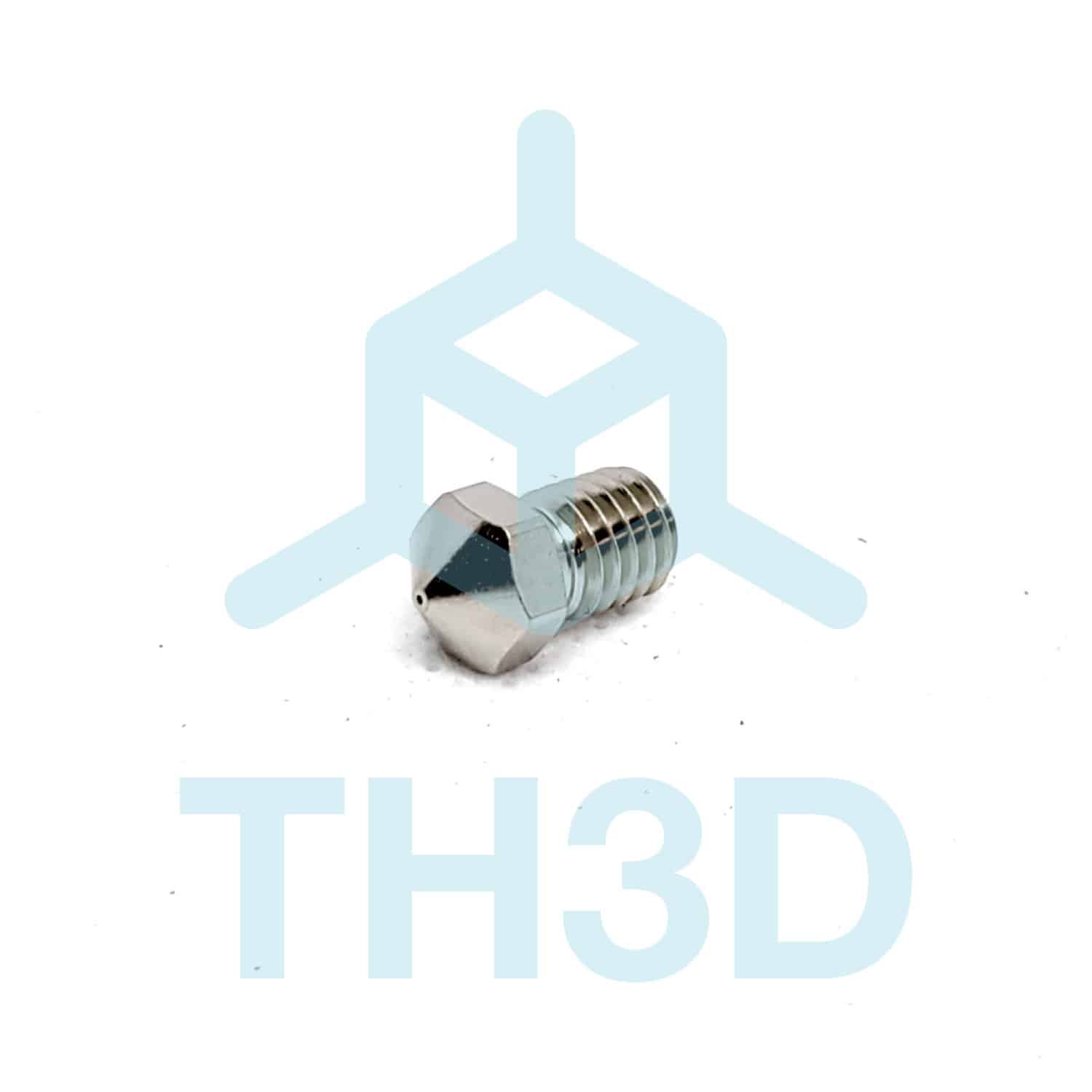

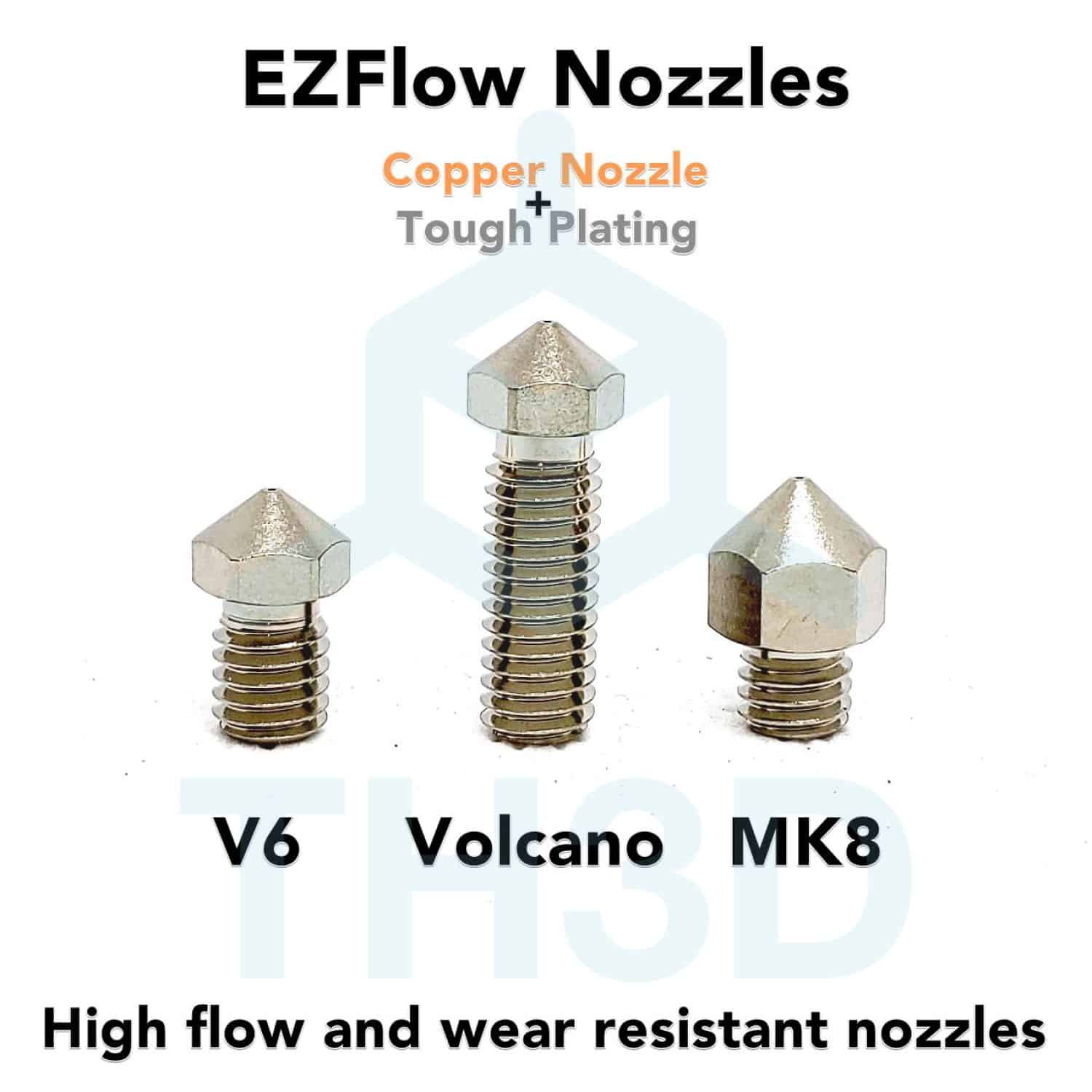

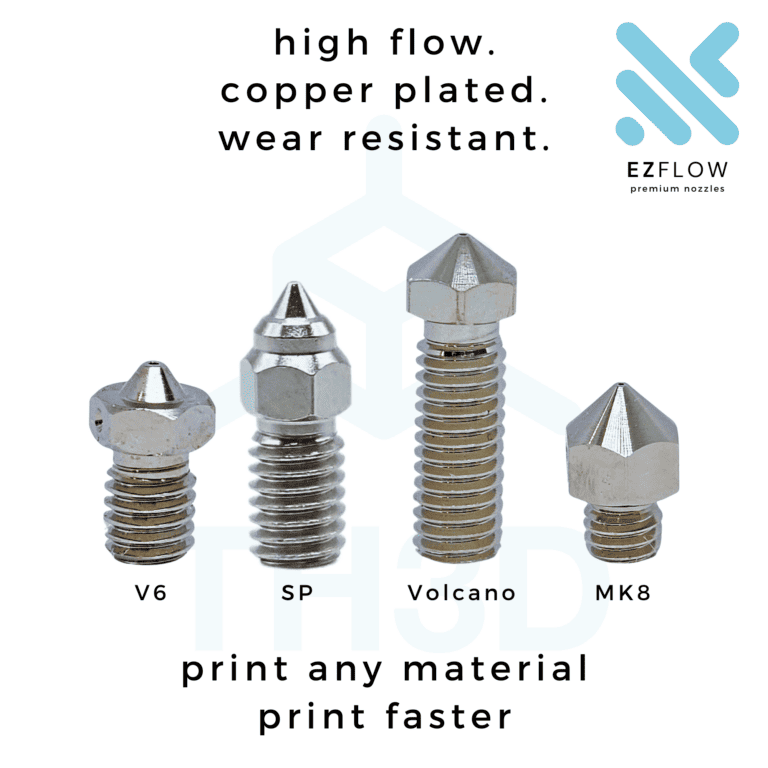

- Multiple Sizes and Styles Available

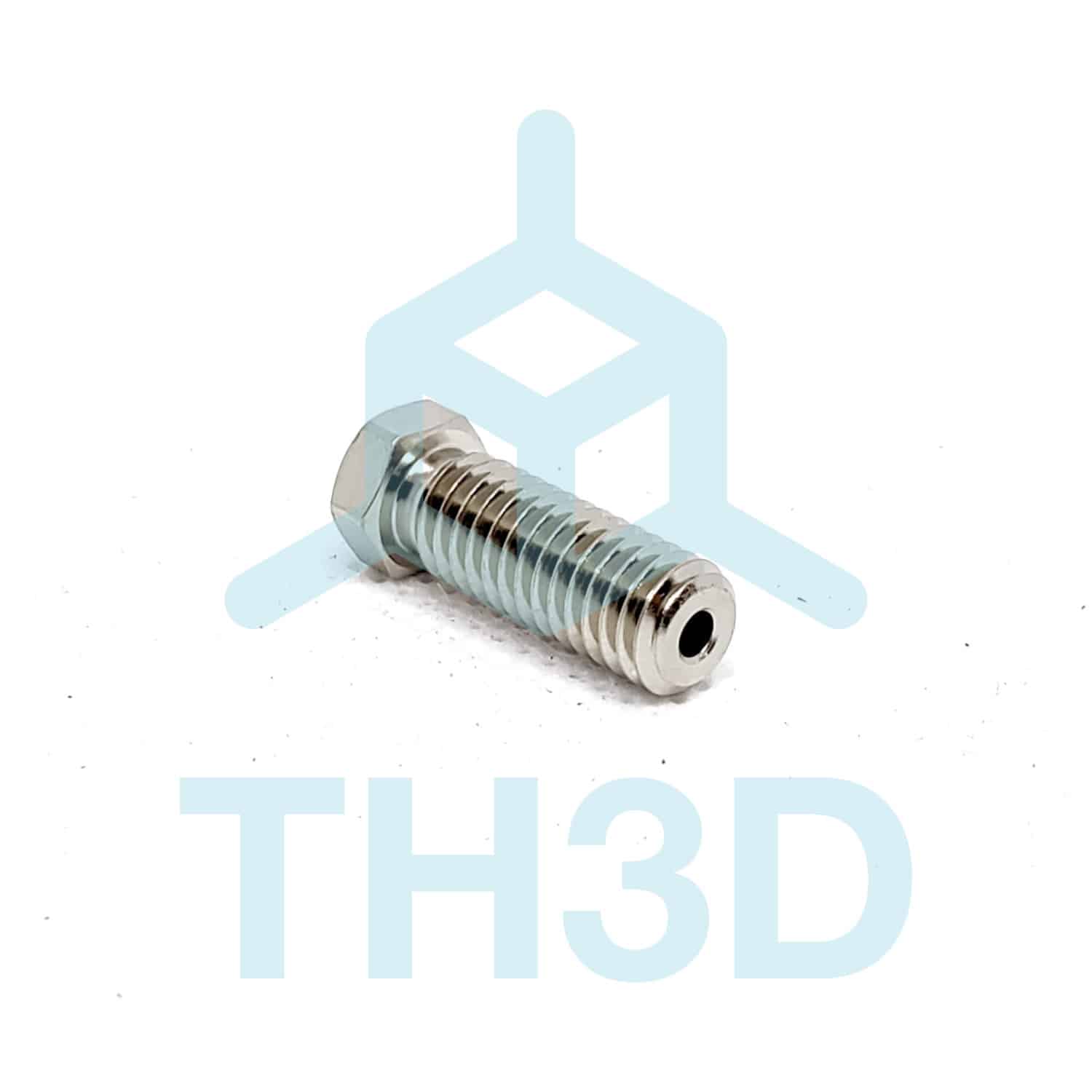

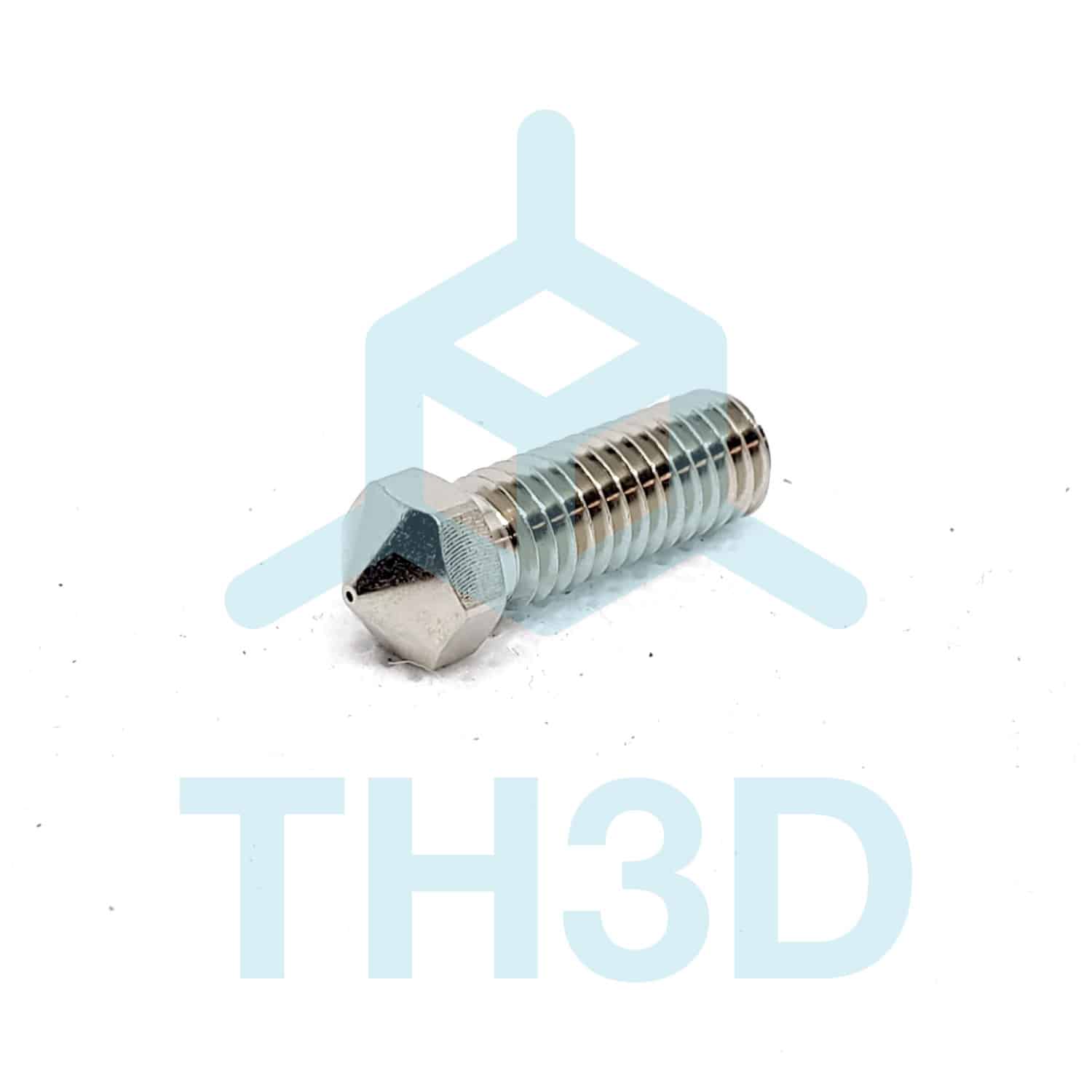

- For Tevo Flash and Tevo Tarantula select the “Volcano” style nozzles
- *These nozzles are NOT compatible with the Creality CR-10S Pro due to a proprietary threading used on that hotend.
- Not sure what size or type to order? Contact us or use our Live Chat.
- Each quantity is for ONE nozzle.
Installation Notes
- These nozzles are copper which means they are softer than brass or steel nozzles.
- Do NOT over tighten them when installing them
- Apply as much pressure when tightening as you can with ONE finger
- Heat the hotend to 240C when removing and installing nozzles.
Installation Video
Warranty & Support Information
TH3D Community Support - Technical support with for product it is handled through our TH3D Communities. You can get access to them on our Community Page. If you require tech support direct from the TH3D team to use/install the part it is available for an additional, hourly charge.
3 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link. This is for warranty related issues only, not technical support. Damage/Failure due to improper installation, usage, failure resulting from an issue with the machine the product is installed on, and/or modification or the product is not covered under warranty
vipergtsrrt10 (verified owner) –
i have these nozzles running on my cr10s5 and my cr10s…i have run carbon fiber pla and stainless steel pla through this nozzle and have had no issues with wear at all… i will be ordering more nozzles in the a few days for spairs..
(1) (0) Watch Unwatch
Ken (verified owner) –
Very nice nozzle, well worth the price. The hole was nice and round and there were no burs on it.
(0) (0) Watch Unwatch
