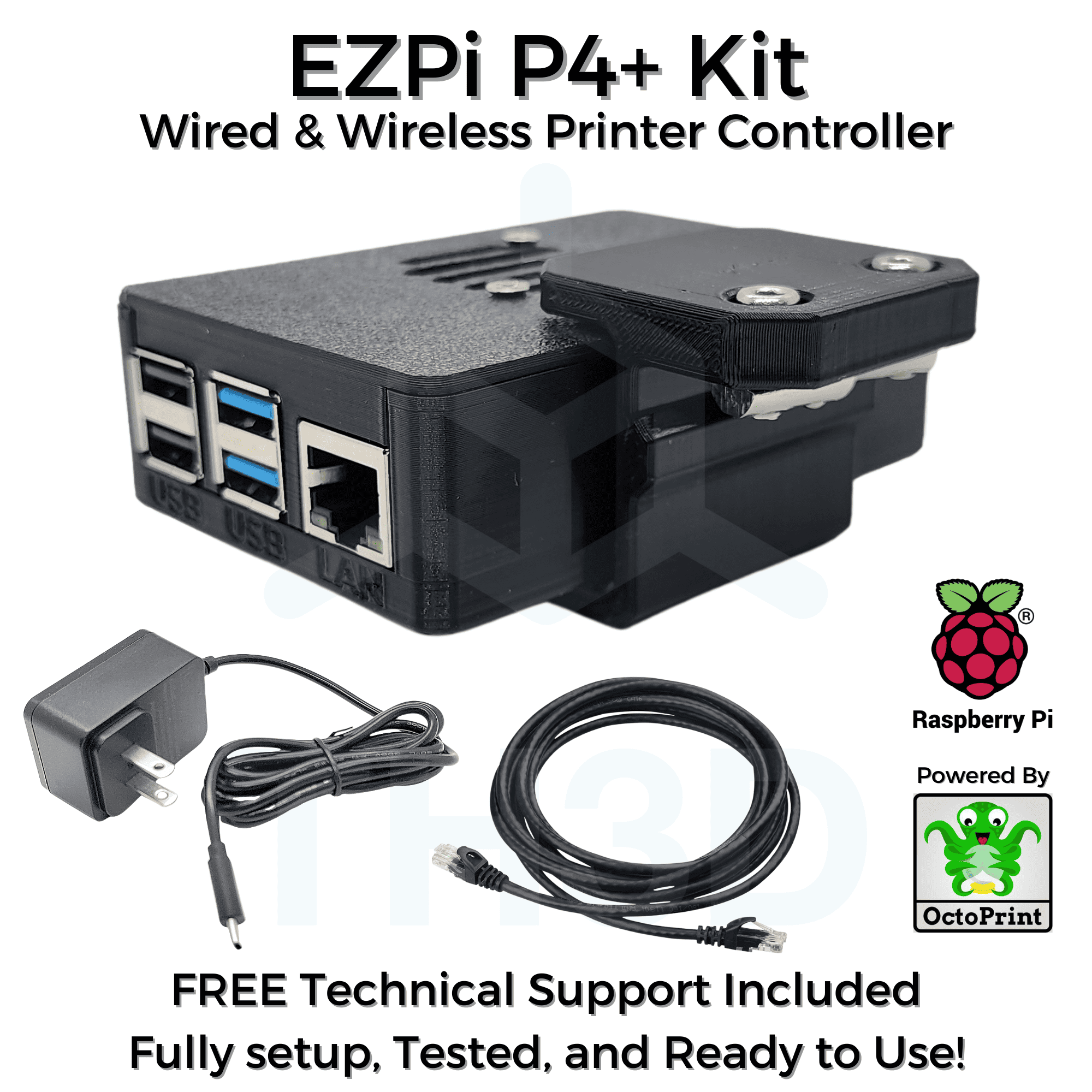

EZPi P4+ Octoprint Kit – 3D Printer Network Controller – Raspberry Pi4, 4GB RAM

5 reviews|3 answered questions

Wired or Wireless Connection, 32GB Storage, Power Adapter, Custom Case w/Mounting Bracket, Remote Control over LAN, HD Camera Support (add below), and Tech Support via email Included.

The kit is fully built and pre-tested so you can plug it in and start using it! Multiple optional accessories are available at a discount below as well to make the ultimate EZPi setup for your printer!

From: $99.99

9 users have this item in wishlist

EZPi P4+ Controller

Pre-setup, built, and ready to use on your printer

$99.99

Only 4 left in stock

EZPi Wifi Setup

Have us presetup your wifi information so your EZPi kit automatically connects to your wifi when you get it.

EZPi AC Adapter (Included FREE)

Power adapter for your EZPi Kit

In stock

5ft Ethernet Cable (Included FREE)

In stock

Add on our HD Camera?

Wide angle, manual focus adjustment, great for timelapses
10% off with the EZPi Kit.

Mini Tripod for Printer Webcams V2 - Bendable & Flexible

A tiny tripod to make setting up your camera quick and easy.
10% off with the EZPi Kit.

Add Power Control with our EZPlug?

Have our kit turn your printer on and off automatically to save on power and added protection as well!
10% off with the EZPi Kit.

Add on our USB Power Blocking Cable?

Prevents the LCD from staying on if you have a board that doesn't isolate the 5V USB from the board USB
10% off with the EZPi Kit.

Only 4 left in stock

Description

What is the EZPi?

The EZPi is a pre-setup, tuned, and configured OctoPrint kit. OctoPrint is an open-source project that lets you easily control your printer from your computer, smartphone, tablet, or laptop. You can send your Gcode over to the EZPi through your web browser so no more tinkering with SD cards! You can also connect a USB camera to the EZPi to do monitoring and time-lapses of your prints. There are a ton of features that can be added in addition to what we load like PushBullet integration, YouTube Live Streaming, and much more!

The EZPi is a custom-built Raspbian-powered OS image customized by TH3D for the best user experience with Octoprint. These are fully assembled and tested kits. All the hardware has been fully tested to correctly work together so you can have a very reliable and robust 3D printer control platform. Read our getting started guide here: EZPi P4+ Getting Started Guide

What is included?

  • Our Latest Custom EZPi P4+ Controller
  • Quad-Core ARM CPU w/32GB of Storage & 4GB RAM

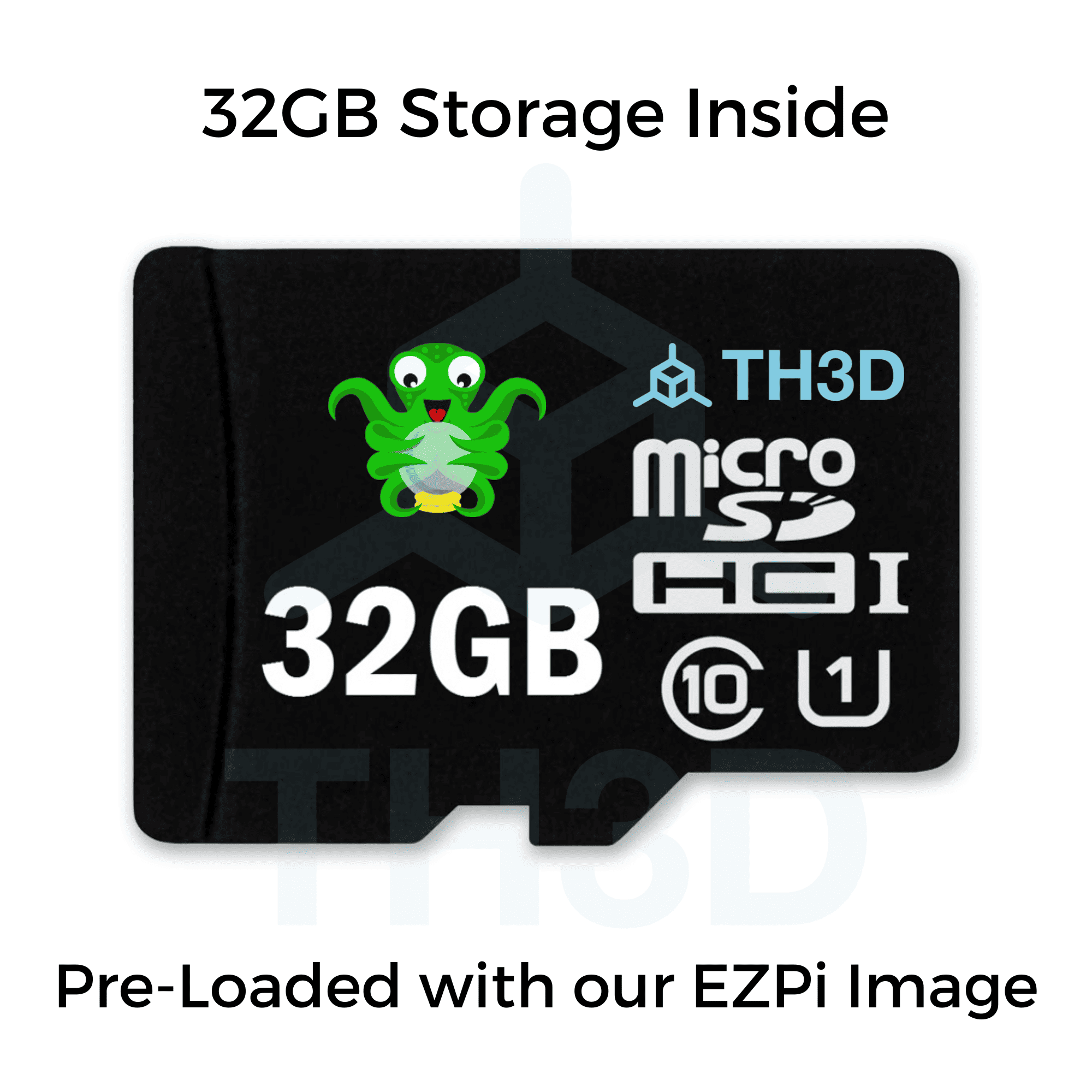

  • 32GB MicroSD Installed and Pre-Loaded with TH3D EZPi P4+ Image
  • Built-in 802.11AC Dual-Band Wifi and GIGABIT Ethernet

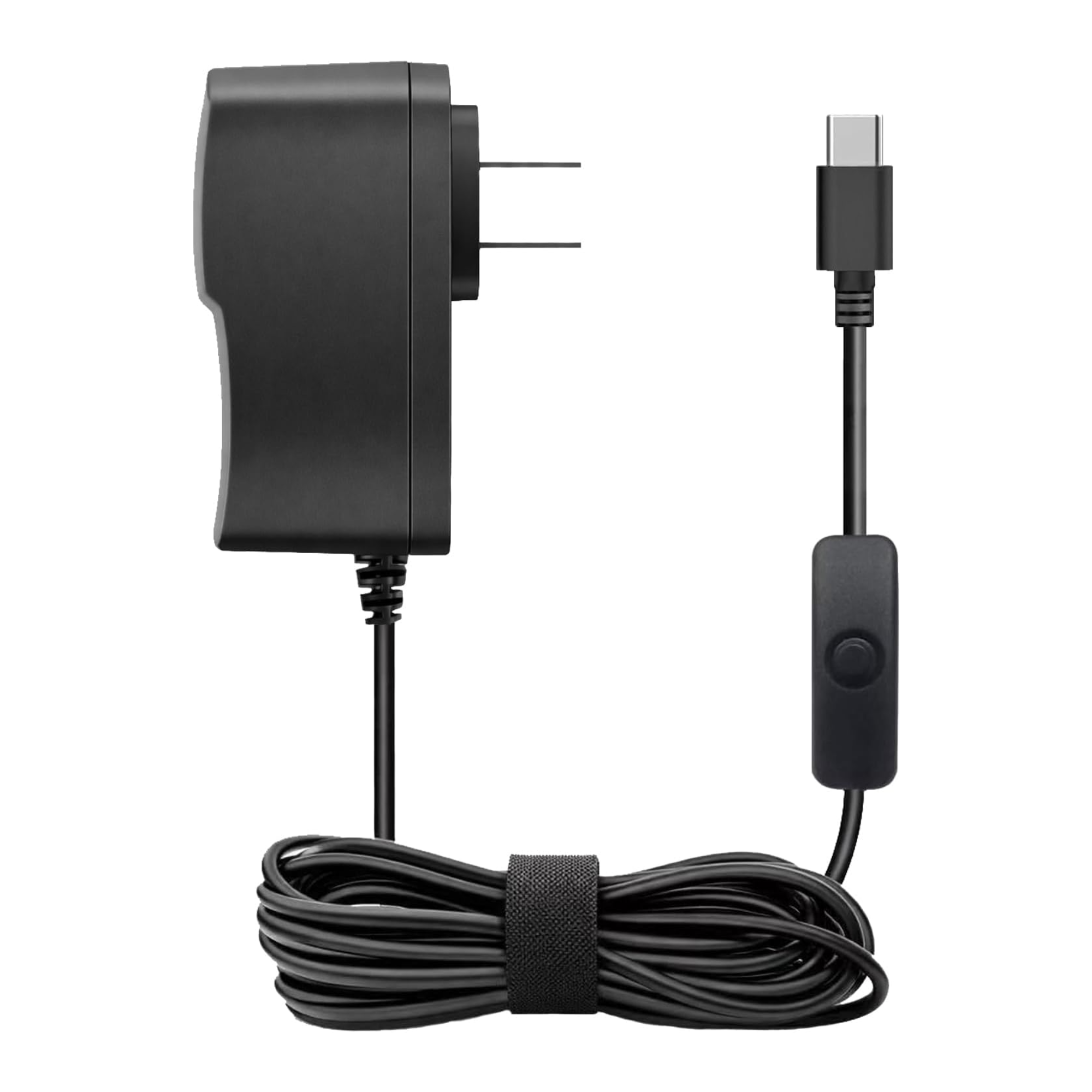

  • Cables – AC Power Adapter (USB C 5V, 3A) & CAT6 Ethernet Cable

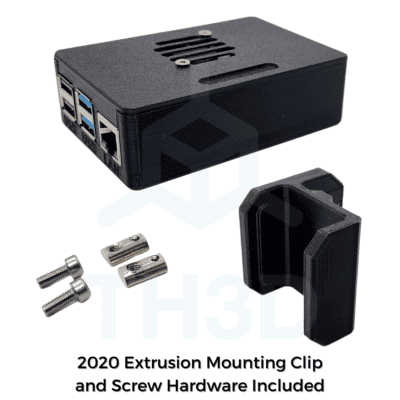

  • 2020 Extrusion Mounting Bracket with Bolts and Roll-In T-Nuts
  • Technical Support from our US Support Team (Including Remote Support for Wifi Setup at NO additional charge)

Documentation

Key features

  • Works over Wifi or Ethernet connection (ethernet cable included)
  • Automatic connection to your printer.
  • IP address of the EZPi will display on the printer LCD so you can easily find it on your network once it is connected to the printer.
  • Arc welder plugin for use with machines that have Arc Support enabled in their firmware
  • Built-in bed leveling visualization for printers equipped with an ABL (including EZABL) system
  • Built-in EEPROM Editor for Marlin (including Unified Firmware) Printers
  • Progress bar support for printers with M73 Support (Enabled in Unified Firmware)
  • Pre-heat button for current GCode file selected
  • Tasmota plugin pre-installed for use with Tasmota WiFi Outlets

Specs

  • This kit contains the Raspberry Pi 4 (4GB RAM) Series Board for its SBC
  • OS is Raspbian with customizations by TH3D to run Octoprint
  • Ships fully assembled and pre-tested by us
  • Custom Case by TH3D EZPi P4+ Kits Included
  • Works with a Wired or Wireless Network Connection.
  • 32GB MicroSD Installed and Pre-Loaded with TH3D EZPi P4+ Image
  • 3 Amp USB C Power Adapter included

Change Log

  • V1 – Initial Release.

OctoPrint is a Registered Trademark of Octoprint.org



Additional information

EZPi P4+ Controller

Weight 6 oz
Dimensions 4 × 6 × 2 in
Made In

πŸ‡ΊπŸ‡Έ USA (with πŸ‡ΊπŸ‡Έ USA and 🌎 Global Materials)

Warranty Length

1 Year

EZPi Wifi Setup

Weight 0.1 oz
Dimensions 0.1 × 0.1 × 0.1 in

EZPi AC Adapter (Included FREE)

Weight 4 oz
Dimensions 4 × 3 × 2 in
Made In

πŸ‡¨πŸ‡³ China

Warranty Length

6 Months

5ft Ethernet Cable (Included FREE)

Weight 1 oz
Dimensions 5 × 5 × 0.5 in
Made In

πŸ‡¨πŸ‡³ China

Warranty Length

6 Months

Add on our HD Camera?

Weight 5 oz
Dimensions 3.5 × 6 × 2 in
Made In

πŸ‡¨πŸ‡³ China

Warranty Length

6 Months

Mini Tripod for Printer Webcams V2 - Bendable & Flexible

Weight 3 oz
Dimensions 6 × 3 × 1 in
Made In

πŸ‡¨πŸ‡³ China

Warranty Length

6 Months

Add Power Control with our EZPlug?

Weight 8 oz
Dimensions 3 × 3 × 3 in
Made In

πŸ‡¨πŸ‡³ China

Warranty Length

1 Year

Add on our USB Power Blocking Cable?

Weight 1 oz
Dimensions 2 × 1 × 0.3 in
Made In

πŸ‡¨πŸ‡³ China

Warranty Length

6 Months

5 reviews for EZPi P4+ Octoprint Kit – 3D Printer Network Controller – Raspberry Pi4, 4GB RAM

4.8
Based on 5 reviews
5 star
80
80%
4 star
20
20%
3 star
0%
2 star
0%
1 star
0%
1-5 of 5 reviews
  1. Great product. But TH3D tech support is required to be successful.

    (0) (0)
  2. Avatar photo

    Ezpi is on all my prints make it so much easier

    (0) (0)
  3. (0) (0)
  4. Avatar photo

    Second one I have purchased and it works great.

    (0) (0)
  5. Avatar photo
    (0) (0)
Add a review
You must be logged in to post a review Log In

Q & A

Does the EZPi kit include a fan to cool the Pi? Have heard that they require one as they can get pretty warm. Thanks! Theodore Hauke asked on November 23, 2023

Yes, our kits have a heatsink on the CPU and a custom TH3D brand 5V cooling fan preinstalled. Our kits run cool!

Tim Hoogland answered on November 23, 2023 store manager
(0) (0)
Will this work with a Creality CR-20? Michael asked on November 11, 2023

Yes this will

Tim Hoogland answered on November 11, 2023 store manager
(0) (0)
How many printers can one pi kit control? I current have 2 printers. Jonathan Giese asked on November 7, 2023

While you can hack Octoprint to run multiple printers it is not recommended or supported by us or the official Octoprint developer.

Tim Hoogland answered on November 7, 2023 store manager
(0) (0)
