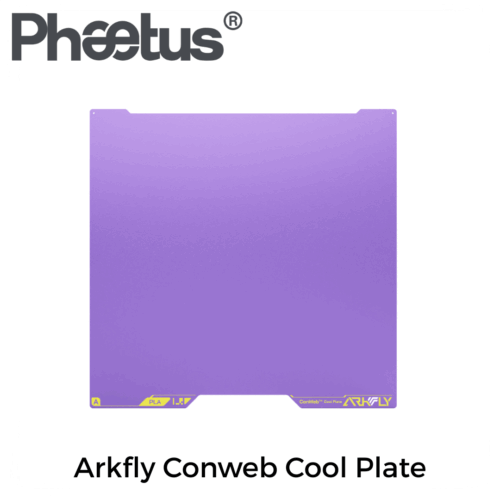

Arkfly Conweb Cool Plate for BambuLab H2D
$28.99
- Room-Temperature Operation
- Superior Adhesion
- Mastery in Filaments
- Effortless Demolding
- Energy Efficiency
In stock
Description
The Arkfly Conweb Cool Plate from Phaetus offers Low-Temperature Adhesion – excellent adhesion without a heated bed. The build plate uses a microporous polymer membrane that generates transient adsorption forces through molecular interface technology. This enables reliable adhesion to the print object even at room temperature without thermal activation.
The integrated Flex Release technology with a side-mounted, thermally insulated handle enables the printed object to be removed easily and safely with just one hand. An AR code on the surface supports precise alignment and minimizes operating errors.
► The build plate has a fine, smooth texture on both sides and a self-regenerating coating that ensures durability.
Structure of the Cool Plate:
- microporous polymer membrane to support the adhesive effect and cold adsorption,
- HRC50+ hardened spring steel core for stability and flexibility,
- microporous polymer membrane to support the adhesive effect and cold adsorption.
Tip: Cleaning the Cool Plate with soap and water is recommended.
Recommended printing temperature:
| Material | AFI (Adhesion Force Index) | Recommended printing temperature |
| PLA | 10 | 30-50 °C |
| PETG | 10 | 60-80 °C |
| ABS | 10 | 100-110 °C (adhesive required) |
| PA | 9 | temperature recommended by the manufacturer (adhesive required) |
| PA-CF | 8 | temperature recommended by the manufacturer |
| ABS-CF | 8 | temperature recommended by the manufacturer |
| ABS-GF | 9 | temperature recommended by the manufacturer |
| PET-CF | 8 | temperature recommended by the manufacturer |
| TPU | not compatible | – |
Lower Prices, Flexible Support Options!
To offer you the best possible pricing, this product does not include technical support. However, if you ever need assistance, we offer affordable support options that you can purchase separately:
- Email Support: $35 per ticket
- Remote Video Call with PC Access: $40 for 30 minutes | $60 for 60 minutes
Get help when you need it! Click here to contact us to get paid support.
Reviews (1)
1 review for Arkfly Conweb Cool Plate for BambuLab H2D
Add a review
Additional information
| Weight | 23 oz |
|---|---|
| Dimensions | 14 × 14 × 0.25 in |
| Made In | 🇨🇳 China w/QC in 🇺🇸 USA |
| Warranty Length | 1 Year |
Related products
Paul Gittins (verified owner) –
It took a little time to get the cool plate settings in my H2D. Once this was done and my first model was complete I was very pleased. The model popped off the build place with perfect adhesion release. It proved true that no bed adhesive was required. I’ve had so many failed prints over the years due to adhesion loss. It’s so nice to print without the messy bed weld applications. Great product.
