Commonly used in Power Supplies
NOTE – Check your existing PSU fan. Some ship with 12V fans others ship with 24V. If you want a 12V version see here: 60mm Fan (12V)
Installation Notes:
- Be sure to check the polarity on the wires you are connecting our fans to. Typically red is positive and black is negative but some of the Chinese printers do not adhere to these standards.
- There is no list of what machines use what as it can vary from model to model and we have even seen differences in wiring colors used in the same printer models.
- Our fans use red for positive and black for negative. You can verify polarity with a cheap $10 multimeter from Amazon or you local hardware store.
- If fans are shorted out/killed due to improper wiring this is NOT covered under warranty.
- If you want to reduce your PSU fan noise you can print this part that ducts the air to reduce noise: https://www.thingiverse.com/thing:3345042

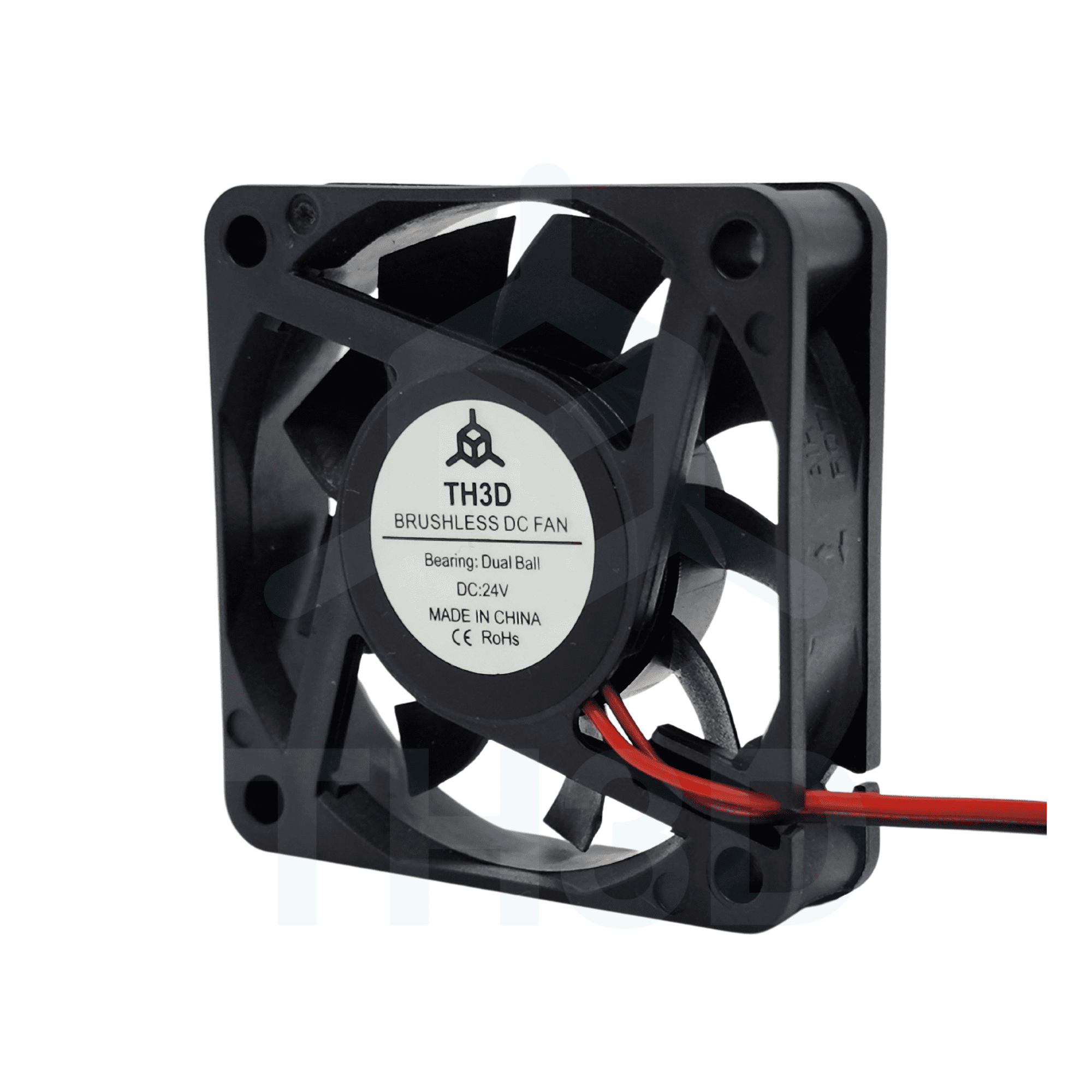

Manufacturer’s Tech Specs
- Voltage: 24V DC @ 0.1A
- Airflow: 25 CFM
- Noise: 32 dBA
- RPM: 4500
- Bearing: Dual Ball
- Wire leads: 2 wire
- Life Rating: 60,000 hours (6+ years)
DIY Part Fitment/Installation/Wiring
This is a universal DIY 3D printer part. That means it will work on almost any 3D printer, but you must know what you are doing.
Our technical support does not cover selecting/designing/assisting in firmware setup and/or 3d models to install this part on your printer. If purchased as part of a kit from TH3D for a particular printer, then it will be covered under the kit when using our firmware package.
Electrical replacement parts usually will require you to splice wires into your existing ones for the part you are replacing (soldering and heat shrinking wire splices is recommended for proper connection).
Some of our universal electrical parts come with bare wire ends or plugs on them. These ends may or may not directly plug into your 3D printer. If they do not, you will need to splice the wires into the existing ones on your 3D printer.
Warranty Information
3 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link. Technical support is limited to the scope of the product itself and not your entire machine.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
mjbaldwin0352 –
This fan works for both the main board cooling fan and the hot end cooling fan (not the part cooling fan). They run smoother and quieter than the stock fans and will last much longer.
(0) (0) Watch Unwatch
Question
Matt Oldmixon –
Is this the same fan that comes in the Mean Well PSU on the Ender 3 Pro?
(0) (0) Watch Unwatch
Tim Hoogland –
All the meanwells use 12V 60mm fans.
(0) (0)
draxus (verified owner) –
I figured I’d try swapping this PSU fan for the one on my Ender 3 after swapping the other two (hot end and controller). This is a definitely a much better quality fan than the one in the stock Ender 3 power supply. I’m not sure if it’s any quieter than the stock fan, but it wasn’t any louder… And it definitely seems to push a lot more air. I decided to try a fan shroud (off thingiverse) which seemed to help with noise levels (part of the motivation to replace them). I might have been concerned using it with the stock fan for airflow, but no worries with this one.
The only issue I had was with the Stock Ender 3 PSU and not the fan. When I pulled the stock fan connector the stupid glue pulled the whole connector off and I wasn’t 100% of the orientation of it on the power supply board. I went by what they had printed on the circuit board (+/-) for the connector and put everything back together. The fan didn’t work. It turned out it the print on the circuit board was wrong (Verified with my multimeter). I flipped the connector back around, powered it on, and everything was good. The fan works great and will probably outlast the rest of the power supply.
(0) (0) Watch Unwatch
Question
Kenny Lin –
Is the 24v version compatible for Anycubic Vyper? All the other Vyper fans are 24v but reddit says the PSU fan is 12v, need to confirm.
(0) (0) Watch Unwatch
Tim Hoogland (verified owner) –
It depends on the PSU manufacturer. We recommend you open it up to see what your existing fan states its voltage is before purchasing a new fan. Most PSUs are 12V or 24V.
(0) (0)
