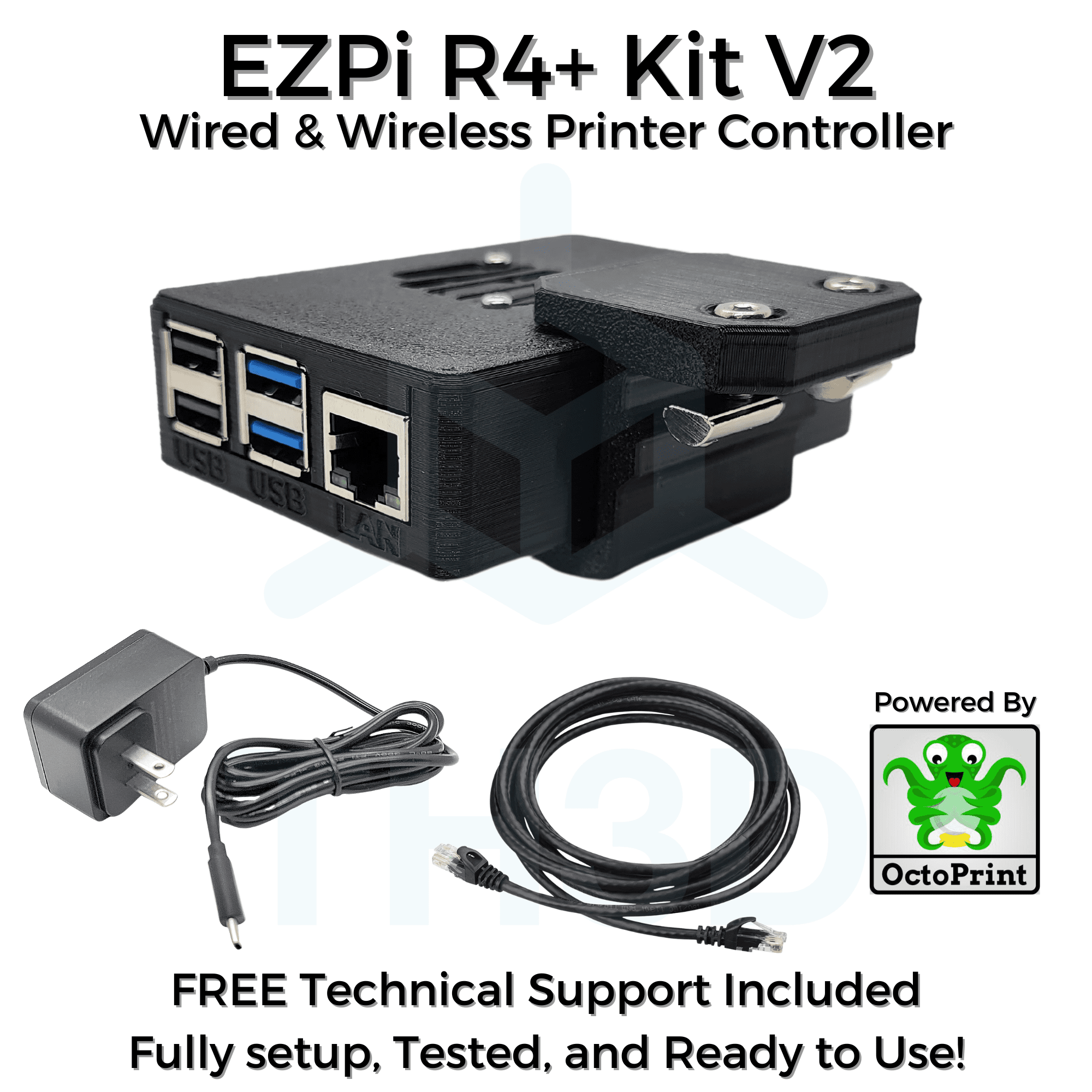

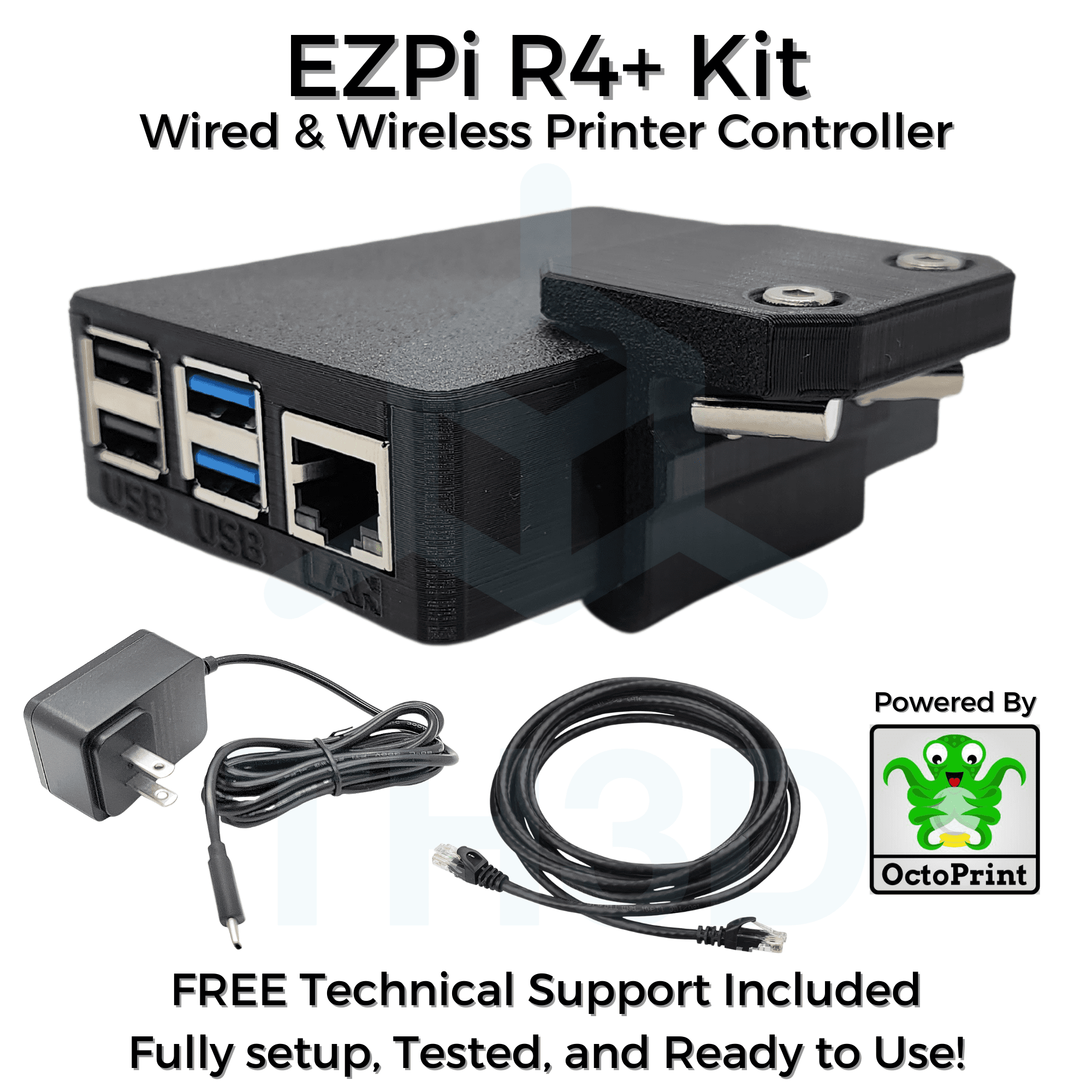

What is the EZPi?
The EZPi is a pre-setup, tuned, and configured OctoPrint kit. OctoPrint is an open-source project that lets you easily control your printer from your computer, smartphone, tablet, or laptop. You can send your Gcode over to the EZPi through your web browser so no more tinkering with SD cards! You can also connect a USB camera to the EZPi to do monitoring and time-lapses of your prints. There are a ton of features that can be added in addition to what we load like PushBullet integration, YouTube Live Streaming, and much more!
The EZPi is a custom-built Armbian-powered OS image customized by TH3D for the best user experience with Octoprint. These are fully assembled and tested kits. All the hardware has been fully tested to correctly work together so you can have a very reliable and robust 3D printer control platform.
What is included?

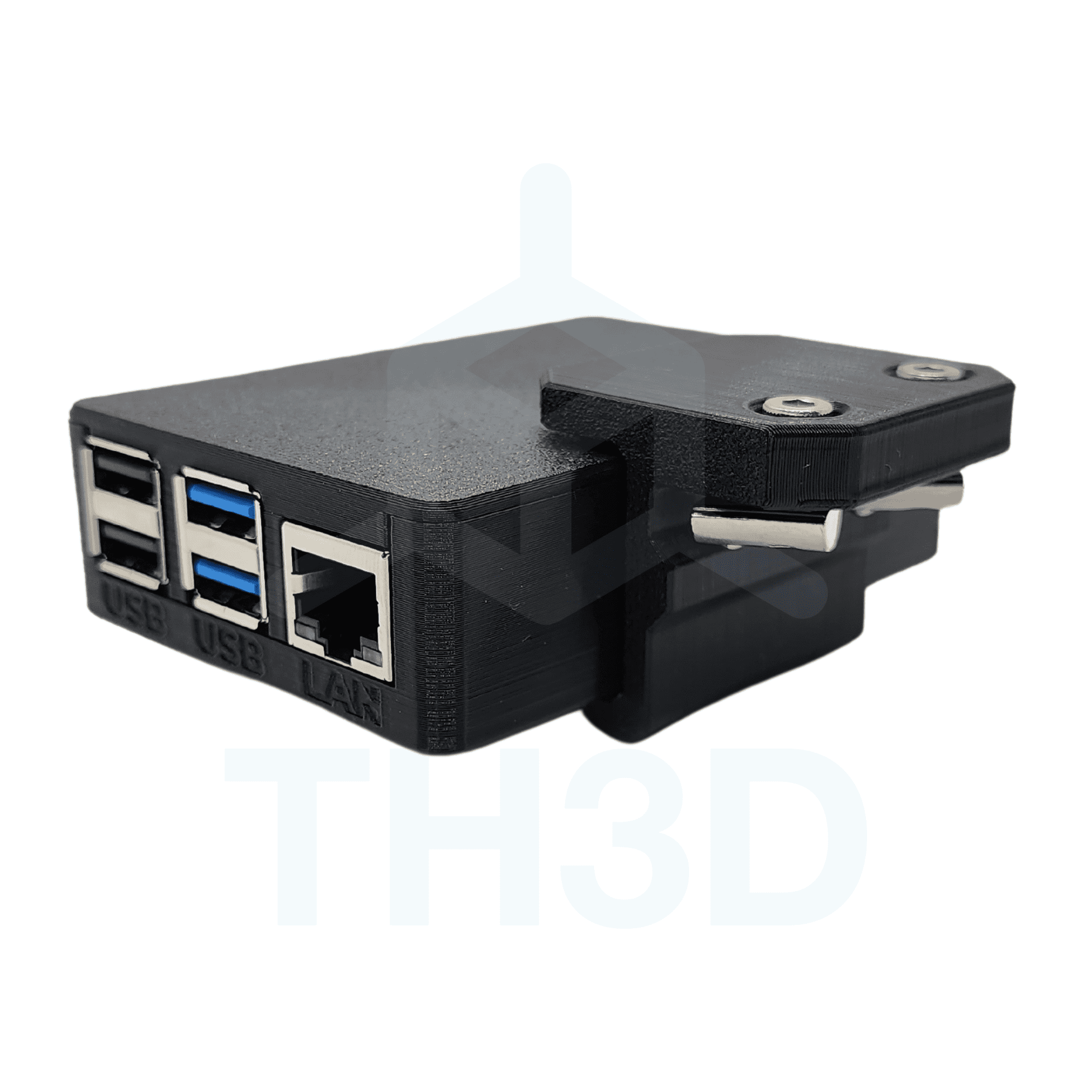

- Our Latest Custom EZPi R4+ Controller
- Hexa-Core ARM CPU w/32GB of Storage & 4GB RAM
- Built-in 802.11AC Dual-Band Wifi and GIGABIT Ethernet
- Cables – AC Power Adapter (USB C 5V, 3A) & 10ft CAT6 Ethernet Cable

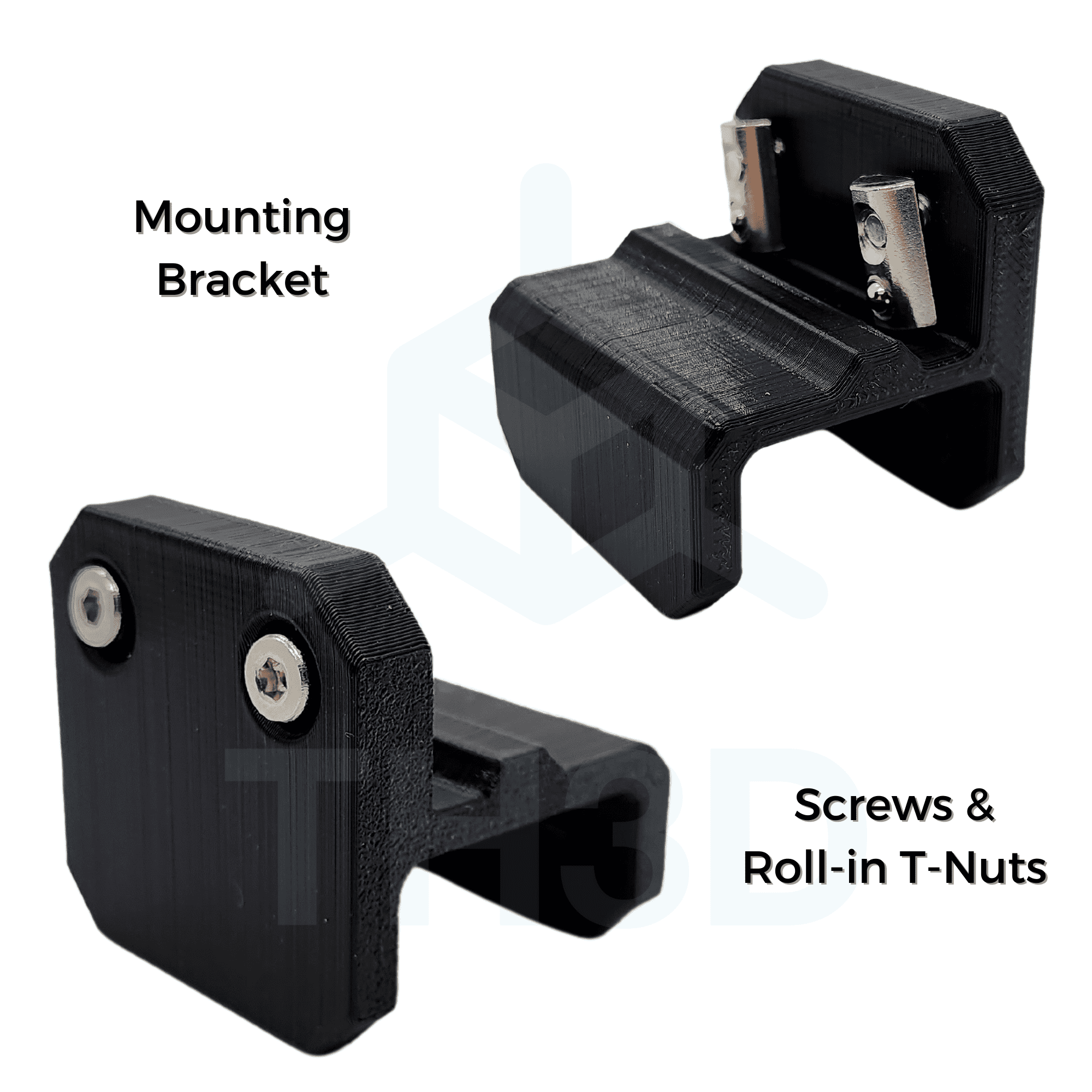

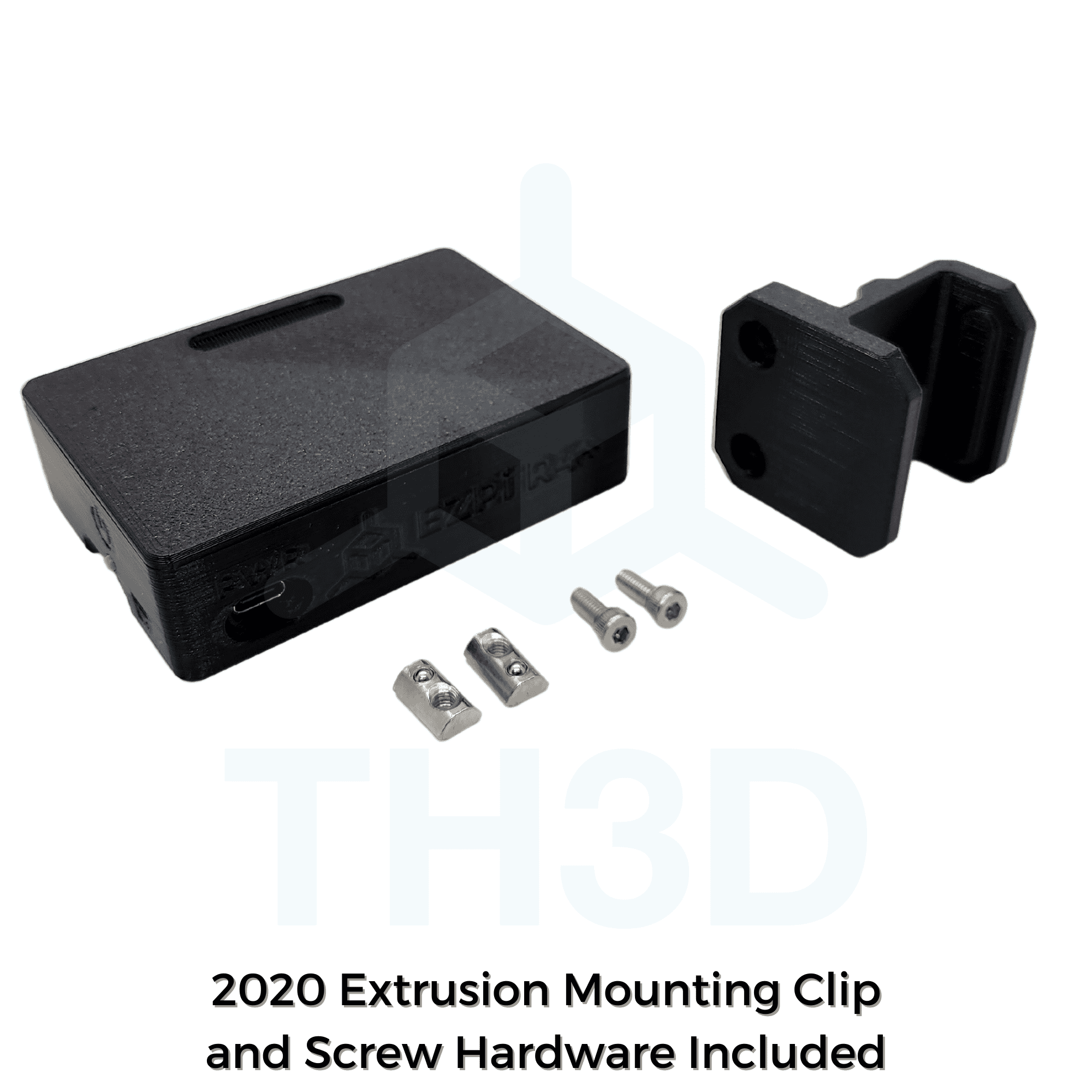

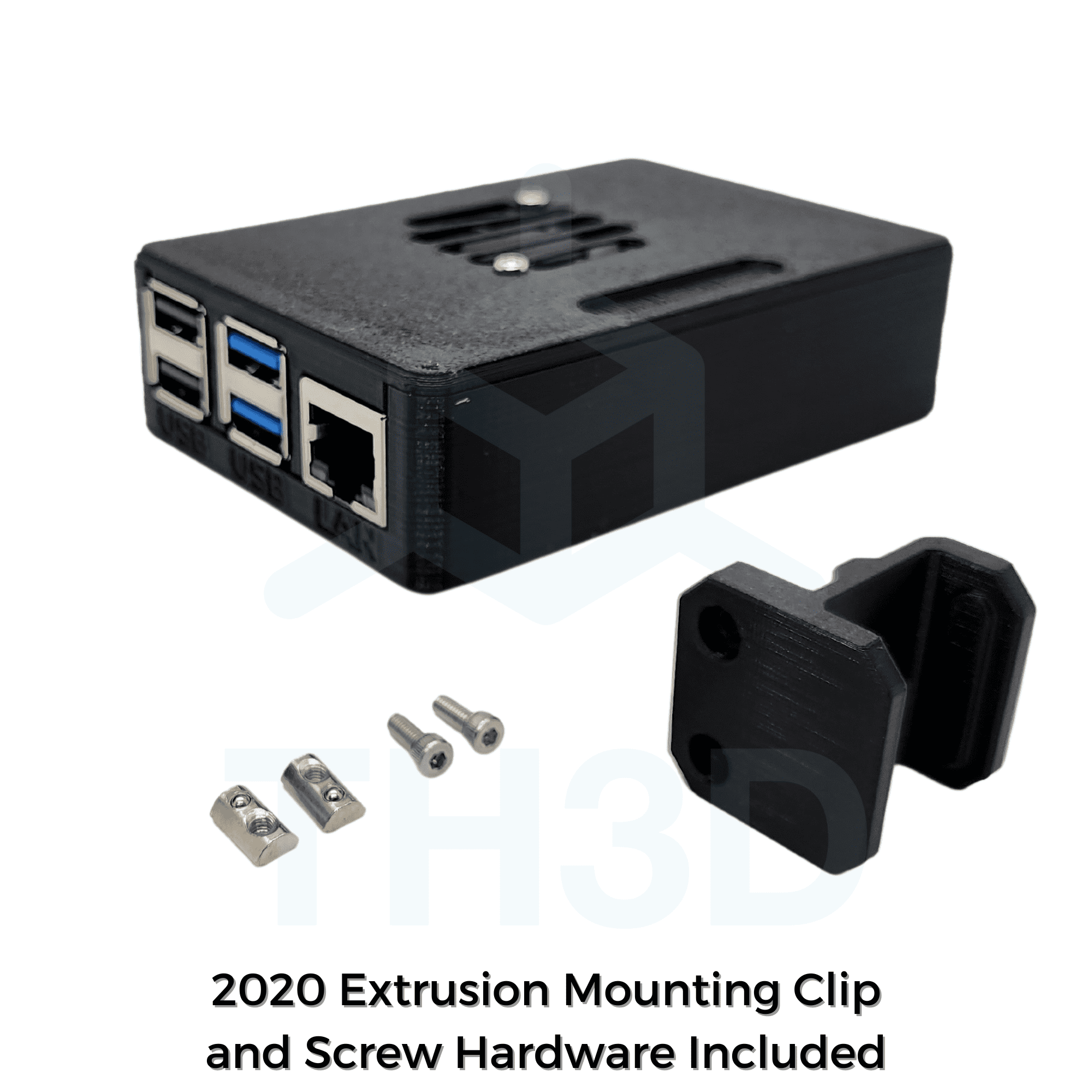

- 2020 Extrusion Mounting Bracket with Bolts and Roll-In T-Nuts
- Technical Support from our US Support Team (Including Remote Support for Wifi Setup at NO additional charge)
Documentation
- EZPi – Getting Started Documentation
- EZPi – Getting Started Video
- EZPi – Wifi Setup Guide
- EZPi – Wifi Setup Guide (Video)
Key features
- Works over Wifi or Ethernet connection (ethernet cable included)
- Automatic connection to your printer.
- IP address of the EZPi will display on the printer LCD so you can easily find it on your network once it is connected to the printer.
- Arc welder plugin for use with machines that have Arc Support enabled in their firmware
- Built-in bed leveling visualization for printers equipped with an ABL (including EZABL) system
- Built-in EEPROM Editor for Marlin (including Unified Firmware) Printers
- Progress bar support for printers with M73 Support (Enabled in Unified Firmware)
- Pre-heat button for current GCode file selected
- Tasmota plugin pre-installed for use with Tasmota WiFi Outlets
Specs
- This kit contains the RockPi 4 Series Board for its SBC
- OS is Armbian with customizations by TH3D to run Octoprint
- Ships fully assembled and pre-tested by us
- High-quality, Silent case included
- Works with a Wired or Wireless Network Connection.
- 32GB MicroSD Installed and Pre-Loaded with TH3D EZPi R4+ Image
- 3 Amp USB C Power Adapter included
Warranty Information
6 Months Warranty -Â Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
OctoPrint is a Registered Trademark of Octoprint.org
Question
kj12.wright –
Tim,
How many printers can you operate with one Pi. or do you need one Pi per Printer?
Thanks,
Kevinm
(0) (0) Watch Unwatch
Tim Hoogland –
While it’s possible to “hack” octoprint to run more than one printer off one controller it is not reliable and takes a lot to get running. It requires backend modifications that can break things when updates come out. We only officially support one controller per printer. This is also how we run our printers here as well (one EZPi controller per printer).
(1) (0)
Question
kj12.wright –
Thanks Tim Take Care
(0) (0) Watch Unwatch
Tim Hoogland –
You too Kevin!
(0) (0)
