From: $49.99
Add auto bed leveling to your 3D Printer with ease! Our EZABL is Fast, Accurate, Light, Shielded Cabling, Multiple Power Options, NO moving parts, NOT affected by temp/humidity, and includes US-Based technical support.
If you need a sensor mount, select one below for the OEM mounts available in PLA or ABS. STL files are provided if you want to print your own.
The EZABL™ Pro kit is a product designed, manufactured, and sold exclusively by TH3D to make adding automatic bed leveling (ABL) to your printer as easy as possible. Everything from the hardware and firmware to use the kit is tuned for the best performance by us here at TH3D and supported by our US Tech Support team.
Our EZABL kit works with most 3D Printers. To make sure we have firmware and official support for your particular printer model check our official compatibility list here: EZABL Printer & Firmware Support List
If you have any questions that are not answered on our page here then Contact Us or use the Live Chat before purchasing.
Setting up with standard Marlin or have a printer with a 3rd party control board?
Check out our setup guide here: EZABL Firmware Setup for “Vanilla” Marlin
Troubleshooting Information Help Center in the “EZABL” section. Need help that our troubleshooting articles don’t cover or have a question? Send us a message with our Contact Us page.
How Does the EZABL™ Mount?
The EZABL™ mounts to your printer hotend and we supply STL files for over 40+ different mounting options for the 25+ machines we support. All our STL files are located in the Unified 2 STL Pack. You will either need to print a mount for your particular printer or select one from our OEM mount selection above.
You may need some M3 screws (or others depending on the mount) to mount the sensor and we have a screw assortment that covers all the sizes you may need for all the most popular mounts.
Do I need to have a bootloader on my printer?
Yes, you do and most modern printers have this already loaded on the board. Almost all 32 Bit CPU boards come with bootloaders on them.
If your printer has a 1284p CPU on it, then you will need to flash the bootloader. Add on the Bootloader kit above.
If you are not sure you can use the Live Chat or Contact Us and we can let you know if your printer needs a bootloader flashed or not.
Does the EZABL work with Klipper?
Yes, these probes are supported by Klipper firmware. You can see our Klipper setup guide here: https://support.th3dstudio.com/helpcenter/ezabl-klipper-setup-guide/
Our support covers the EZABL probe setup. Before installing our probe you must make sure the rest of your Klipper setup is completed.
What is the accuracy of the EZABL™ Pro?
On a machine with no mechanical issues and a properly installed sensor our kits achieve 0.01mm or better accuracy. Most of our customers report a M48 result of 0.005-0.001mm when properly installed.
Can you include a sensor mount?
We have "OEM" mounts available above as optional addons but if you want a custom mount printed up we also offer print services in PLA, PETG, and ABS. Contact Us with the STL files if you want a custom mount printed.
How much does the EZABL™ Pro sensor weigh?
What is the maximum ambient temperature the EZABL™ can operate in?
The maximum ambient temperature recommended is up to 70C. We have tested them in enclosures up to 75C ambient temperatures.
Ambient is the temperature of the air around the sensor. You can use our EZABL on bed temperatures up to 150C.
Does the EZABL™ work on *insert surface here*?
Our sensors work on all print surfaces that you print on. Our sensors do not require a special type or color of surface to work. This means you can use them on glass, pei, steel, flexplates, garolite, and more!
What is the difference between the EZABL™ Pro/Mini/Micro?
Just the physical size and weight of the sensor. We have smaller sensors for people who want a smaller, lighter probe for specialized applications where the larger 18mm probe will not fit.
Will the EZABL™ Pro work with an AC Bed?
Yes! We’ve made major improvements to the new Pro sensors that make them work on AC beds that are properly connected with a quality SSR. If you use a good SSR (like the Mager we sell) then you will have no issues with your EZABL™ kit with an AC bed (and you can control the bed from your printer!)
Where is the EZABL™ Pro made?
The EZABL™ Pro is designed by TH3D and we use multiple suppliers across the globe to source the parts and build our custom EZABL™ Pro boards & sensors. All final testing, QC, packaging, and support is done here in the US.
I have a custom printer or one with a control board I swapped, will you setup my firmware for me?
The EZABL will work with any Marlin, Klipper, or RepRap based machine. However, our included support covers machines that are listed above with their original control boards (or supported aftermarket boards) and our Unified Firmware. On custom printers (this includes models we support but with their boards swapped) we cannot possibly account for every variation when a customer swaps their board or has a custom machine.
Does the EZABL™ Pro Kit work with OctoPrint/EZPi?
Absolutely! We love OctoPrint and use it here. Every one of our production machines has an EZPi kit on it and our EZABL™ kit.
Have a question we didn’t cover here?
No problem! Contact our Support Team or use our Live Chat with any questions you may have and we’ll be happy to answer them!
Warranty Information
6 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link. Technical support is limited to the scope of the product itself and not your entire machine.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
EZOut Filament Sensor Kit for Anet E10
EZOut V2 Board - For use with BL Touch or Filament Sensor - Anet 12864 LCD × 1
Anet 10 Pin Extension Cable for EZOut × 1
EZOut V2 Filament Sensor Only - Replacement/Spare × 1
Subtotal: $22.97
m.cornieles (verified owner) –
I try to be as honest as i can on reviews because when i make any purchase i rely on other people reviews….
So far this is the best piece of hardware and software I have added to my CR-10 printer.. is a shame i wait almost 18 month to do so.
This product simply works PERIOD. Since i installed the EZABL pro kit to my printer i have had only 2 bad prints and none were relate to the printer, it was the filament that broke due to a bad extruder….
I once said, all 3D printers should come by default with this EZable installed, that would change the experience of 3D printing… i had to go through a tone of issues because of not labeled bed but that is on the past…
5 out of 5 starts for this product…. NICE work TH3D.
(3) (0) Watch Unwatch
Rolo (verified owner) –
I was so sick of manual bed leveling using springs and adjustment knobs. I was never able to get it right and would get so frustrated I’d give up on most print jobs. I was ready to throw out the printer. I’d been considering the EZABL for sometime, but was intimidated by the install, and it turned out to be a lot easier than expected. This paired great with the Solid Bed Mounts! This was a life changing upgrade and I’ve never printed so well. I recommended it to a friend who was also having issues and it’s changed his life too. Highly recommended. My prints never printed as good as they do now. It definitely brings peace of mind.
(1) (0) Watch Unwatch
tbabcock67 (verified owner) –
This was my first purchase from TH3D and cant say enough about how well this works and the over all benefit it made to the quality of my prints. I am fairly new to 3D printing and will admit the physical install of the device is quite easy but getting all of the computer work done left me with multiple challenges. I would highly recommend doing all the research first before preparing to take on this task. Understand how to flash and set up the Unified firmware as well as the settings in your start gcode of your slicer. When complete, it performs just as advertised and even better then I expected. The support team is amazing and adds so much value to the purchase of the product it will be easy for me to buy more items from Tim and the TH3D group in the near future.
(1) (0) Watch Unwatch
David A. (verified owner) –
I’ve finally determined what my problem was,and now the ezabl works very good. The pre printed mount I got was well made,and easy to use. The written instructions along with the video were fantastic. Thanks for making a fantastic product with awesome support.
(1) (0) Watch Unwatch
spudmlgnjr (verified owner) –
Sure you can level your bed, but if the surface isn’t flat then what? Then you get the EZABL, now perfect first layers every time. Turned my CR-10S from a headache into a rock solid machine.
(1) (0) Watch Unwatch
CRUISER DON RUSSELL (verified owner) –
I AM PLEASED TO REPORT THAT THIS UPGRADE WAS THE CORRECT ONE TO MAKE. I THINK I AM BECOMING REALLY ATTACHED TO TH3D PRODUCTS. AS WITH MY OTHER ITEMS, I ENJOYED ALL THE VIDEO SUPPORT AND THE WEALTH OF THEIR KNOWLEGE BASE.
I’M STILL WAITING FOR MY REPLACEMENT STEPPER, BUT I DID PROVE THAT ALL IS SET-UP CORRECTLY AND AWAITING USE.
I FIND IT VERY EASY NOW TO RECOMMEND TH3D PRODUCTS, THEY GOT IT COVERED !
(2) (0) Watch Unwatch
Antony Pearce (verified owner) –
I have been printing for over two years with a couple of different printers. I installed an EZABL on my CR-10S on Tuesday night. Tonight is the first time I have ever walked away before the printer had finished the first layer, in fact it hadn’t even completed all the outlines.
(1) (0) Watch Unwatch
patrickjhenninger (verified owner) –
I’m fairly new to 3D printing, but I like to get my hands on technology as much as possible. I bought an Ender 3 Pro, without knowing ANYTHING about 3D printing. I ended up with a crash course on how things work, different terminologies, and was at it for about 2 weeks before I was tired of leveling my bed. I didn’t want to take a chance on an eBay kit, so I came to TH3D and started reading through different things, and decided this was the best kit for me. I ordered everything including the solid bed mounts and Arduino Uno. I will admit some of the instructional videos are fast-paced, but after watching, pausing, watching again- I got it tackled. My printer has been NONSTOP since, and the quality of what I’m printing has improved SO much.
I can’t speak for other printers, but if you have a Creality printer (Ender 2/3/Pro, CR, etc) then definitely get this!
Make sure you have some extra screws for mounting the sensor to the hotend, I lucked out and reused some from my extruder before I upgraded.
Oh, the Nerds were a nice touch.
(2) (0) Watch Unwatch
glasseyi (verified owner) –
This has been the one of the BEST! upgrades I have done to a number of my printers!! Easy to set up! easy to use! Follow the terrific guide and your set for the best first layer you’ll ever get!! Thanks to Tim and the crew for another top quality upgrade!!
(2) (0) Watch Unwatch
mmathosian (verified owner) –
Easy to set up. Incredibly accurate and consistent results. This is my second EZABL kit from TH3D and I wouldn’t use anything else!
(1) (0) Watch Unwatch
skater-boy24ryan (verified owner) –
Strate out of the box I had issues with my CR10S hot bed being warped. After months of issues and countless YouTube videos on fixes using tape etc. I stumbled upon th3d and their EZabl kits. I was sold immediately as I was desperate for a solution. So glad I did. With their firmware and ezable I now have peace of mind that my printer is not only safer to use but also I am no longer wasting filament and getting amazing prints every time.
Thank you Tim and team for the awesome firmware and products.
(0) (0) Watch Unwatch
jeff.buzzell (verified owner) –
The install was easier than i expected. followed the instructions and bam, it worked. Great upgrade though makes me realize how warped my bed is.
The things i would change are some better cable management for the control box and a better connector for the power in the control box. the small wires and location are difficult to connect up.
(0) (0) Watch Unwatch
Paul Gariepy (verified owner) –
Amazing unit and firmware. It has made printing on my cr5 s5 fun again! no more bed leveling issues! it just works every time!
(0) (0) Watch Unwatch
TreeClocker67 (verified owner) –
Do you spend your precious time leveling your bed manually like some kind of 3D printing cave man? Do you want to have beautiful first layers? Do you want the ability to hit print and not have to worry about watching your first layer to see if your manual leveling job turned your nozzle into a bed engraving tool?
Then buy the EZABL Pro and throw that paper away. Rejoice knowing that after you install the EZABL Pro you’ll be saving trees from being used as a leveling too.
The installation of the EZABL pro is way easier than the old version, the included case has more mounting options, the option to directly power it via a plug OR direct wire, no more plug cutting, the color scheme.
The EZABL Pro/EZABL are on both my printers and make printing life so much better.
“Just do it. Don’t let your dreams be dreams” – Shia Labeouf
(0) (0) Watch Unwatch
Cecil Clontz (verified owner) –
After struggling for more than 40 hours with two different BLTouch V3.1 on an Ender 3 and finally determining that despite all the guides and all the firmware changes, it just wasn’t going to work. I received the EZABL sooner than the tracking said and it was installed in under an hour. It works exactly as advertised. The guide and video were extremely thorough and the kit is well designed. The Unified firmware was packaged well which made it simple to configure and compile. I wish I had started with EZABL and not BLtouch but lesson learned.
(5) (0) Watch Unwatch
Spencer Francisco (verified owner) –
I’ve been a BLTouch evangelist for awhile until I did my own independent repeatable tests to find that it wasn’t as consistent as I hoped. This was after doing all kinds of bed adjustments from different springs to removal of springs. Still couldn’t get the best first layer. After doing some homework on the EZABL, I couldn’t believe I didn’t have this sooner. The install was pretty straight forward and the Unified Firmware had some simple configuration to get started. So far I’m very happy with the results. Thanks guys!
(0) (0) Watch Unwatch
Barry Mizes (verified owner) –
I had manually leveled my bed and been using it that way for a number of months. The problem was that the glass was warped to varying degrees and so while I could get a few areas level, other areas would not be level. As long as I printed in these distinct leveled areas, everything was good. Last week I decided to print something large, and of course, those parts in the unlevelable areas did not adhere properly. Being tired of this nonsense, I bought the EZABL Pro kit and installed it this morning. Using the printed guide and the video, the installation was easy (I had already uploaded a bootloader and new firmware). To really test how well it worked, my first print was a large item that I set to print dead center where the worst warp had been. I’m happy to report that the first layer printed perfectly – everything adhered and no curls or missing areas. I know there are lots of options out there for bed leveling, but what sets Tim’s gear apart is that he has made it easy for anyone to install and use it. It just plain works. Thanks again for a well designed and supported product.
(0) (0) Watch Unwatch
Brynn MacFlynn (verified owner) –
All the issues I had installing this were my fault. Period, end of discussion.
The biggest thing to remember is that when you’re adjusting the sensitivity, you’re setting the point at which you want to stop to keep from crashing into the bed. So when they say you want the light on, you want the RED light on, and only just on. When I first installed it and calibrated I set the red light to be just barely off. That was a poor decision, leading to inconsistent leveling and driving my hotend into the bed many times before I sucked it up and redid everything.
Now though? I’ve gone from fiddling with everything multiple times in the first frantic minute of a print to (with solid bed mounts) twiddling the nob once or twice to babystep and then walking away. Much easier, more consistent, and less stress and fretting. My one problem is the starting gcode provided puts the swipes on the very edge of the build plate–however since I’m using a mirror bed from Ikea, I have to put the mirror on the very far left in order to avoid printing into thin air. Not a problem by a long shot, just means I’m watching for those magnetic build sheet sets to come back in stock ASAP!
(2) (0) Watch Unwatch
Cornelius H (verified owner) –
I thought I’d order it and wait for a good day to dedicate to configuring a new setup, but overall this was far easier to setup than the Ender 3 pro and/or using an Arduino to flash the Ender firmware to Marlin ( which I was running before I bought this). A pdf scan and youtube video later and this thing is printing better than I could have imagined. On top of that, I went for the solid bed mounts which makes this all even easier.
Definitely happy with this purchase. It’s going to save me hours on printer troubleshooting and setup.
(0) (0) Watch Unwatch
iain.wheeley (verified owner) –
I can’t believe I waited so long to bite the bullet on this purchase. Easy to install and calibrate and I have now pretty much given up on baby-sitting my first layers on any print I do for PLA, PLA+ and PETG as I know it will come out perfect.
3 Thumbs up
(0) (0) Watch Unwatch
pumbaa17 (verified owner) –
The EZABL Pro was a Christmas present to myself and at first I was not sure I was happy with it. It was a journey and in the end all of the issues were mine. That said I now have an Ender 3 Pro that is fine tuned to consistently deliver a great first layer and great quality prints overall.
The setup guide was easy to follow and detailed. I had the unit installed and configured in no time at all but initially my print quality did not change a bit. I contacted support and began my journey with Mac began. He was quick to react, provided detailed guidance and suggestions and when available include links or photos to help explain the actions he was asking me to take. We were pen pals for almost a month. This had everything to do with me and my schedule and nothing to do with TH3D/Mac. I almost always had an e-mail response within 24 hours.
In the end,all of the issue we mine and easily resolved. I now have a supremely aligned printer frame, fully grounded and calibrated sensor. Very happy with my purchase and my introduction to TH3D.
Tim – I cannot say enough about the support that Mac provided. Timely, professional, patient with a relatively new user and always there with a suggestion, advice or guidance. If all of your team provides the same level of customer service your company has a great future. Thanks for the great products and service.
(1) (0) Watch Unwatch
reconit (verified owner) –
Ordered from Australia, arrived quick but more importantly it is running fantastic. It is by far the single biggest hurdle to 3D printing (getting a bed level) and it is now fully automated on my machine. Took about half a day in time to get it all operating to the level I am now very happy to achieved with the EZABL. Well done TH3D you have developed a great product, let me know if you ever decide to IPO.
(1) (0) Watch Unwatch
hrsnround34 (verified owner) –
Very Easy hardwire install on my Ender 3.
I watched the videos a couple times in the last week before ordering. Once i got the EZABL it was such an simple install.
I only did this upgrade so i could switch between surfaces without having to re-level the bed.
I probe 9 spots on the bed and the variation from spot to spot is 4.5 to 4.7. so the bed is definatly not warped.
You must follow the Z calibration instructions. Watch the video. Do not pinch the paper under the nozzle like you do on manual level. Just let it grab the paper. I had my nozzle so tight to the bed that the fillament was jamming and backing up in the tube. After cleaning the 4th jam. I re-watched the video and saw how Tim just let it grab the paper and then backed it off using the baby stepping. I then did the same and i have had perfect prints every time.
I have tested going from a magnetic surface, to a TH3D EZMat on a hard plate to a glass surface. Now i just change surfaces, tell it to print and let it run. No readjust needed.
(0) (0) Watch Unwatch
carlos varas (verified owner) –
I had been using a generic sensor with an optocoupler for a while and could never get the level quiet right on my cr10 with mirrored glass. I tried everything and nothing worked until this sensor. I have to say that quality really does matter. While my previous sensor technically worked this one is sooo much better. I have a pretty warped bed and this thing just printed the best first layer covering most of the bed Ive ever seen!
(0) (0) Watch Unwatch
justin.toner (verified owner) –
So now I can finally press the print button and confidently walk away knowing I will have a perfect print! I have upgraded two ender 3s, a cr10s pro and am getting ready to do my ender 5 plus as well. The reason, well since I put this abl on my ender3 it has been the most reliable printer of the bunch. I removed my skr mini and touch screen from my other ender3 pro with bl touch due to inconsistent prints and lots of issues. Swapped back to a 1.1.5 silent board and put the ezabl on with th3d firmware and now it too prints perfectly every time. Cr10s pro has been a nightmare trying to get consistent first layers. Hoping the ezabl kit I have for it but yet to install will make it print as well as my enders 3s. The cr10s pro and ender 5 plus won’t pause for me in cura post processing to make the printer pause at an exact layer to be able to change colors. Only the ender 3s with th3d firmware have worked for me when trying to do this so that and the perfect first layers are why all 4 of my creality printers will be ezabl outfitted.
(0) (0) Watch Unwatch
ssmith40 –
After 3 months of pulling my hair out. It was very frustrating only getting 1 print out of my CR10-S Pro then spending 2 days of frustration trying to re-level the bed because the stock sensor was rubbish.. I saw the EZABL pro and of course thought Naah it wont fix the issue..
I was hesitating if I should spend anymore money on the printer.. I was ready to cut my losses.. But decided to give it a try..
Well all I can say is WOW.. what a difference this thing makes.. I just send the gcode now to the printer and walk away..
The EZABL combined with the solid Bed mounts and your bed leveling issues are a thing of the past.. I cant recommend the EZABL enough now..
(0) (0) Watch Unwatch
Ken (verified owner) –
This sensor works great on my Cr-20 Pro. It can probe the bed much faster than the BLTouch V3.0 the printer came with, all while staying extremely accurate even after it heats up. The EZABL is really easy to install and it is extremely straightforward to calibrate. The installation guide was easy to follow and documented each step perfectly. The build quality of this sensor is miles above the BLTouch and has no moving parts to break.
After using the sensor for a couple of months it still functions perfectly. The only problem I’ve had so far was not related to the sensor, but to the printer itself. I’ve noticed that if you tighten the eccentric nuts for the bed too much or one is tighter than the other is skews the results. If you are having problems and think it isn’t compensating correctly, I highly recommend checking the eccentric nuts for the bed.
(0) (0) Watch Unwatch
besunagel (verified owner) –
What a difference this made, ABL in less time than the BL touch. Easy to install and calibrate, got my bed tuned in tight. Loved it so much, got another one for my other printer.
(0) (0) Watch Unwatch
bruce boots (verified owner) –
This was easily installed, works great and has many places to hide the adapter box.
(0) (0) Watch Unwatch
ryandkaiser (verified owner) –
Installation was a breeze. The one question I had was answered via email within minutes. You can’t ask for better documentation. Calibration was a pain for me, but only because my bed was so incredibly warped. After reviewing the troubleshooting guide, I realized it deviated in height too much for the sensor to handle, so I put spacers under two of the solid mounts, which brought it within about 1mm and “viola!”–instant first-layer porn–every time. I love this company and will always look here first when I need something for my printer.
(0) (0) Watch Unwatch
Andrew Esquivel (verified owner) –
This thing is blazing fast compared to the BL touch, Its just as (if not more) accurate too. My 7×7 scan in super fast probe mode makes the BL touch look like a joke. I can get standard deviations of 0.0005.
its just better in every way. it was easy to install. Such an easy thing to recommend.
(0) (0) Watch Unwatch
Kurt Medley (verified owner) –
I installed the EZABL in conjunction with the solid bed mounts for my Ender 5. After some fiddling with my z-offset, I’ve got this thing dialed in. Not having to level my bed in between prints has been amazing. This device practically guarantees repeatable, perfect first layers* across the dimensions of the bed. I don’t babysit my first layers anymore. I won’t be considering another printer without ABL now. The EZABL spoiled me.
*it did for me ;D
(0) (0) Watch Unwatch
Walter Dominguez (verified owner) –
This thing is awesome im new to 3d printing and was afraid it would be to complicated for me but i grew tired of having to level my bed. This was super easy to setup on my Ender 5 Pro just take your time and follow the instructions customer support was awesome to answer my only question even with this covid-19 stuff going on got it delivered super fast. If you have a 3D printer you need this!! All my prints now are perfect!! Also got some free Nerds candy always a plus.
Thanks TH3D
(0) (0) Watch Unwatch
Collin Farmer (verified owner) –
Although many will argue that only lazy people use an ABL sensor, this is the best upgrade I have ever bought for my Ender 3 Pro! Don’t even bother with the BLtouch. That thing is trash compared to the EZABL. BUT BUY BUY
(0) (0) Watch Unwatch
Nate Gilstrap (verified owner) –
This was an absolute game changer for my Ender 3. I have struggled with bed leveling since day one. Would get good prints but have to level after almost every print. I opted for the solid bed mounts from TH3D as well as the EZABL PRO. The install was super simple and after about an hour I was up and printing. I feel much more comfortable with setting my print and walking away now. Thanks for the quality products! Happy to have you in Indiana as well, shipping was crazy fast.
(0) (0) Watch Unwatch
vipergtsrrt10 (verified owner) –
this has helped me out with my cr10s s5…makes it where i dont have to live level the bed as it prints anymore…i have gotten a few for the printers i upgraded for Christmas presents…
(0) (0) Watch Unwatch
Sean Bennett (verified owner) –
This was so easy to install on my Ender 3 Pro. It looks intimidating but it was a breeze. It took less than 10 minutes to install the hardware. The Firmware was so simple to flash and I have never worked with firmware before. The instructions are easy to read and follow with plenty of links to videos. The Z limit video was the best. The calibration took me a little longer, but that due to me missing a page in the instructions. Once I found what I missed I finished up the calibration in about 5 minutes. I like that I did not have to mess with my controlled board for any connections. I used the external power supply to make it even easier. Now I want one for my CR-10S. And an EZ board Lite when they become available. I passed your website on to a friend who has a small 3d printing business and is looking for quality upgrades.
(0) (0) Watch Unwatch
Nukuqua (verified owner) –
Cant fault the ezabl, took no more than 40 min to insall, works like a charm. Highly recommended. Only took 28 days to arrive to Australia.
Thanks TH3D
(0) (0) Watch Unwatch
Alex Eckman (verified owner) –
Great product, works well and easy to install!
(0) (0) Watch Unwatch
orders-4044 (verified owner) –
I have had great luck with the ABL on my two Prusa printers and was looking for something for my Tornado. At first I thought about a mechanical sensor but really liked how accurate my Prusas are. So I purchased this and WOW! Absolutely accurate. I did not use their firmware because I have a Prusa extruder on my Tornado and made too many changes to the firmware. So after spending about an hour getting the firmware to work with this ABL I was up and running. I also really like the start script they recommend using, it is well thought out just like their EZABL! I can easily recommend this to anyone.
(0) (0) Watch Unwatch
Darrin Lee (verified owner) –

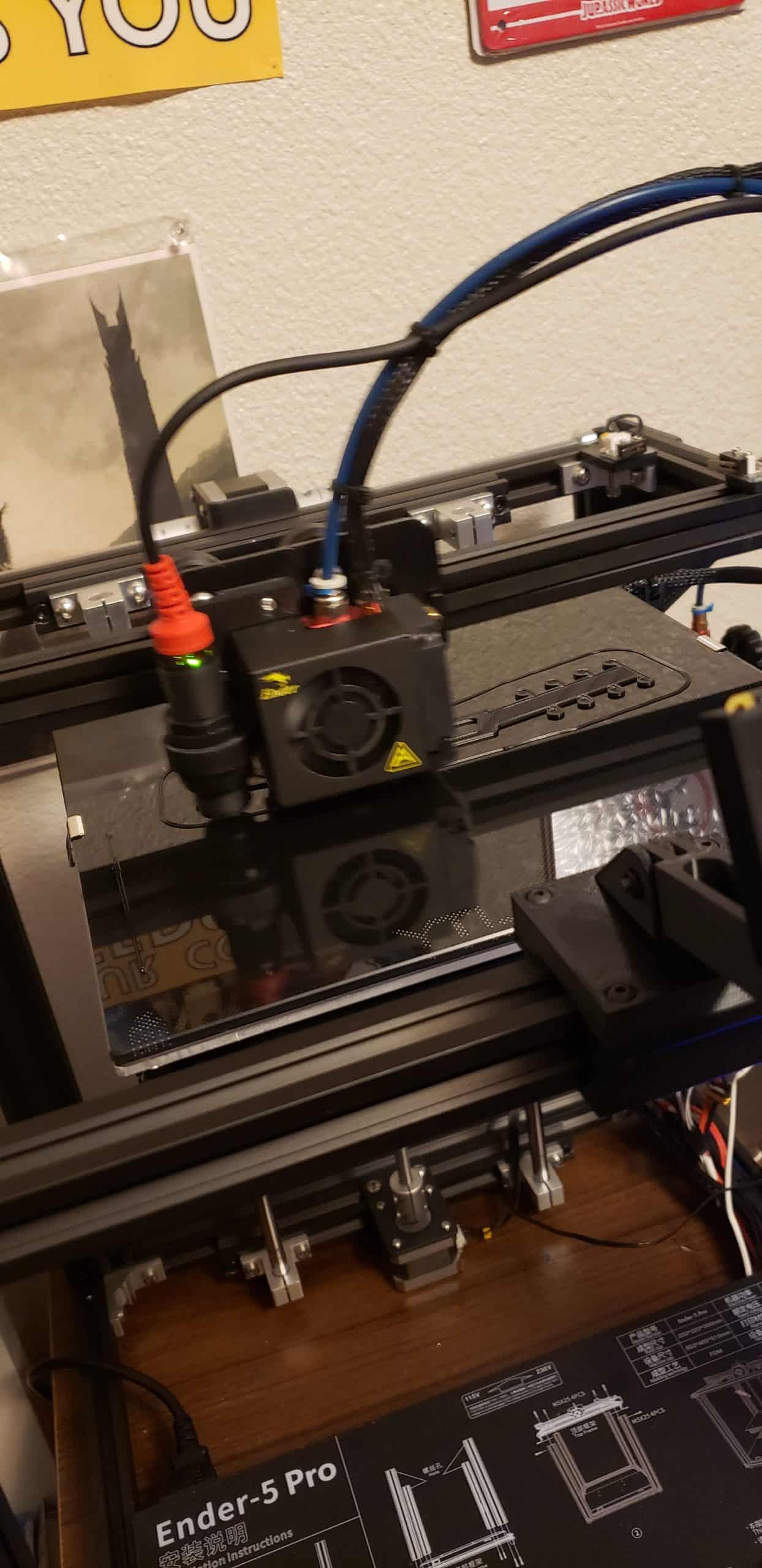

I have an Ender 5, and have been printing for a little over a year with it, and I wish this EZABL would have been my first upgrade. I now can crank out prints without wasting time trying to level my printer all the time, and still having some areas that just don’t stick very well. Shipping was super quick, and I followed all the directions and videos. The only issue I ran into was missing the part about adding new gcode into my Cura. As soon as I did that, everything has worked seamlessly. Do yourself a favor and get one of these. You will not regret it.
(0) (0) Watch Unwatch
badadz (verified owner) –
Recommend
1. Printing the “EZABL Sensor Placement Assistant” from Thingiverse.
2. A dot of glue on the adjustment screw after you get the right offset (Vibration was changing mine over time)
3. Solid bed mounts
I have tried the mini and full and think the full was more accurate but maybe that was just me.
(0) (0) Watch Unwatch
jjflugum –
Couldn’t make it any easier
(0) (0) Watch Unwatch
Joseph Galloway (verified owner) –
This works very well. The setup was easy with the thorough installation guide & videos. I really appreciate this product. Great work!
(0) (0) Watch Unwatch
Elliot Moore (verified owner) –
TLDR: don’t waste your time with other bed leveling products or doing it yourself. Get this.
Ever know someone who tried to get into 3D printing on the cheap? Yep, that was me. I was the guy who tried mesh bed leveling and the cheap touch probes. Both worked for a while but eventually I had to babysit every print. I finally made the wise decision of buying the EZABL Pro. It’s night and day. Now my hobby is 3D Printing, not the 3D printer!
Buy it. You’ll burn through the equivalent cost of filament using something else.
(0) (0) Watch Unwatch
Perry Hunter (verified owner) –
Slightly tricky to get installed and calibrated, the Z-offset instructions are no longer corr3ect for the latest Unified Firmware release, but once I got that figured out it wasn’t bad at all. This and a z-axis sync belt for the CR-10S has made all the difference in the world, totally worth the time and money.
(0) (0) Watch Unwatch
todd schisler (verified owner) –
very easy to install tuning your printer is the hard part but that has nothing to do with the kit, the resources and customer service is next to none to both tune your printer and update your firmware and install the kit very good pictures a handy manual you can download the parts they offer to support your kit are well constructed Im extremely happy with the kit I received. If your having problems more than likely it in the tune of your printer so be prepared to have to go through your printer and make adjustments but it has nothing to do with how the kit works. I had a loose bolt I would not have found that took me a couple days to find but my printer is working better than it has ever worked and that was because of all the support reference material they offer in one convenient place and the advice of there tech support. the time they take to help in support of there product is truly a testament to the company.
(0) (0) Watch Unwatch
Jon White (verified owner) –
After spending many hours trying to get another bed leveler to work on an ender 5 pro with the 4.2.2 board I finally gave up and purchased the ezabl pro. Using the th3d firmware I was printing within 30 minutes. Fantastic product with easy to follow instructions.
(0) (0) Watch Unwatch
Aaron Alfred (verified owner) –
I’ve been pulling my hair out with this darn BLTouch for months now and found out about this so I decided to give it a shot. This is hands down the best thing I’ve purchased for my 3D printer! Along with the firmware my printer is printing in a quality I have never seen come off of it before. Even decided to put the sticker over the ender logo because this machine is now a TH3D product (lol)
Photo has been removed
(0) (0) Watch Unwatch
Derek Macias (verified owner) –
I was struggling using the bltouch and other firmware and maintaining a level bed and zoffset. Combined with the solid bed mounts, this solved everything for me. And the lcd conversion with the Unified Firmware makes tuning this printer so much easier.
(0) (0) Watch Unwatch
Michel (verified owner) –
Je viens de l’installer sur mon imprimante Sunlu S8 en suivant les conseils de la Team.
C’est vraiment bluffant comme résultats la mise à niveau est ultra rapide et précise les impressions sont top.
C’est largement supérieur au BLtouch qui équipe ma Ender 3. Je pense équiper ma ender prochainement.
Un grand merci à TH3D.
(0) (0) Watch Unwatch
Patrick Euler (verified owner) –
This has been a complete change in printing for me. I had previously had many problems with my bed being warped and could not compensate for it (changed the bed a few times). After installing the EZABL I have had great first layers that are uniform and have not had any issues with any of it. Took a little bit to work things out, but after finding the right z-offset it has been outstanding. I should have gotten this a year ago and saved myself a lot of headaches!
(0) (0) Watch Unwatch
Donnie Boger (verified owner) –
After fighting a warped heat bed on my CR-10 mini I decided to bite the bullet and order the EZABL Pro. Seeing as I already updated my board to the Creality 4.2.7 and updated the firmware to the TH3D Unified. I followed Tim’s video on youtube to a “T”, recompiled the firmware, and now I’m getting perfect first layers. I’ve only been printing for 2 months now and Tim’s videos have helped me out a lot! I will be ordering 3 more EZABL kits for my other printers.
(0) (0) Watch Unwatch
Kevin Jones –
After getting a little help from Tor & Peter, I was able to get the EZABL Pro working perfectly! This is by far the best upgrade I installed on my Ender 5. Once the bed is trammed and a few checks of your machine to ensure everything is square and all the fasteners are tightened up, and you’ve updated your firmware to enable the EZABL, you’re on your way to setting it up. Not being 100% sure that I had everything correct and an issue I had with the firmware, I contacted the help center. Tor & Peter both gave me the answers I needed which helped me finish the install and setup.
I can’t recommend this product enough!!!! Don’t be like me and wait, get this ASAP for your new or existing printer to help you ensure your bed is trammed for every print.
Hats off to Tim, Tor, Peter, and the whole team at TH3D Studio!!!!
(0) (0) Watch Unwatch
Dylan Rainey (verified owner) –
I’m very impressed, got my EZABL Pro installed super easy, works great, and the dumdum and “happy Valentine’s day” stamp was a nice touch :). I’ll definitely be back in the future!
(0) (0) Watch Unwatch
wmpotts (verified owner) –
I despise the bed on my CR-10 leveling it is a nightmare. Its a slight u shape and I can never get the corners and the middle. I decided to upgrade the board and install Auto bed leveling I am a pessimist by nature so I had very little hope this would actually work as good as it is made out too. I have to say after installing it and then going back to actually read all the way through the install guide. It work and it works flawlessly.
Just don’t do what I did and forget to add the gcode to your slicer. Turns out it wont work so well if you don’t.
(0) (0) Watch Unwatch
mark.klabunde (verified owner) –
So I was using a BL-Touch and changed over to this OMG this is so much better. I do like that it’s silent and quick. Was quite easy to install on my ender 6. Ran the cable through the tube was able to push it through without any trouble. Hooked it up to the power supply and the z stop and adjusted it just like the video said to do. I like that everything you need is included with the product. Hell they even include the screwdriver to adjust the sensor 🙂 . Installed VS code didn’t have the check mark so went on the site and looked up how to install vscode and it stepped me right through. Easy pezy. Configured my settings (easy everything is commented in the firmware as to what each area does) Thanks Tim for a great product. Going to have to order a second one for the ender 3v2.
(0) (0) Watch Unwatch
mark anton (verified owner) –
I own several ezabl on different machines. They work great, every time. Tim has made the firmware east to use amd provides us with EXCELLENT instructions. Name another company that does what th3d does and they will have my business also.y only regret is not having enough friends in 3d printing to tell them about th3d.
(0) (0) Watch Unwatch
slongalphaimaging (verified owner) –
Won the sensor on a recent steam on Hot Makes thanks for sponsoring the stream received it today super easy install and setup a lot faster than my BLTouch and I feel more accurate as well thanks again
Liked it so much I bought one for my Ender 5 Plus so much faster than my BLTouch
(0) (0) Watch Unwatch
Emerson Corder (verified owner) –
An absolute must on any printer. Easy to install and calibrate. Faster than and MUCH easier to install than the BLTouch.
(0) (0) Watch Unwatch
