Creality Dual Cable LCD Adapter Board V2 – For EZBoard/V4.2.7 Board/SKR E3 Mini Boards
$11.99
This is for the EZBoard Dual Cable LCD adapter board ONLY. New V2 version features Keyed plug to prevent improper user installation.
Used to connect a Creality Dual Cable LCDs or our 12864 LCD to the EZBoard, Also works with the Creality V4.2.7 Board
- Standard – Used to connect a Creality Dual Cable LCD or our 12864 LCD to the EZBoard
- CR-20 – Used to connect the Stock CR-20 LCD to the EZBoard
Standard Version Required for the Ender 5 PLUS as well as the LCD Kit
This is for the Dual Cable LCD adapter board ONLY. New V2 version features Keyed plug to prevent improper user installation.
There are 2 versions. The CR-20 has a different LCD that requires its own adapter board. Select the correct one for your LCD/Machine above.

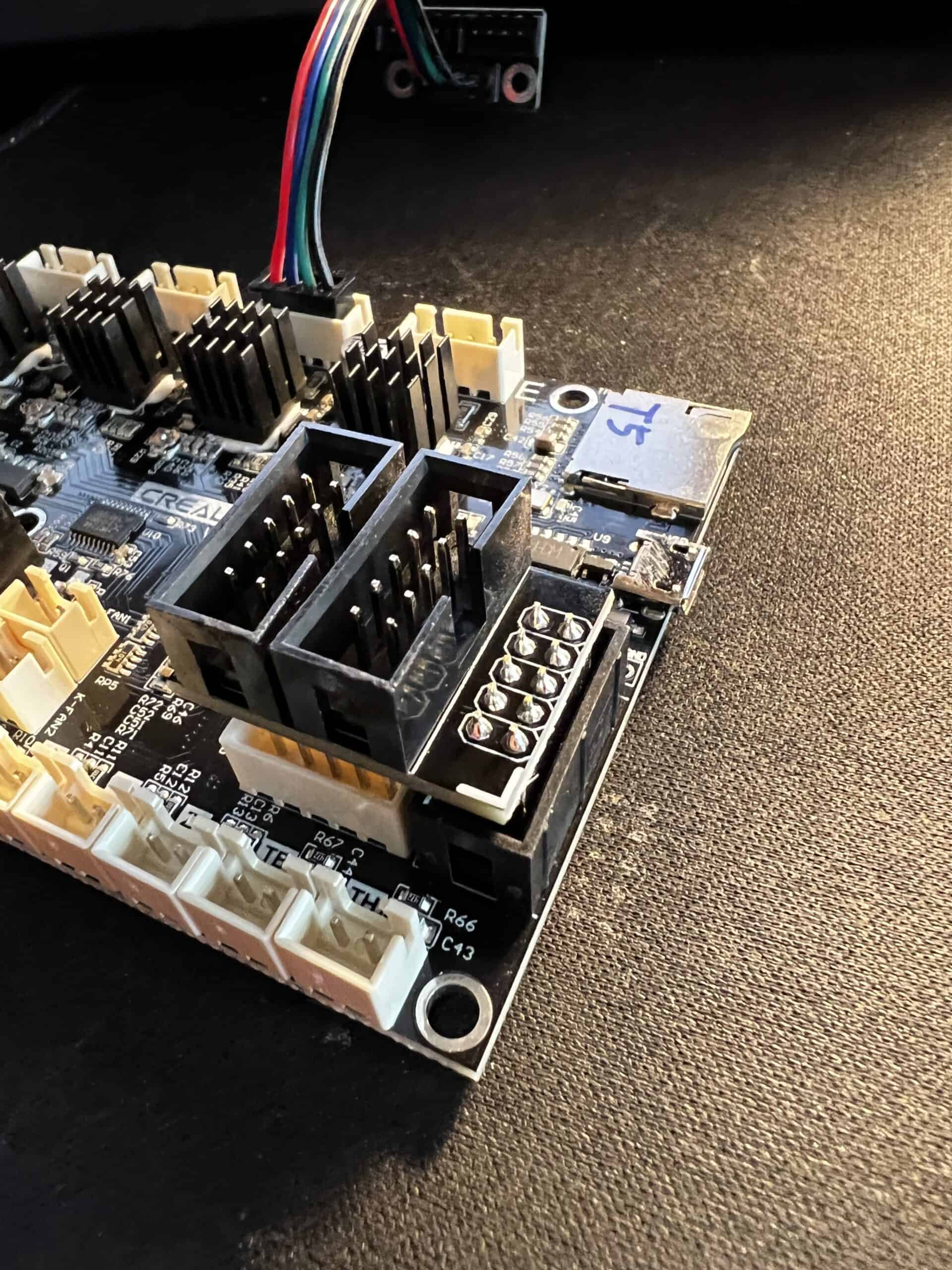

Standard version also works with other Creality drop in boards like the V4.2.2, V4.2.7, and SKR E3 Mini Series.
If you are using a V4.2.7 or some SKR boards with a BLTouch with dupont plugs instead of the JST-XH plugs you may want to also order the 10-pin extension cable to give you more clearance between the board and the LCD adapter: 10 Pin Extension Cable – 3 Inches – TH3D Studio LLC
Version Information:
- Standard – Used to connect a Creality Dual Cable LCD or our 12864 LCD to the EZBoard
- NOTE: When used with the 12864 LCD only the LCD is used, not the SD slot as the EZBoard has its own onboard SD slot.
- CR-20 – Used to connect the Stock CR-20 LCD to the EZBoard
- Revisions
- V2 (3/27/23) – Added Keyed Plug to prevent users from installing incorrectly.
- V1 – Initial Release without Keyed Plug

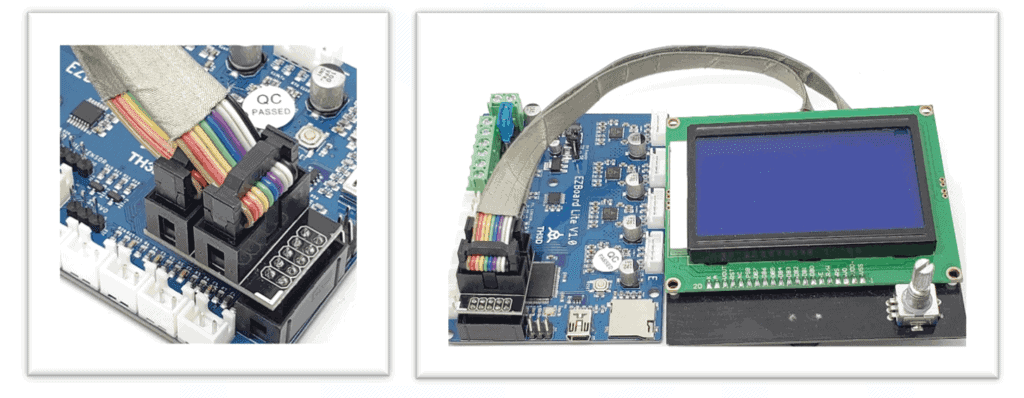

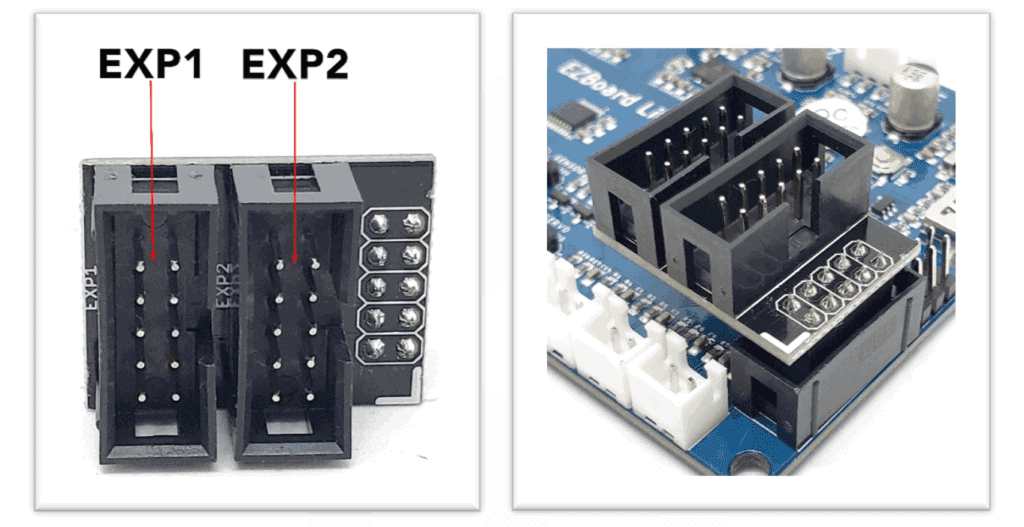

Installation Pictures (V1 Only)

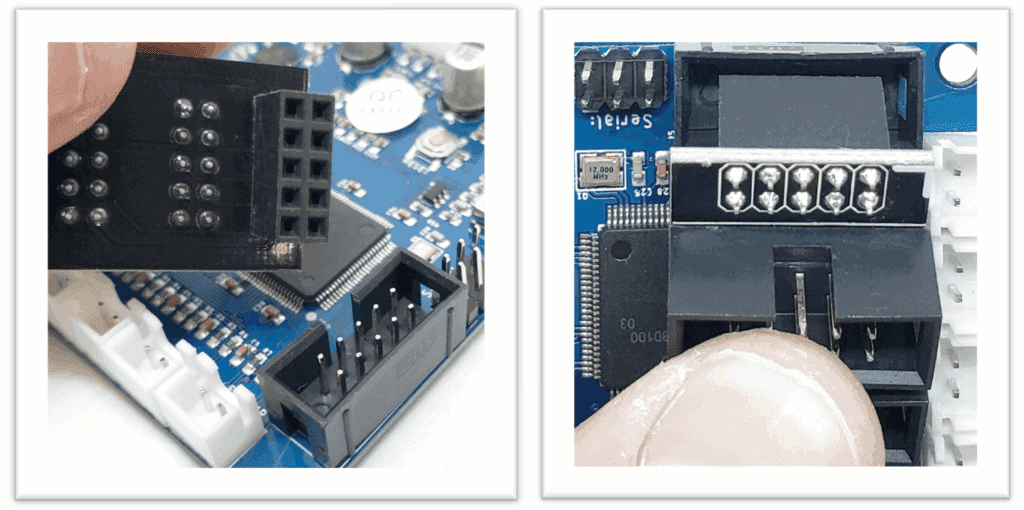

When installing the adapter board make sure to install it covering all the pins in the board header. If you do not install it as shown below the LCD will not work.
To order with the board please visit here: TH3D EZBoard
Warranty Information
3 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link. Technical support is limited to the scope of the product itself and not your entire machine.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
Share your thoughts!
Let us know what you think...
What others are saying
Related products
Question
Lex –
Would this work with a SKR Mini E3 to connect to a Creality dual cable LCD?
(1) (0) Watch Unwatch
Tim Hoogland –
We haven’t verified it with the SKR series since it was designed for use with our EZBoard.
(0) (0)
Question
Ben Epstein –
This couldn’t be used on a CR-10 to enable use of both a BL-Touch and an EZOut, would it? Do they use the same pin?
(0) (0) Watch Unwatch
Tim Hoogland –
This is only for our EZBoard control board, not the stock Creality boards. Our EZBoard supports use of a BL Touch and Filament sensor at the same time as it has dedicated headers for those sensors to connect to. This adapter board is not intended to be used with any other control board than our EZBoard product.
(0) (0)
Question
GadgetAngel (verified owner) –
Do you have the schematic for this board? I just hooked this board up to an SKR mini E3 Turbo and was able to connect my REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER to the SKR E3 Turbo board. Of course no SD support which is what I expected, but I have a Marlin screen that is connected to the SKR mini E3 Turbo without the screen beeping at me while Marlin boots up. So to answer the question from LEX, yes it will work on the SKR mini series of boards
(0) (0) Watch Unwatch
Tim Hoogland –
Hi there. We do not share the schematic for this board as we do not want the Chinese copying our products as they have done in the past. We only market and sell this board for our EZBoard line of boards. We have not tested the adapter PCBs with any other board than our EZBoard so we cannot guarantee or support them when used with anything other than our EZBoard line of boards.
(0) (0)
Question
tomkatstrut –
Is there an ETA on when there will be more stock of this item?
(0) (0) Watch Unwatch
Tim Hoogland –
We should have them restocked mid-March. If you want to be notified of a restock just sign in to your TH3D account and then add it to your wishlist to get an email when we add more stock.
(0) (0)
Question
Jeff Milkey (verified owner) –

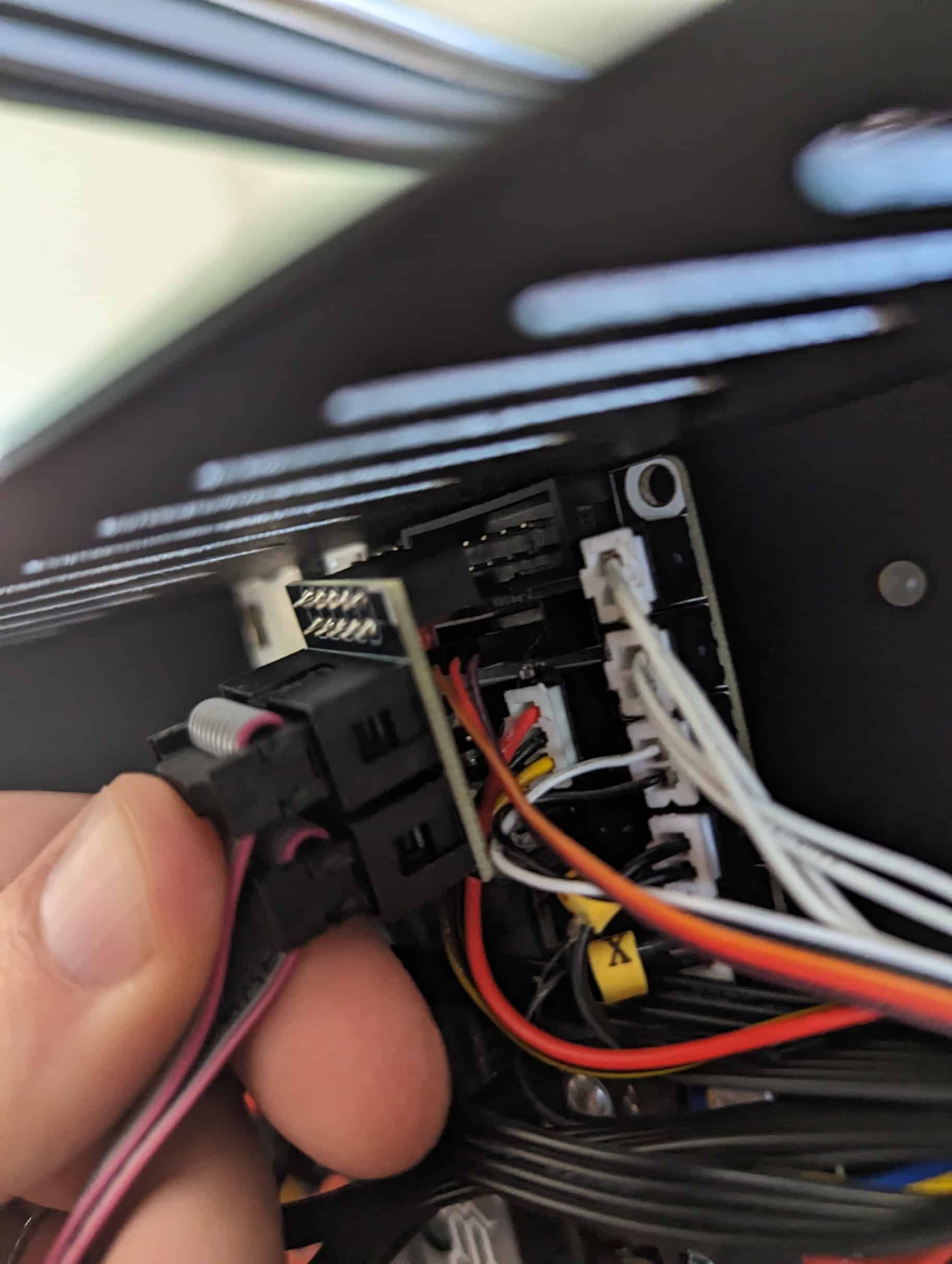

How to install on a V4.2.7 Motherboard? It appears to interfere with the BL Touch connector port…
(1) (0) Watch Unwatch
Tim Hoogland –
You would need to use a JST-XH plug on the bltouch header instead of duponts as they are lower profile (or use an EZABL that doesn’t need it) or we have a LCD extension plug here: 10 Pin Extension Cable – 3 Inches
(1) (0)
Question
Brad Mikulskis (verified owner) –
Can a disclaimer be added to this item that the ribbon extension cable may need to be purchased as well if using a board where the BLTouch pins sit below the LCD pins (ie SKR Mini E3 V3.0). I bought the Dual Cable adapter and now I had to place another order for the extension cable. May help future customers from having to order twice like I have.
(0) (0) Watch Unwatch
Tim Hoogland –
We added a note. The issue with your setup is that you are using Dupont plugs in a JST connector. If you put the correct plug on your BLTouch cable the adapter board will not interfere with your BLTouch connectors.
(0) (0)
Question
grimmjow_pantera27 –
I have an older CR-10S with a dual LCD rainbow cable. Will this adapter work on a SKR Mini E3 v2 board?
(0) (0) Watch Unwatch
Tim Hoogland –
Yes it will.
(0) (0)
