Micro Swiss NG™ Direct-Drive Extruder for Creality Ender 5/Ender 5 Pro/Ender 5 Plus Printers

Description

Added Bonus EXCLUSIVE to TH3D Customers

Includes a free 3 month or $5 off 1 year of our Unified 2 Firmware package. Coupon will be emailed to you after checkout and will work on ANY Unified 2 Firmware Package in our store here: https://www.th3dstudio.com/product-category/unified-2-firmware/

Compatible With:

• Ender 5
• Ender 5 Pro
• Ender 5 Plus

Features and Specs

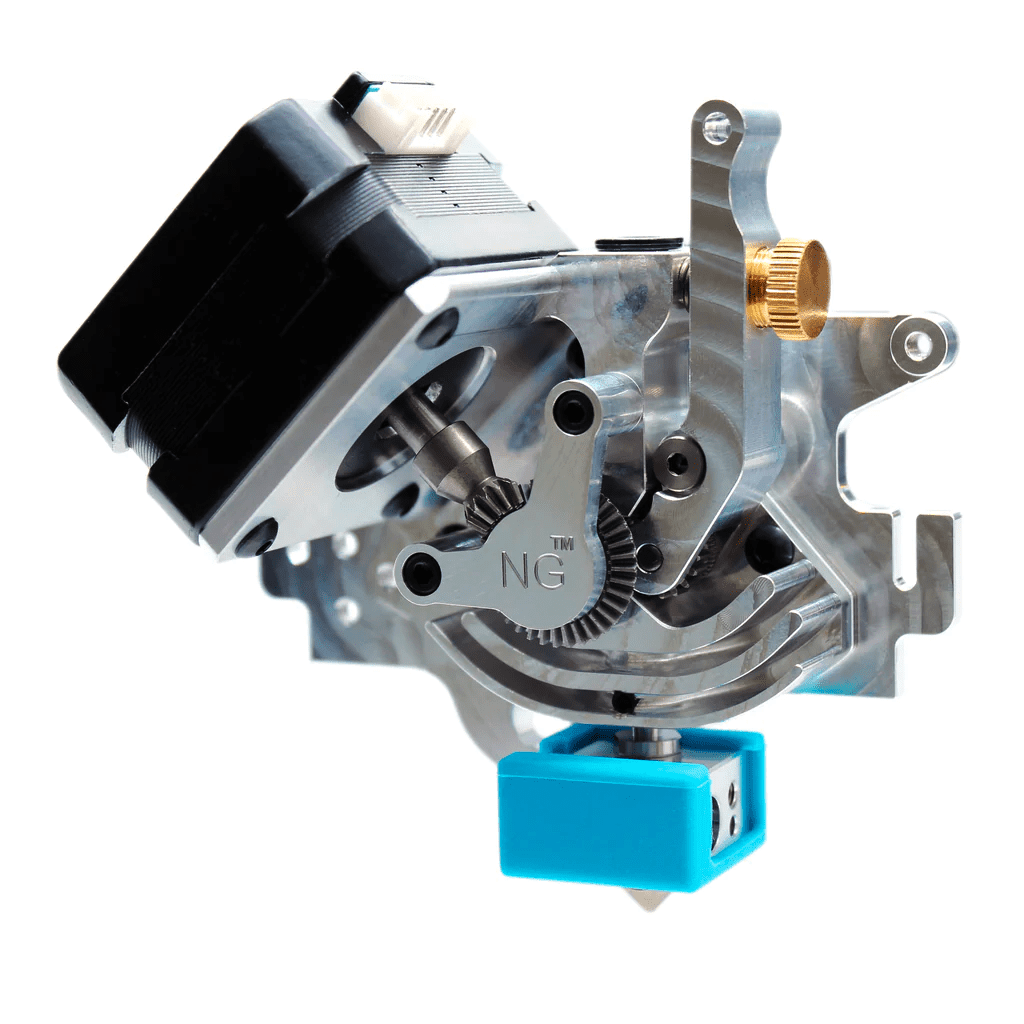

TH3D is proud to offer the Micro Swiss NG™ Direct-Drive extruder! This all-in-one extruder and hot-end package is a great upgrade for those looking for a high-quality, precision-machined, and durable direct-drive and hot-end solution for your Creality printer.

With the Bevel Gear design, Micro Swiss is able to achieve the industry-shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low-overhang design.  This further increases system rigidity.

Features:

• Lightweight
• 3:1 Gear ratio
• Adaptable to wide range of 3D Printers
• Hardened steel, precision cut Dual Gear drive
• Industry-shortest, highly constrained, TwinClad XT™ plated filament path
• Bevel Gear system allows for a low-overhang extruder mount
• Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

What’s in the box?

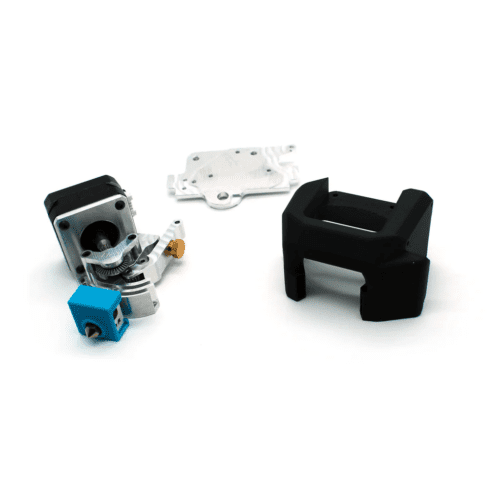

Main Components:

• 1x Master Extruder Assembly
• 1x Adaptation plate
• 1x Stepper motor
• 1x Fan Shroud
• 1x Custom extension cable
• 1x Hotend assembly

Hardware:

• 1x Eccentric nut
• 1x M5 x .8 x 30mm CAP SCREW
• 1x 5mm ID 10mm OD Washer
• 1x M5 x .8 Nylon Lock Nut
• 2x M5 x .8 x 20mm Nylon Patch CAP SCREWs
• 4x M2.2 x 8mm Thread Forming Screw for Plastic
• 4x M3 x 12mm Thread Forming Screw for Plastic
• 1x 7mm spanner wrench
• 1x 1.5mm Allen wrench
• 5x Zip Ties

Kit-Exclusive Components:

Some kits may include additional brackets or hardware depending on the printer model’s needs. For example, some kits include printed brackets to assist with managing the filament path (PTFE tubing).

Installation Guides and Documentation

INSTALLATION GUIDES:

• NG™ Direct Drive Extruder for CR-10/Ender 3 Printers (Micro Swiss)
• NG™ Direct Drive Extruder for Ender 5/Ender 5 Pro/Ender 5 Plus Printers (Micro Swiss)

VIDEO GUIDES:

• By John at Tripod’s Garage (CR-10/Ender 3)
• By Daniel at ModBot (Ender 5/Pro/Plus)

Files and Downloads

NG™ Extruder for CR-10/Ender 3 Printers:

• Printable shrouds and brackets (Micro Swiss via Thingiverse)
• STEP file (Micro Swiss)
• G-Code to set E-Steps (Micro Swiss)

NG™ Extruder for Ender 5/Ender 5 Pro/Ender 5 Plus Printers:

• Printable shrouds and brackets (Micro Swiss via Thingiverse)
• STEP file (Micro Swiss)
• G-Code to set E-Steps (Micro Swiss)
