TH3D Upgraded Micro Swiss NG Ducts – 5015/4010 Fans & EZABL Built-in – ABS
$11.99
-
These ducts are improved ducts we made to make mounting different fans and/or EZABL sensors to the NG extruders easier.
| Quantity | Discount | Price |
|---|---|---|
| 4-10 | 10% | $10.79 |
| 11-Unlimited | 15% | $10.19 |
Description
We also have the STL files here for them: https://www.th3dstudio.com/product/th3d-upgraded-microswiss-ng-ducts-5015-4010-ezabl-built-in-stl-download/
These are PRINTED ON DEMAND so it may take 1-2 days for the order to ship. These will be printed in Black ABS.
Ender 5/Ender 5 Pro/Ender 5 Plus
With the 5015 fan option you will likely need to move the X endstop to the left about 5mm to prevent the fan duct from hitting the printer frame. You will likely also need to change the X bed size in the firmware -5 mm on X and in your slicer.
EZABL Sensor Offsets

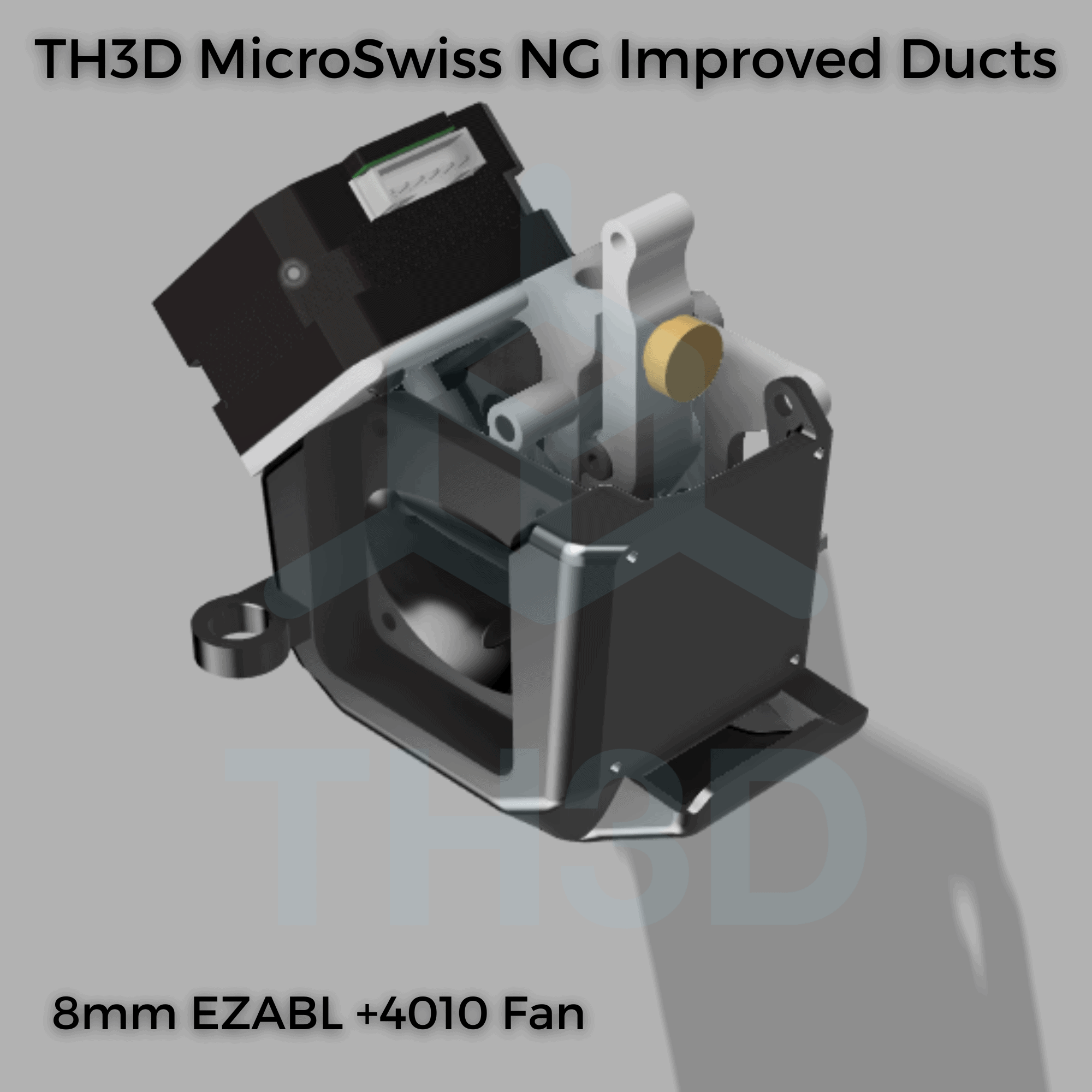

- MS NG 8mm + 4010 Fan
- X -25.5, Y -45

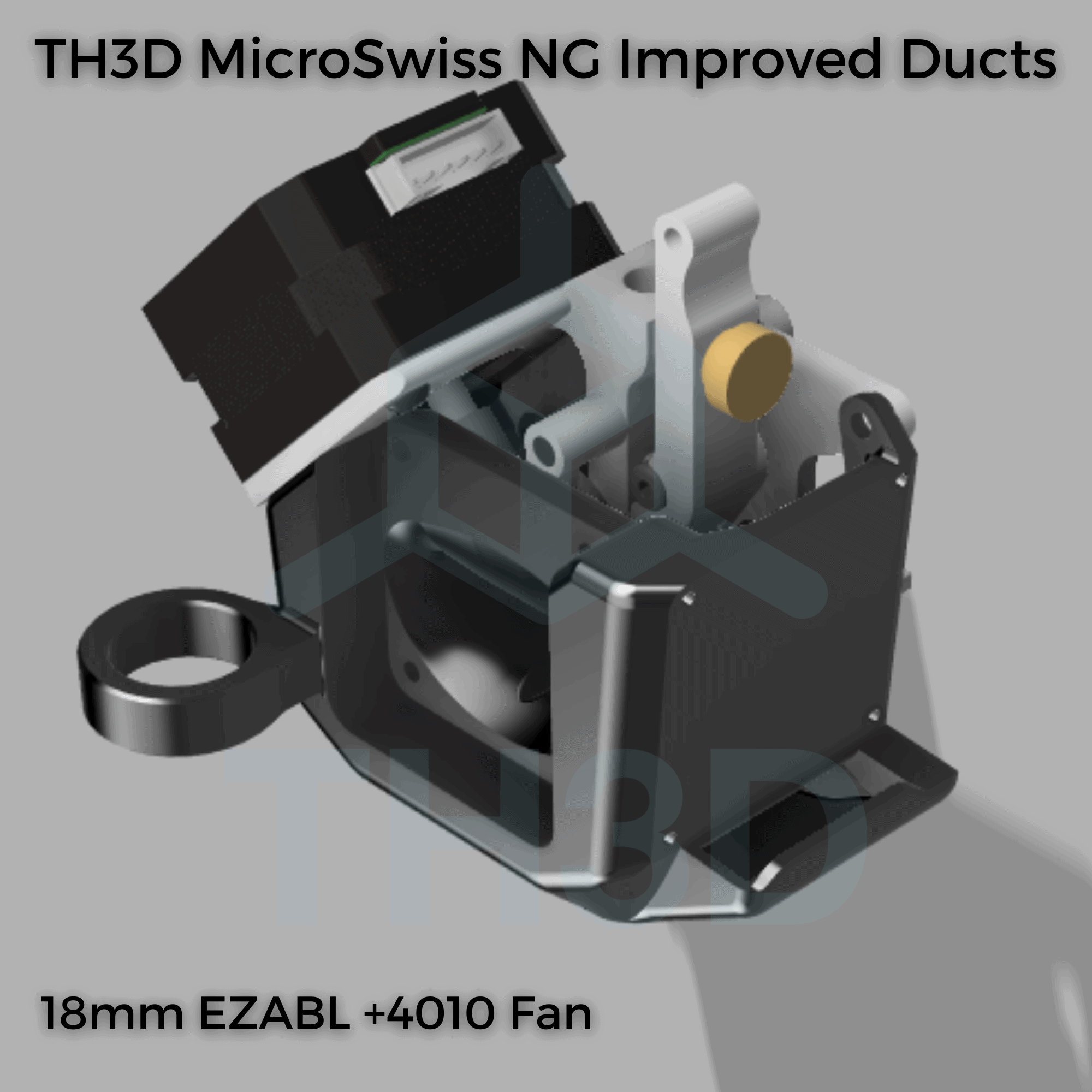

- MS NG 18mm + 4010 Fan
- X -31, Y -45

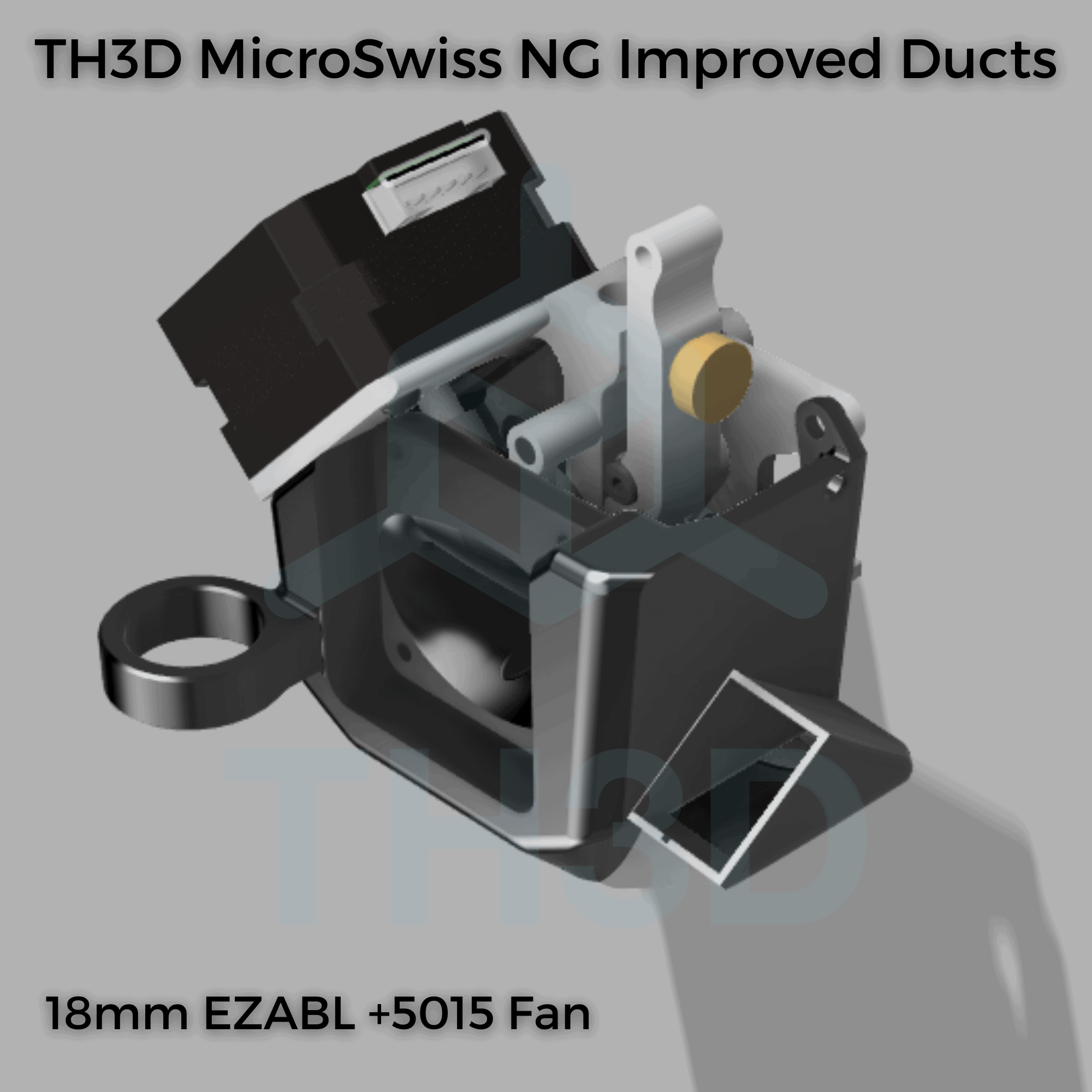

- MS NG 18mm + 5015 Fan
- X -31, Y -45

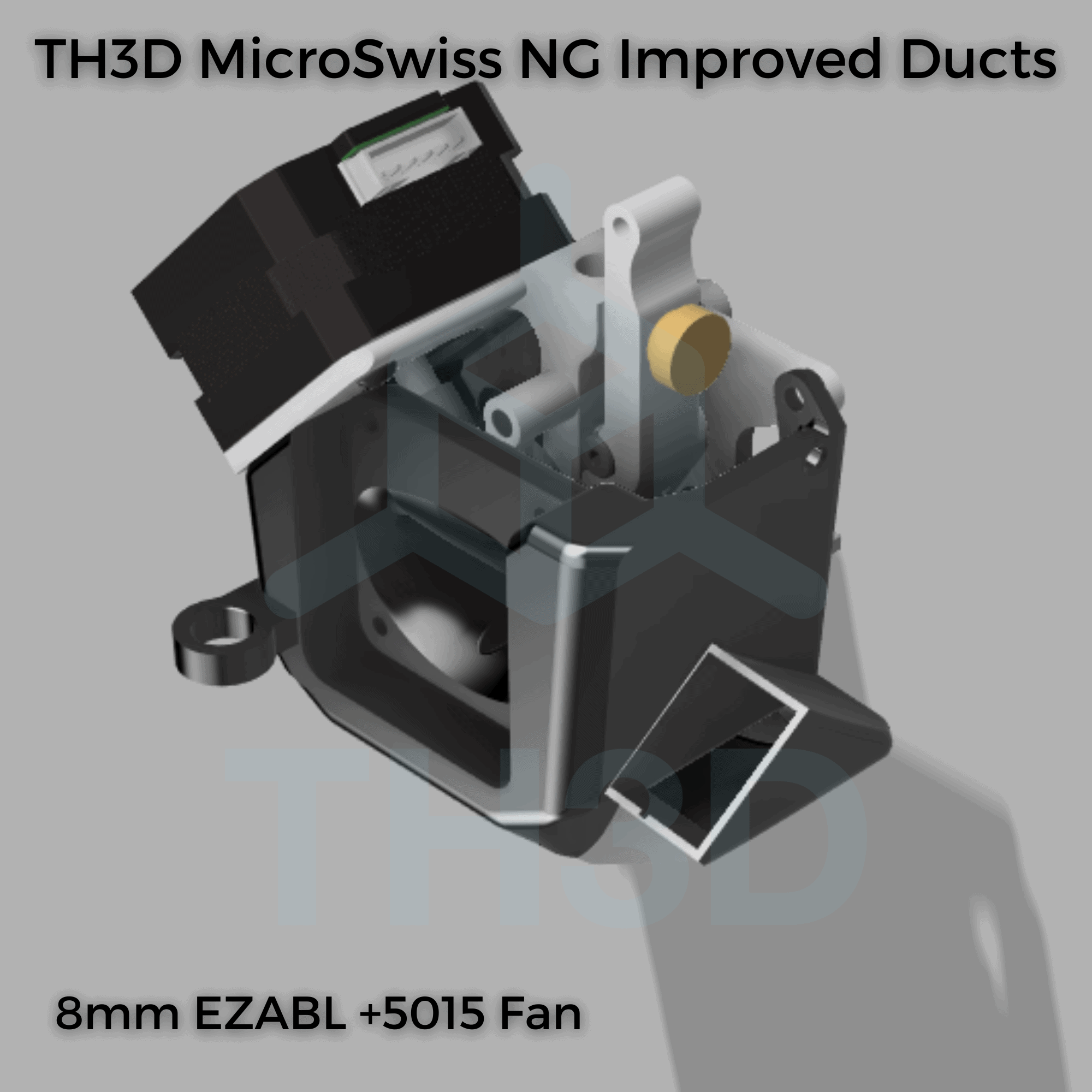

- MN NG 8mm + 5015 Fan
- X -25.5, Y -45
Change Log
V1 – Initial release
V1.1 – Updated all probe mounts with better reinforcement.
Reviews (8)
8 reviews for TH3D Upgraded Micro Swiss NG Ducts – 5015/4010 Fans & EZABL Built-in – ABS
Add a review
Additional information
| Weight | 4 oz |
|---|---|
| Dimensions | 5 × 5 × 4 in |
| Duct Version | 5015 Fan, 18mm EZABL + 5015 Fan, 18mm EZABL + 4010 Fan, 8mm EZABL + 4010 Fan, 8mm EZABL + 5015 Fan |
| Made In | 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
| Warranty Length | 6 Months |
Related products
johnkelly.uk (verified owner) –
Well they would be well made wouldn’t they. They have that solid feel suggesting they will last a long time. The fans fitted perfectly and the whole thing attached easily to the backplate. I’m very pleased.
Edward Burks (verified owner) –
Fits and works perfectly. Incorporating the ABL holder to the fan shroud instead of a screw on bracket is the cleanest way.
Craig Williams (verified owner) –
As usual, the folks at TH3D were great to work with and shipped my items out fast. The ABS duct with EZABL mount worked great on my Ender 6. The only flaw i found was the middle section of the duct for directing the air over the hot end was a bit warped like it hadn’t been supported properly during the print and that prevented the part from fully seating as it hit the hot end cooling fins. Nothing a little grinding/sanding couldn’t fix and the part installed great otherwise!
Tim Hoogland –
Hi there Craig, if there is a defect in a part we printed that we missed in QC please send a pictures of the issue and we’ll replace it under warranty if it is defective.
Albert P. (verified owner) –
Nicely designed, great price
Michael V. (verified owner) –
Fits like a glove, made the upgrade process painless.
sray53 (verified owner) –
My Creality Ender 5 Pro hot end assembly decided to give-up when I needed to provide some PLA white coasters for a family gathering. I had not used the printer in a couple years due to some family medical issues. Well it sorta printed, many strings and hot/burn indications. Since I had purchased may items from TH3D and was always satisfied. Thought I’d try a Microswiss hotend assembly for rails. Not in stock, purchased one from another supplier, just no EZABL attachment capability, so back to TH3D for the correct part. Purchased a few other items to help the cause and all arrived in a coupe days. Installed and up and running. Established all the correct printing parameters and ALL is great.
Thanks TH3D!
Happy customer!!!
Nial M. (verified owner) –
Anonymous (verified owner) –
Good quality printed part, some fitment/ sanding/ expanding holes needed. Overall great part.
Tim Hoogland –
We’re always working on improving our parts. Just shoot us a message with the details and pictures to show what needs to be updated and we can see what we can do.
