Creality Dual Cable LCD Adapter Board – For EZBoard/V4.2.7 Board/SKR E3 Mini Boards
$9.99
This is for the EZBoard Dual Cable LCD adapter board ONLY.
Used to connect a Creality Dual Cable LCDs or our 12864 LCD to the EZBoard, Also works with the Creality V4.2.7 Board
- Standard – Used to connect a Creality Dual Cable LCD or our 12864 LCD to the EZBoard
- CR-20 – Used to connect the Stock CR-20 LCD to the EZBoard
Standard Version Required for the Ender 5 PLUS as well as the LCD Kit
This is for the Dual Cable LCD adapter board ONLY.
There are 2 versions. The CR-20 has a different LCD that requires its own adapter board. Select the correct one for your LCD/Machine above.
Standard version also works with other Creality drop in boards like the V4.2.2, V4.2.7, and SKR E3 Mini Series.
If you are using a V4.2.7 or some SKR boards with a BLTouch with dupont plugs instead of the JST-XH plugs you may want to also order the 10-pin extension cable to give you more clearance between the board and the LCD adapter: 10 Pin Extension Cable – 3 Inches – TH3D Studio LLC
Version Information:
- Standard – Used to connect a Creality Dual Cable LCD or our 12864 LCD to the EZBoard
- NOTE: When used with the 12864 LCD only the LCD is used, not the SD slot as the EZBoard has its own onboard SD slot.
- CR-20 – Used to connect the Stock CR-20 LCD to the EZBoard
Installation Pictures

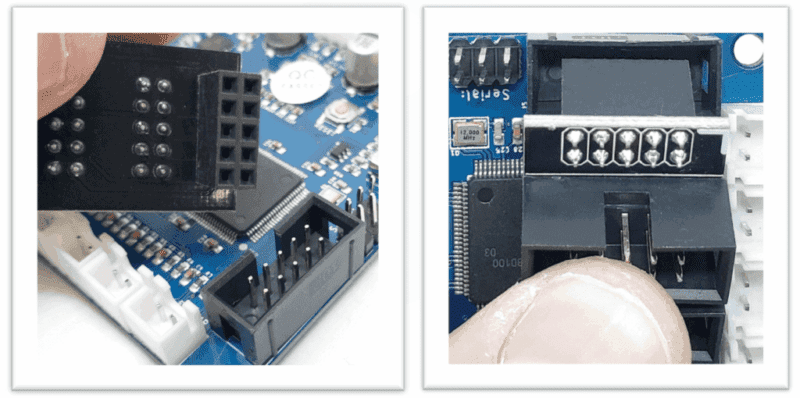

When installing the adapter board make sure to install it covering all the pins in the board header. If you do not install it as shown below the LCD will not work.
To order with the board please visit here: TH3D EZBoard
Warranty Information
3 Months Warranty - Our warranty covers any and all defects with the product. If your product fails or has problems within the warranty period you can contact our support team by using the Contact Us link.
Damage/Failure due to improper installation, improper usage, failure resulting from an issue with the machine the product is installed on, 3rd party products connected to our product, and/or modification of the product are not covered under warranty.
