Micro Swiss NG™ Direct-Drive Extruder for Creality CR-10/Ender 3 Printers

1 review|4 answered questions

$119.99

18 users have this item in wishlist

Only 5 left in stock

Description

Added Bonus EXCLUSIVE to TH3D Customers

Includes a free 3 month or $5 off 1 year of our Unified 2 Firmware package. Coupon will be emailed to you after checkout and will work on ANY Unified 2 Firmware Package in our store here: https://www.th3dstudio.com/product-category/unified-2-firmware/

Compatible With:

  • CR-10
  • CR-10S
  • CR-10-S5
  • CR-10-S4
  • Ender 3
  • Ender 3 Pro
  • Ender 3 V2
  • Sunlu S8
  • Sunlu S8 Pro

Features and Specs

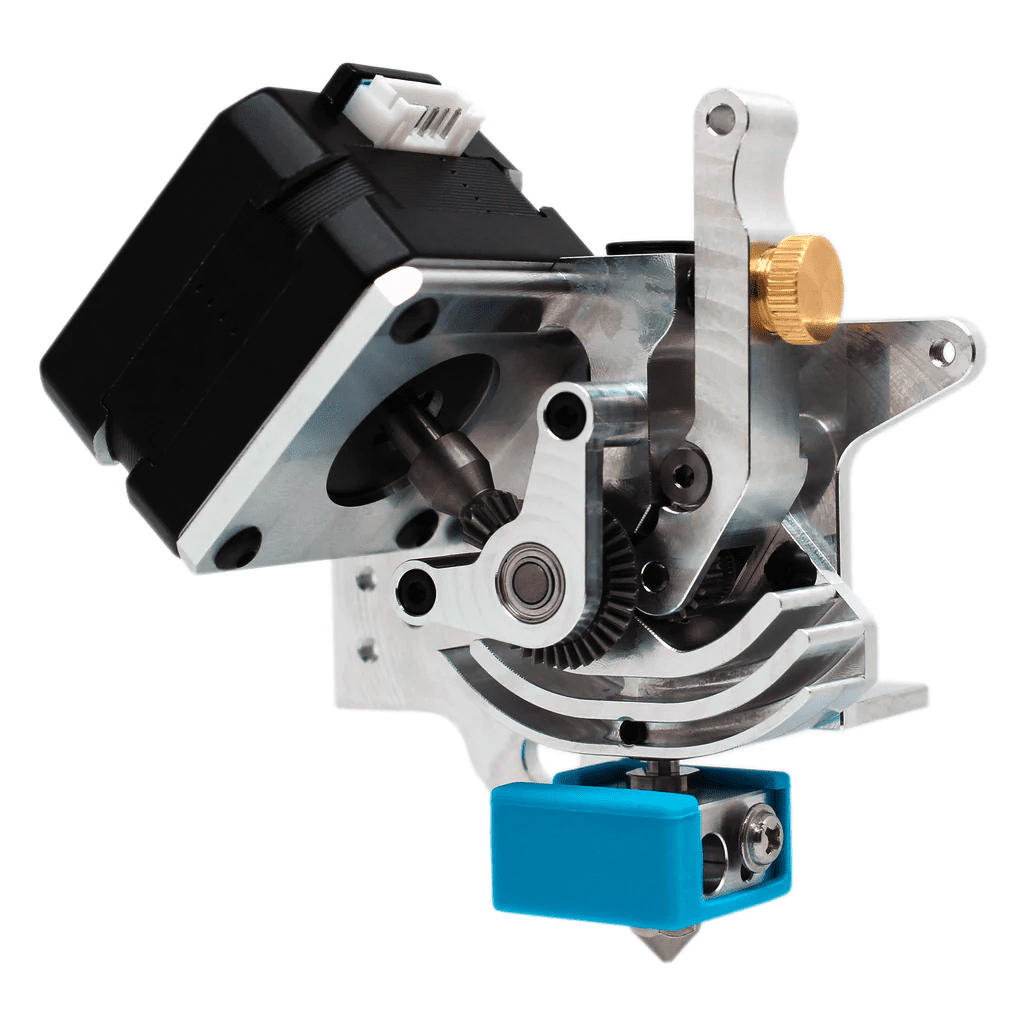

TH3D is proud to offer the Micro Swiss NG™ Direct-Drive extruder! This all-in-one extruder and hot-end package is a great upgrade for those looking for a high-quality, precision-machined, and durable direct-drive and hot-end solution for your Creality printer.

With the Bevel Gear design, Micro Swiss is able to achieve the industry-shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low-overhang design.  This further increases system rigidity.

Features:

  • Lightweight
  • 3:1 Gear ratio
  • Adaptable to wide range of 3D Printers
  • Hardened steel, precision cut Dual Gear drive
  • Industry-shortest, highly constrained, TwinClad XT™ plated filament path
  • Bevel Gear system allows for a low-overhang extruder mount
  • Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

What’s in the box?

Main Components:

  • 1x Master Extruder Assembly
  • 1x Adaptation plate
  • 1x Stepper motor
  • 1x Fan Shroud
  • 1x Custom extension cable
  • 1x Hotend assembly

Hardware:

  • 1x Eccentric nut
  • 1x M5 x .8 x 30mm CAP SCREW
  • 1x 5mm ID 10mm OD Washer
  • 1x M5 x .8 Nylon Lock Nut
  • 2x M5 x .8 x 20mm Nylon Patch CAP SCREWs
  • 4x M2.2 x 8mm Thread Forming Screw for Plastic
  • 4x M3 x 12mm Thread Forming Screw for Plastic
  • 1x 7mm spanner wrench
  • 1x 1.5mm Allen wrench
  • 5x Zip Ties

Kit-Exclusive Components:

Some kits may include additional brackets or hardware depending on the printer model’s needs. For example, some kits include printed brackets to assist with managing the filament path (PTFE tubing).

Installation Guides and Documentation

INSTALLATION GUIDES:

VIDEO GUIDES:

Files and Downloads

NG™ Extruder for CR-10/Ender 3 Printers:

NG™ Extruder for Ender 5/Ender 5 Pro/Ender 5 Plus Printers:

Additional information

Weight 16 oz
Dimensions 6 × 5 × 4 in
Made In

🇺🇸 USA

Warranty Length

6 Months

1 review for Micro Swiss NG™ Direct-Drive Extruder for Creality CR-10/Ender 3 Printers

5.0
Based on 1 review
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Customer Images

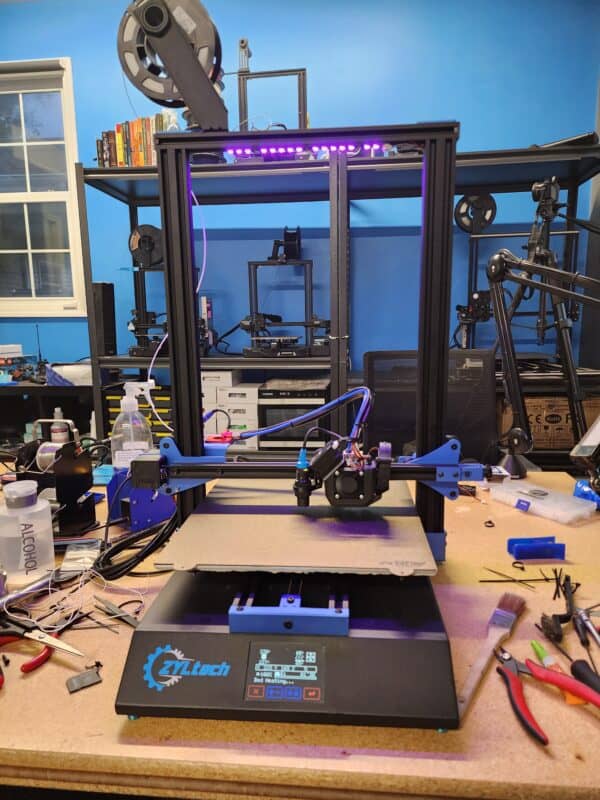

Image #1 from Tim Hoogland

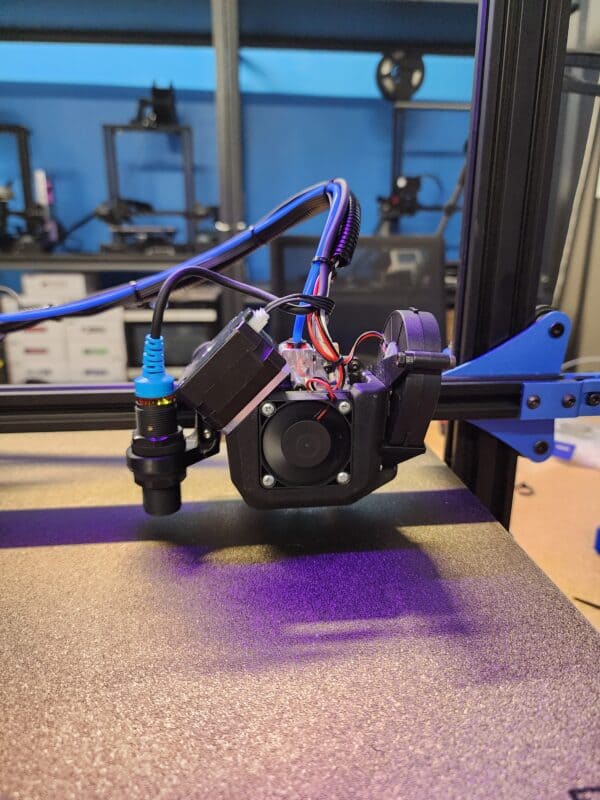

Image #2 from Tim Hoogland
Image #1 from Tim Hoogland

Tim Hoogland

Installed on my Zyltech Gear V2 with a little modifications. It's been a super reliable workhorse in our printer farm.

(1) (0)
Image #2 from Tim Hoogland

Tim Hoogland

Installed on my Zyltech Gear V2 with a little modifications. It's been a super reliable workhorse in our printer farm.

(1) (0)
Image #1 from Tim Hoogland
Image #2 from Tim Hoogland
1-1 of 1 review
  1. Avatar photo

    Installed on my Zyltech Gear V2 with a little modifications. It’s been a super reliable workhorse in our printer farm.

    Image #1 from Tim Hoogland
    Image #2 from Tim Hoogland
    (1) (0)
Add a review
You must be logged in to post a review Log In

Q & A

Will this work with an ender 6? Mark Klabunde asked on November 8, 2023

This version will not. We do not carry the Ender 6 version but you can get it direct from microswiss. You will also need to update the firmware to use their hotend kit with it as well, which we carry firmware and an LCD kit for that printer to do that. If you want details please use the contact us link at the top of the page we'll be glad to send you details over.

Tim Hoogland answered on November 8, 2023 store manager
(1) (0)
will this work with CR-10v2? Charles Maletta asked on October 15, 2023

I think it should work ok but its not officially supported. Some modification to the printer may be required to use it.

Tim Hoogland answered on October 15, 2023 store manager
(0) (0)
Does this work with a CR10s v2 pro? Eric asked on October 10, 2023

I think it should work ok but its not officially supported. Some modification to the printer may be required to use it.

Tim Hoogland answered on October 10, 2023 store manager
(0) (0)
Can this hot end handle nylon filament? Mosiah Johnson asked on August 22, 2023

Yes it can! All metal hotends are great for nylons. We also carry heatbreak upgrades for many other hotends as well. If you need more help just shoot us a message on our contact page by clicking Contact Us at the top of the page and then selecting sales for the department.

Tim Hoogland answered on August 22, 2023 store manager
(0) (0)
